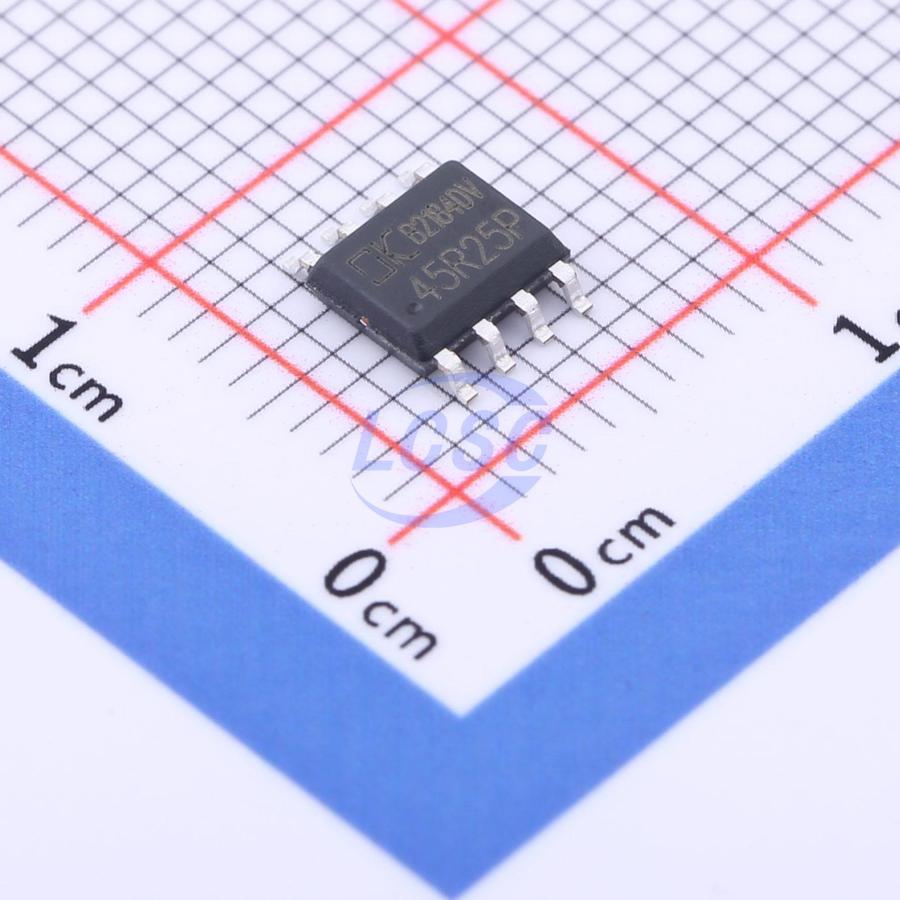

DK5V45R25P
Multi-mode compatible control 100kHz 1 25mΩ SOP-8 Power Supply Controllers, Monitors RoHS
High-performance synchronous rectification chip
- Manufacturer
- Shenzhen DongKe Semicon
- Manufacturer part #
- DK5V45R25P
- Store part #
- C557567
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,925 in stock
#C557567
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.54 | ₹72.70 |
| 50+ | ₹11.50 | ₹575.00 |
| 150+ | ₹9.98 | ₹1,497.00 |
| 500+ | ₹8.82 | ₹4,410.00 |
| 2,500+ | ₹7.91 | ₹19,775.00 |
| 4,000+ | ₹7.46 | ₹29,840.00 |
5 × ₹14.54
₹72.70
excl. GST
₹85.79 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
DK5V45R25P
₹72.70 for 5 + GST
Specifications
- MOS Breakdown Voltage
- 45V
- Function
- Multi-mode compatible control
- Frequency - Switching
- 100kHz
- Switch Tube (Built-In/External)
- Built-in
- Number of Channels
- 1
- RDS(on)
- 25mΩ
- Operating Temperature
- -25℃~+120℃
- Operating Voltage
- 5V~6V
- Turn-Off Delay
- 50ns
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.124 g
Overview
DK5V45R25P is a simple, high-efficiency synchronous rectification IC. It integrates a 45V power NMOS internally, significantly reducing diode conduction losses, improving overall system efficiency, and replacing equivalent Schottky rectifier diodes currently on the market. DK5V45R25P comes in an SOP-8 package. DK5V45R25P is a simple, high-efficiency 3-pin synchronous rectification IC. In 5V low-side applications, VCC is connected directly to the positive output terminal with no external components required, significantly reducing the conduction losses of conventional Schottky diodes and improving overall system efficiency.
Applications
- USB charger
- Adapter
- LED driver
Key features
- Ultra-low VF
- Ultra-low temperature rise
- Integrated 45V 25mΩ power NMOS
- Supports DCM and QR operation modes
- Self-powered, no external supply required
- Intelligent detection system, no front-end sync signal needed
- Improved EMI/C performance
- Direct drop-in replacement for Schottky diodes
- No external components required
