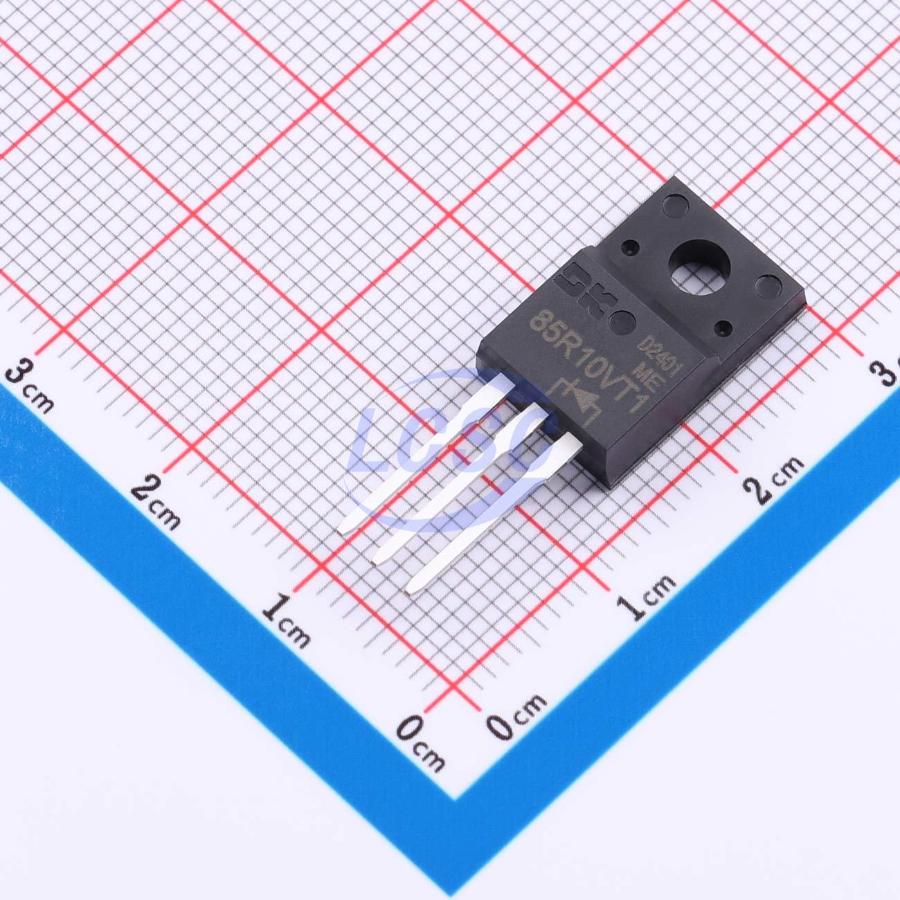

DK5V85R10VT1
300kHz 1 10mΩ TO-220F Power Supply Controllers, Monitors
- Manufacturer
- Shenzhen DongKe Semicon
- Manufacturer part #
- DK5V85R10VT1
- Store part #
- C53183646
- Package / case
- TO-220F
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C53183646
Stock & price checked 23 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹99.74 | ₹99.74 |
| 10+ | ₹79.58 | ₹795.80 |
| 50+ | ₹69.60 | ₹3,480.00 |
| 100+ | ₹59.42 | ₹5,942.00 |
| 500+ | ₹53.56 | ₹26,780.00 |
| 1,000+ | ₹50.53 | ₹50,530.00 |
1 × ₹99.74
₹99.74
excl. GST
₹117.69 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
DK5V85R10VT1
₹99.74 for 1 + GST
Specifications
- MOS Breakdown Voltage
- 85V
- Frequency - Switching
- 300kHz
- Switch Tube (Built-In/External)
- Built-in
- Number of Channels
- 1
- RDS(on)
- 10mΩ
- Operating Temperature
- -40℃~+150℃
- Operating Voltage
- 85V~265V
- Turn-Off Delay
- 20ns
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.4 g
Overview
DK5V85R10VT1 is a simple and efficient synchronous rectification IC featuring only two functional pins, A and K, corresponding to the anode and cathode of a Schottky diode. The IC integrates an 85V power NMOS transistor internally, significantly reducing diode conduction losses and improving overall system efficiency, serving as a drop-in replacement for Schottky rectifier diodes of similar specifications available on the market. The device is available in a TO-220F package.
Key features
- Flyback PSR/SSR applications
- Ultra-low VF
- Ultra-low temperature rise
- Integrated 85V 10mΩ power NMOS
- CCM, DCM & QR mode operation
- Self-powered technology, no external supply required
- Intelligent detection system, no front-end sync signal required
- Improved EMC performance
- Halogen-free and RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DK5V85R25VT1#C53183644Shenzhen DongKe Semicon · TO-220F | Shenzhen DongKe Semicon | TO-220F | 5 | ₹65.41 · 5 in stock | View |
 | DK5V85R15VT1#C53183645Shenzhen DongKe Semicon · TO-220F | Shenzhen DongKe Semicon | TO-220F | 22 | ₹76.06 · 22 in stock | View |
 | DK5V100R10VT1#C53183650Shenzhen DongKe Semicon · TO-220F | Shenzhen DongKe Semicon | TO-220F | 34 | ₹116.23 · 34 in stock | View |
 | DK5V45R10VT1#C53183642Shenzhen DongKe Semicon · TO-220F | Shenzhen DongKe Semicon | TO-220F | 5 | ₹73.11 · 5 in stock | View |
 | DK5V100R25VT1#C53183647Shenzhen DongKe Semicon · TO-220F | Shenzhen DongKe Semicon | TO-220F | 3 | ₹71.30 · 3 in stock | View |
