Shenzhen DongKe SemiconDatasheet (PDF)

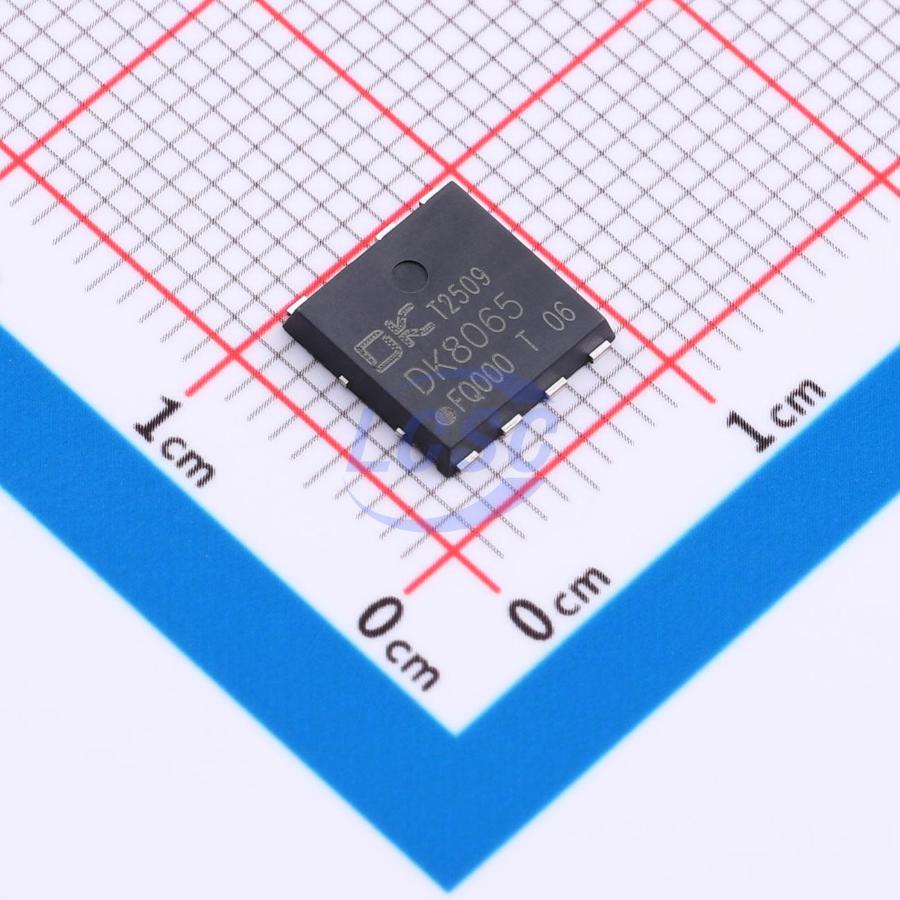

DK8065
6A 25kHz~200kHz 3W 7.5V~60V 700V Flyback PDFN-8(8x8) AC DC Converters, Offline Switchers
PDFN-8(8x8)RoHSActive
- Manufacturer
- Shenzhen DongKe Semicon
- Manufacturer part #
- DK8065
- Store part #
- C53183689
- Package / case
- PDFN-8(8x8)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,820 in stock
#C53183689
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹138.81 | ₹138.81 |
| 10+ | ₹115.35 | ₹1,153.50 |
| 30+ | ₹102.31 | ₹3,069.30 |
| 100+ | ₹87.75 | ₹8,775.00 |
| 500+ | ₹81.25 | ₹40,625.00 |
| 1,000+ | ₹78.41 | ₹78,410.00 |
1 × ₹138.81
₹138.81
excl. GST
₹163.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
DK8065
₹138.81 for 1 + GST
Specifications
- Output Current
- 6A
- Frequency - Switching
- 25kHz~200kHz
- Pd - Power Dissipation
- 3W
- Voltage - Supply
- 7.5V~60V
- Voltage - Breakdown
- 700V
- Topology
- Flyback
- Features
- Soft-start;Over Voltage Protection;Overtemperature protection (OTP);Over Current Protection
- Working Mode
- QR
- Feedback System
- Secondary-Side Feedback
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.68 g
Overview
This device is a highly integrated quasi-resonant flyback AC-DC power switch IC featuring a 700V GaN HEMT. It detects the drain voltage of the power transistor and turns it on at the valley point, thereby reducing switching losses and improving EMI performance. This design greatly simplifies the design and manufacturing of flyback AC-DC converters, making it particularly suitable for applications requiring high conversion efficiency and high power density. The device incorporates comprehensive protection features, including output OVP, VCC over/under-voltage protection, OTP, open-loop protection, and output OCP.
Applications
- High power density fast chargers
- Laptop adapters
- Tablet adapters
- Set-top box adapters
- Auxiliary and standby power supplies
Key features
- HV adaptive function: supports X-capacitor discharge before the bridge, or startup via SW pin.
- Maximum switching frequency up to 200KHz.
- Standby power consumption below 50mW.
- Quasi-resonant (QR) operation mode.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DK075GRF#C53183685Shenzhen DongKe Semicon · PDFN-8(8x8) | Shenzhen DongKe Semicon | PDFN-8(8x8) | 3 | ₹197.30 · 3 in stock | View |
 | DK065GJF#C53183683Shenzhen DongKe Semicon · PDFN-8(8x8) | Shenzhen DongKe Semicon | PDFN-8(8x8) | 3 | ₹160.73 · 3 in stock | View |
 | DK065GRF#C53183684Shenzhen DongKe Semicon · PDFN-8(8x8) | Shenzhen DongKe Semicon | PDFN-8(8x8) | 3 | ₹154.33 · 3 in stock | View |
 | DK8075#C53183690Shenzhen DongKe Semicon · PDFN-8(8x8) | Shenzhen DongKe Semicon | PDFN-8(8x8) | 1,809 | ₹210.94 · 1,809 in stock | View |
 | DK075GJF#C53183686Shenzhen DongKe Semicon · PDFN-8(8x8) | Shenzhen DongKe Semicon | PDFN-8(8x8) | 176 | ₹200.62 · 176 in stock | View |
