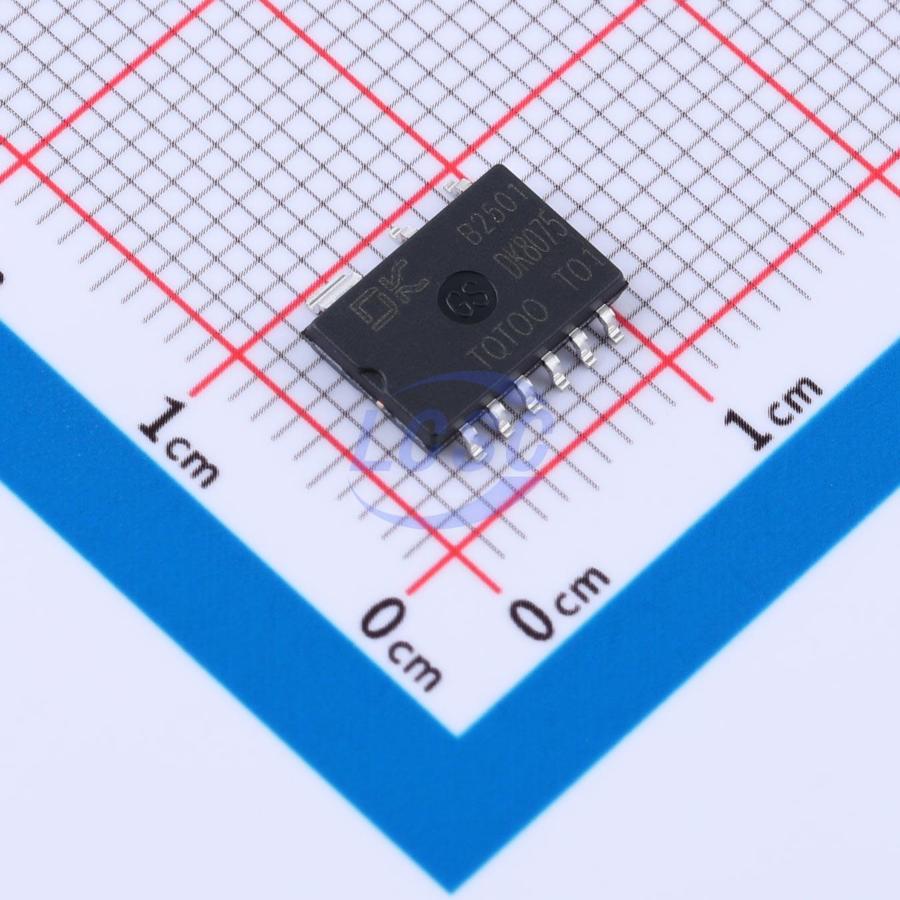

DK8075

DK8075 is a highly integrated quasi-resonant flyback AC-DC power switch IC featuring a 700V/101mΩ GaN HEMT. By sensing the drain voltage V_D,Λ (valley voltage) of the power transistor, it turns on the power transistor when V_p (drain voltage) reaches its minimum, thereby reducing switching losses and improving EMI. This IC greatly simplifies the design and manufacturing of flyback AC-DC converters, making it particularly suitable for applications requiring high conversion efficiency and high power density. The DK8075 incorporates comprehensive protection features, including output overvoltage protection, VCC over/undervoltage protection, overtemperature protection, open-loop protection, and output overcurrent protection.

Applications

• High power density fast chargers and adapters
• Laptop adapters
• Tablet adapters
• Set-top box adapters
• Auxiliary and standby power supplies

Key features

• High-voltage adaptive function: supports X-capacitor discharge before the bridge, or SW pin connection for startup (Note: DK0xxG series supports connection before or after the bridge; post-bridge connection is limited to VBUS only, which differs from the SW startup scheme of this device).
• Maximum switching frequency up to 200KHz.
• Standby power consumption below 50mW.
• Quasi-resonant operation mode.
• Built-in algorithm-optimized valley detection and valley locking circuits.
• Built-in demagnetization detection circuit.
• Built-in frequency dithering circuit for effective EMI improvement.
• Built-in high/low voltage input power compensation circuit, ensuring consistent maximum output power across high and low voltage inputs.
• Halogen-free and RoHS compliant.
