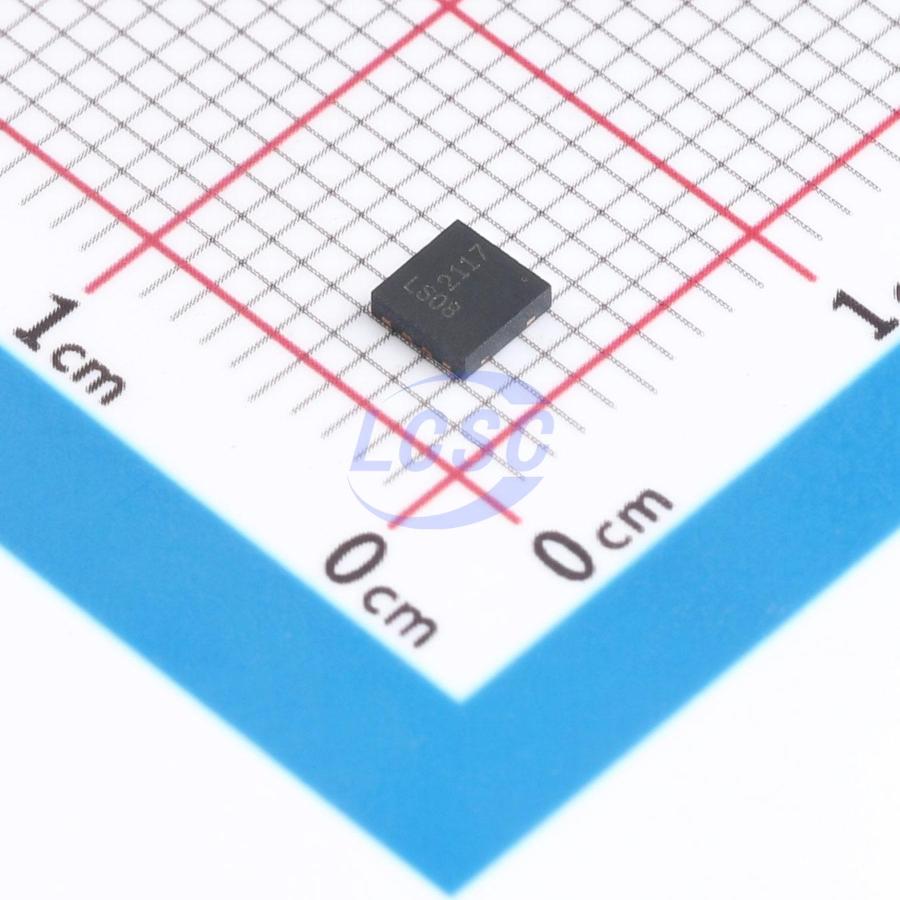

DML1008LDS-7
1 6A Active High Load Switch DFN3030-8-EP Power Distribution Switches, Load Drivers RoHS
DFN3030-8-EPROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- DML1008LDS-7
- Store part #
- C2680469
- Package / case
- DFN3030-8-EP
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C2680469
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹42.39 | ₹211.95 |
| 50+ | ₹33.66 | ₹1,683.00 |
| 150+ | ₹29.91 | ₹4,486.50 |
| 500+ | ₹25.24 | ₹12,620.00 |
| 3,000+ | ₹23.15 | ₹69,450.00 |
| 6,000+ | ₹21.91 | ₹1,31,460.00 |
5 × ₹42.39
₹211.95
excl. GST
₹250.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DML1008LDS-7
₹211.95 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Output discharge function
- number of channels
- 1
- Maximum Continuous Current
- 6A
- Control Input Logic
- Active High
- Operating Voltage
- 800mV~5.5V
- RDS(on)
- 8mΩ
- Type
- Load Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.001 g
Overview
The DML1008LDS is a single-channel load switch in a small package with ultra-low on-resistance. It integrates an N-channel MOSFET capable of operating at input voltages up to V<sub>VBIAS</sub> with 1.5V, supporting a 6A current path with a 3.2V to 5.5V bias supply. The load switch is controlled via the ON pin by a low-voltage control signal.
Applications
- Portable electronic devices and systems
- Laptops and tablets
- Telecom, networking, medical, and industrial equipment
- Set-top boxes, servers, and gateways
- SSD
Key features
- Low RDS(ON) – minimizes conduction losses
- 0.8V to VVBIAS - 1.5V input voltage range
- 6A continuous current
- Low RDS(ON) internal NFET: 8mΩ at VBIAS = 5V, VIN = 1.05V, TA = +85°C
- 35µA low quiescent current
- 10µs turn-on rise time
- 3.2V to 5.5V bias voltage
- Integrated fast output discharge resistor
- Moisture sensitivity: Level 1 per J-STD-020
- Fully lead-free and fully RoHS compliant
- Halogen- and antimony-free. "Green" device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPS22969DNYT#C2680448TI · WSON-8-EP(3x3) | TI | WSON-8-EP(3x3) | 7 | ₹126.73 · 7 in stock | View |
| AOZ1334DI-02#C2150282AOS · DFN-8-EP(3x3) | AOS | DFN-8-EP(3x3) | On request | ₹47.48 · 0 in stock | View | |
 | TPS22959DNYR#C2149902TI · WSON-8-EP(3x3) | TI | WSON-8-EP(3x3) | On request | ₹457.72 · 0 in stock | View |
 | TPS22959DNYT#C2876125TI · WSON-8-EP(3x3) | TI | WSON-8-EP(3x3) | On request | ₹153.03 · 0 in stock | View |
| TPS22962DNYT#C2150046TI · WSON-8-EP(3x3) | TI | WSON-8-EP(3x3) | On request | ₹439.57 · 0 in stock | View | |
