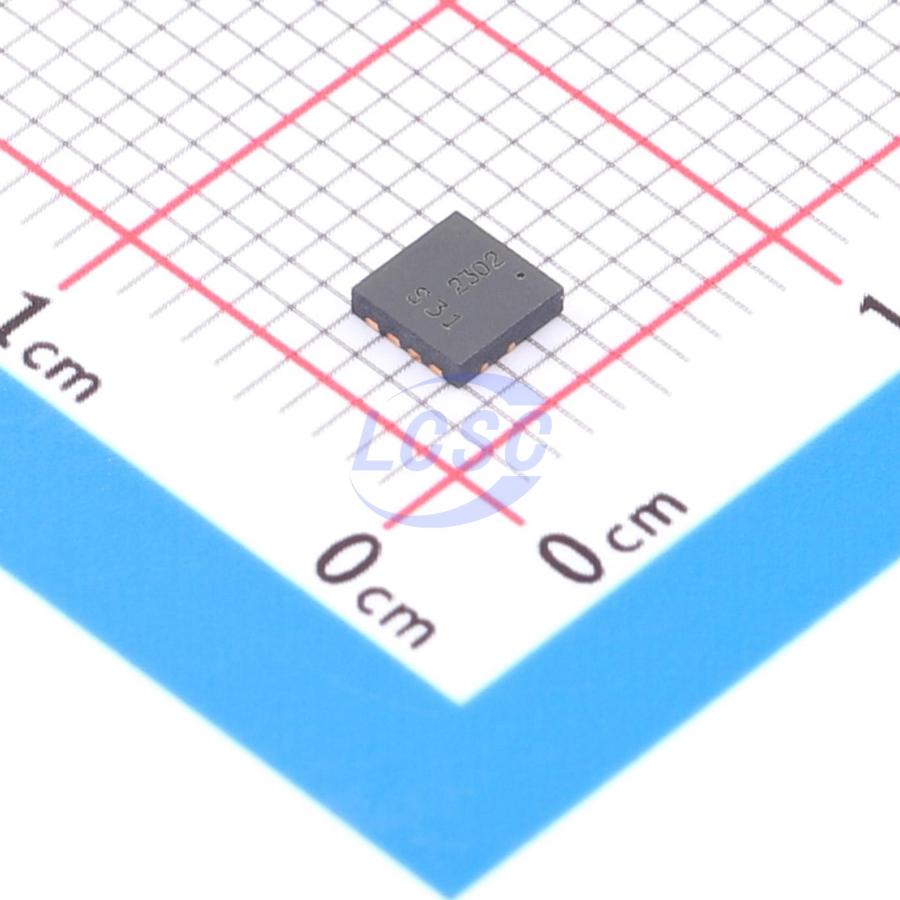

DMP3008SFGQ-13
P-Channel 30V 8.6A 0.9W Surface Mount PowerDI3333-8
PowerDI3333-8ROHS3 CompliantActive
MOSFET P-CH 30V 8.6A PowerDI3333-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMP3008SFGQ-13
- Store part #
- C6021887
- Package / case
- PowerDI3333-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
96 in stock
#C6021887
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹161.21 | ₹161.21 |
| 10+ | ₹158.84 | ₹1,588.40 |
| 30+ | ₹157.13 | ₹4,713.90 |
| 100+ | ₹155.62 | ₹15,562.00 |
1 × ₹161.21
₹161.21
excl. GST
₹190.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMP3008SFGQ-13
₹161.21 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 8.6A
- Ciss-Input Capacitance
- 2.23nF
- Pd - Power Dissipation
- 900mW
- Reverse Transfer Capacitance (Crss)
- 294pF
- RDS(on)
- 17mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 47nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.1V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.11 g
Overview
This MOSFET is designed to minimize the on - state resistance (RDS(ON)), yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Applications
- Backlighting
- Power Management Functions
- DC - DC Converters
Key features
- Low RDS(ON) – Ensures On - State Losses are Minimized
- Small Form Factor Thermally Efficient Package Enables Higher Density End Products
- Occupies Just 33% of the Board Area Occupied by SO - 8 Enabling Smaller End Product
- Totally Lead - Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC - Q101 Standards for High Reliability PPAP Capable
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCE40P20Q1#C5208054NCE · DFN3.3x3.3-8L | NCE | DFN3.3x3.3-8L | 3,140 | ₹113.06 · 3,140 in stock | View |
 | DMP3011SFVWQ-7#C3289385DIODES · PowerDI3333-8 | DIODES | PowerDI3333-8 | 3 | ₹128.38 · 3 in stock | View |
 | DMP3007SCGQ-13#C5624142DIODES · VDFN3333-8 | DIODES | VDFN3333-8 | 12 | ₹469.65 · 12 in stock | View |
 | NCE30P20Q#C502778NCE · DFN3.3x3.3-8L | NCE | DFN3.3x3.3-8L | 6,410 | ₹61.04 · 6,410 in stock | View |
 | SI7611DN-T1-GE3#C506599VISHAY · PowerPAK1212-8 | VISHAY | PowerPAK1212-8 | 7 | ₹345.62 · 7 in stock | View |
