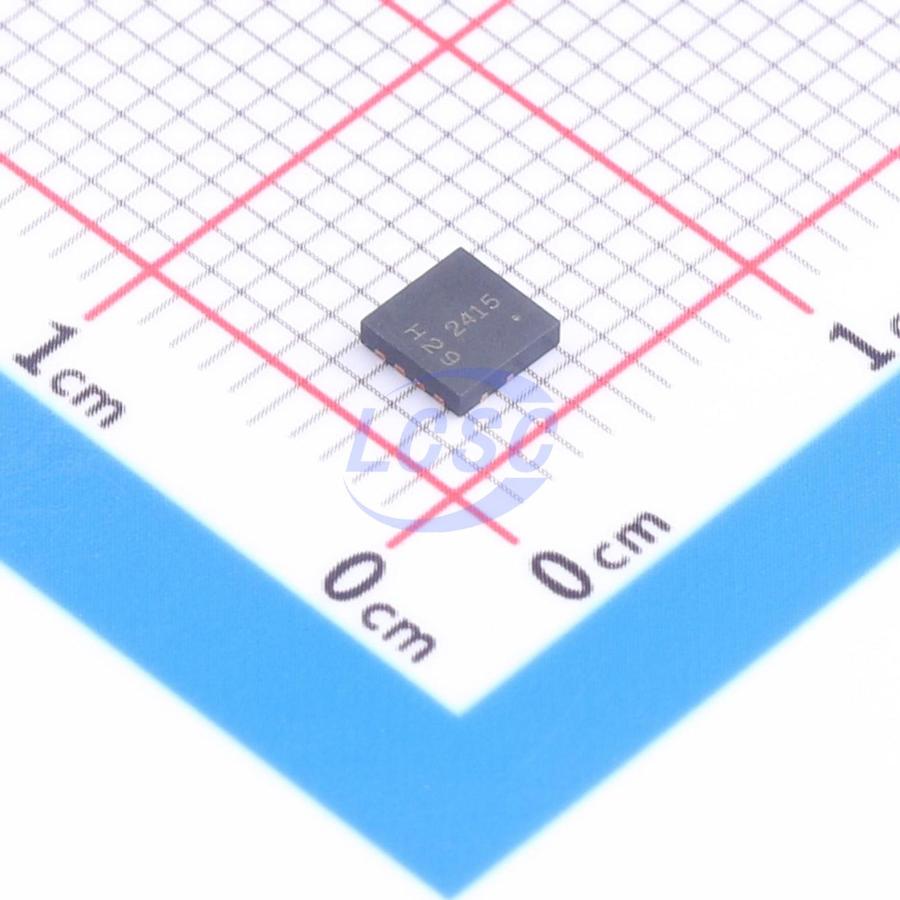

DMPH4029LFGQ-13
40V 2.8W 29mΩ@10V 1 P-Channel PowerDI3333-8 Single FETs, MOSFETs RoHS
PowerDI3333-8ROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- DMPH4029LFGQ-13
- Store part #
- C6225417
- Package / case
- PowerDI3333-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
114 in stock
#C6225417
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹181.28 | ₹181.28 |
| 10+ | ₹148.28 | ₹1,482.80 |
| 30+ | ₹130.26 | ₹3,907.80 |
| 100+ | ₹109.85 | ₹10,985.00 |
| 500+ | ₹100.96 | ₹50,480.00 |
| 1,000+ | ₹96.83 | ₹96,830.00 |
1 × ₹181.28
₹181.28
excl. GST
₹213.91 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMPH4029LFGQ-13
₹181.28 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 8A;22A
- Ciss-Input Capacitance
- 1.626nF
- Pd - Power Dissipation
- 2.8W
- Reverse Transfer Capacitance (Crss)
- 107pF
- RDS(on)
- 29mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 34nC@10V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.097 g
Overview
This MOSFET is designed to meet the stringent requirements of automotive applications. It is qualified to AEC - Q101, supported by a PPAP and is ideal for use in backlighting, power - management functions, DC - DC converters.
Applications
- Backlighting
- Power - management functions
- DC - DC converters
Key features
- Rated to +175°C — Ideal for High Ambient Temperature Environments
- 100% Unclamped Inductive Switching Test in Production — Ensures More Reliable and Robust End Application
- Low RDS(ON) — Ensures On State Losses Are Minimized
- Small Form Factor Thermally Efficient Package Enables Higher Density End Products Occupies Just 33% of the Board Area Occupied by SO - 8 Enabling Smaller End Product
- Lead - Free Finish; RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- The DMPH4029LFGQ is suitable for automotive applications requiring specific change control; this part is AEC - Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMPH4025SFVWQ-13#C6832250DIODES · PowerDI3333-8 | DIODES | PowerDI3333-8 | 100 | ₹139.72 · 100 in stock | View |
 | SISS5623DN-T1-GE3#C20346159VISHAY · PowerPAK1212-8S | VISHAY | PowerPAK1212-8S | 1 | ₹186.89 · 1 in stock | View |
 | LWS6028AD3#C20630406Lewa Micro · PDFN3.3x3.3-8L | Lewa Micro | PDFN3.3x3.3-8L | 4,535 | ₹46.32 · 4,535 in stock | View |
| RQ3G270BJFRATCB#C27135145ROHM · HSMT-8 | ROHM | HSMT-8 | 10 | ₹143.59 · 10 in stock | View | |
 | NVTFWS014P04M8LTAG#C900554onsemi · WDFN-8(3.3x3.3) | onsemi | WDFN-8(3.3x3.3) | 1 | ₹132.26 · 1 in stock | View |
