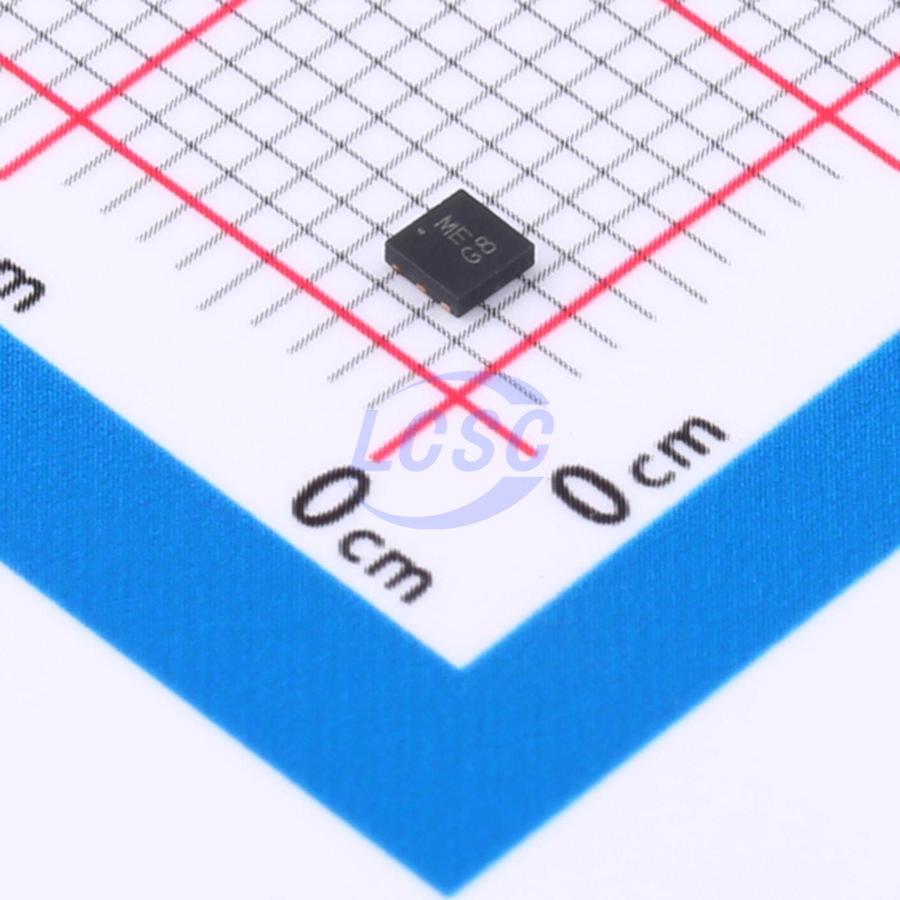

DMS2220LFDB-7
20V 1 Independent 1A 520mV@1A UDFN2020-6 Single FETs, MOSFETs RoHS
UDFN2020-6ROHS3 CompliantSold out at source
Super Barrier Rectifier
- Manufacturer
- DIODES
- Manufacturer part #
- DMS2220LFDB-7
- Store part #
- C3277051
- Package / case
- UDFN2020-6
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
80 in stock
#C3277051
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.04 | ₹75.20 |
| 50+ | ₹14.72 | ₹736.00 |
| 150+ | ₹14.51 | ₹2,176.50 |
| 500+ | ₹14.29 | ₹7,145.00 |
5 × ₹15.04
₹75.20
excl. GST
₹88.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMS2220LFDB-7
₹75.20 for 5 + GST
Specifications
- Reverse Leakage Current (Ir)
- 100uA
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse(Vr)
- 20V
- Non-Repetitive Peak Forward Surge Current
- 3A
- Diode Configuration
- 1 Independent
- Current - Rectified
- 1A
- Voltage - Forward(Vf@If)
- 520mV@1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Sold out at source
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.017 g
Overview
Key features
- Low on-resistance: 95mΩ at VGS = -4.5V, 120mΩ at VGS = -2.5V, 86mΩ typical at VGS = -1.8V
- Low gate threshold voltage, -1.3V max
- Fast switching speed
- Low input/output leakage
- Integrated low Vr Super Barrier Rectifier (SBR)
- Low profile, 0.5mm max height
- Fully lead-free and fully RoHS compliant
- Halogen- and antimony-free, "Green" device
- AEC-Q101 qualified with high reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMS2220LFDB-7#C5245499DIODES · UDFN2020-6 | DIODES | UDFN2020-6 | 50 | ₹24.16 · 50 in stock | View |
