HXY MOSFETDatasheet (PDF)

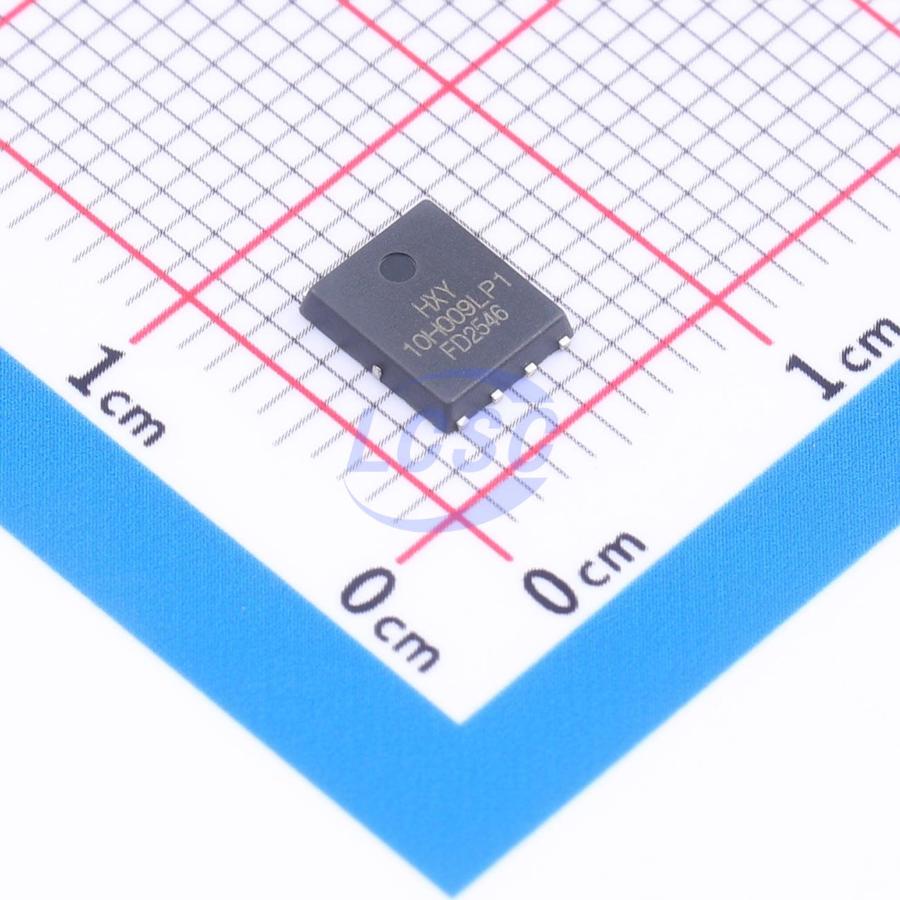

DMT10H009LPSW-13-HXY
97W 100V 75A 6.4mΩ@10V 1 N-channel N-Channel DFN-8L(5x6) Single FETs, MOSFETs
DFN-8L(5x6)RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- DMT10H009LPSW-13-HXY
- Store part #
- C53262923
- Package / case
- DFN-8L(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
84 in stock
#C53262923
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹106.10 | ₹106.10 |
| 10+ | ₹86.99 | ₹869.90 |
| 30+ | ₹77.54 | ₹2,326.20 |
| 100+ | ₹68.08 | ₹6,808.00 |
| 500+ | ₹62.50 | ₹31,250.00 |
| 1,000+ | ₹59.50 | ₹59,500.00 |
1 × ₹106.10
₹106.10
excl. GST
₹125.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
DMT10H009LPSW-13-HXY
₹106.10 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 736pF
- Ciss-Input Capacitance
- 2.944nF
- Pd - Power Dissipation
- 97W
- Configuration
- Standalone
- Drain to Source Voltage
- 100V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 75A
- Reverse Transfer Capacitance (Crss)
- 2.04pF
- RDS(on)
- 6.4mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 39.4nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.6V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.14 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BSC070N10LS5ATMA1-HXY#C48972107HXY MOSFET · DFN5x6-8L | HXY MOSFET | DFN5x6-8L | 144 | ₹146.14 · 144 in stock | View |
 | IAUCN10S7N074ATMA1-HXY#C53262893HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 97 | ₹185.35 · 97 in stock | View |
 | SIR846ADP-T1-GE3-HXY#C53262896HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 99 | ₹241.18 · 99 in stock | View |
 | SIR5108DP-T1-RE3-HXY#C53262900HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 94 | ₹178.05 · 94 in stock | View |
 | SIR516DP-T1-RE3-HXY#C53262901HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 99 | ₹215.20 · 99 in stock | View |
