DIODES

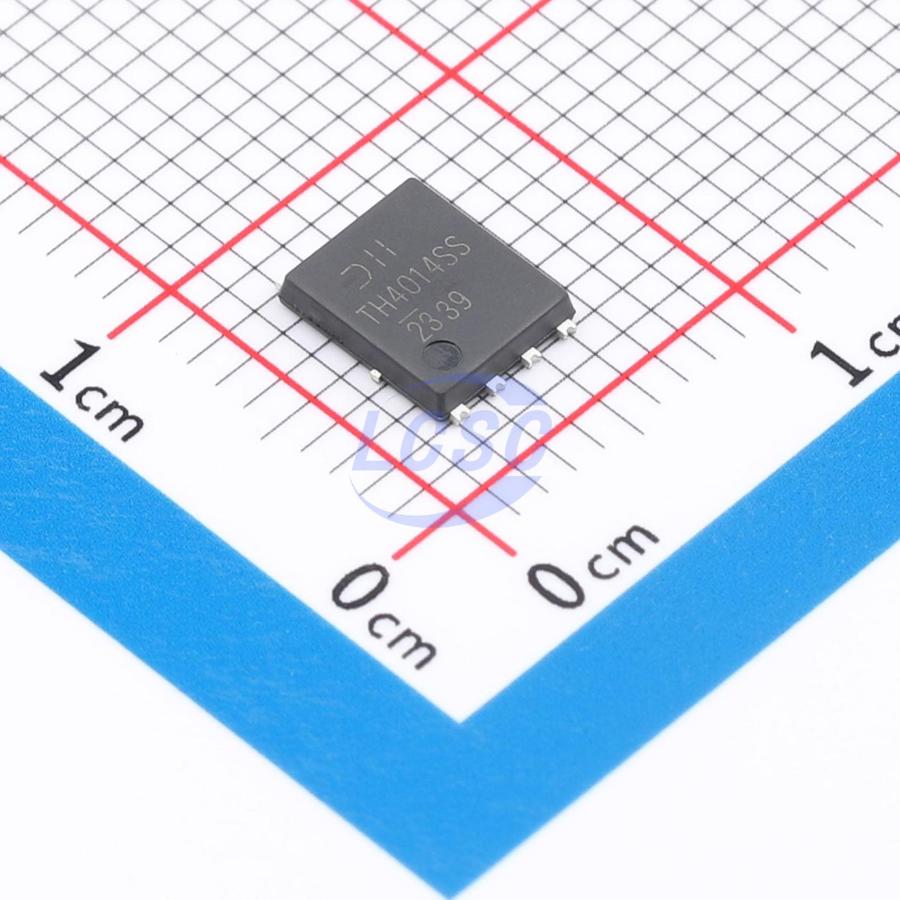

DMTH4014SPSWQ-13

40V 43.5A 14.8mΩ@10V 1 N-channel PowerDI5060-8 Single FETs, MOSFETs RoHS

PowerDI5060-8ROHS3 CompliantActive

Manufacturer: DIODES
Manufacturer part #: DMTH4014SPSWQ-13
Store part #: C6021933
Package / case: PowerDI5060-8
Category: Single FETs, MOSFETs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

75 in stock

#C6021933

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹141.22	₹141.22
10+	₹139.07	₹1,390.70
30+	₹137.78	₹4,133.40
100+	₹136.28	₹13,628.00

Quantity (min 1)

1 × ₹141.22

₹141.22

excl. GST

₹166.64 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

DMTH4014SPSWQ-13

₹141.22 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -55℃~+175℃
Drain to Source Voltage: 40V
Current - Continuous Drain(Id): 43.5A
Ciss-Input Capacitance: 805pF
Pd - Power Dissipation: 4W;46.9W
Reverse Transfer Capacitance (Crss): 15pF
RDS(on): 14.8mΩ@10V
Number: 1 N-channel
Gate Charge(Qg): 10.6nC@10V
Gate Threshold Voltage (Vgs(th)): 4V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.09 g

Overview

This MOSFET is designed to meet the stringent requirements of automotive applications. It is AEC-Q101 qualified with PPAP support, making it ideal for the following applications: - High-frequency switching - Synchronous rectification - DC-DC converters

Applications

High-frequency switching
Synchronous rectification
DC-DC converter

Key features

Rated temperature up to +175°C, suitable for high ambient temperature environments
100% unclamped inductive switching (UIS) tested during production for enhanced reliability and durability in end applications
High conversion efficiency
Low on-resistance RDS(ON) minimizes power loss
Solderable wings for optical inspection
Fast switching speed
Low input capacitance
Lead-free finish, RoHS compliant
Halogen- and antimony-free "green" device

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
LN7910DT1WG#C2936692LRC · DFN-8(5x6)	LRC	DFN-8(5x6)	1,461	₹163.59 · 1,461 in stock	View
FDWS86380-F085#C891133onsemi · Power-56	onsemi	Power-56	7	₹305.00 · 7 in stock	View
BSC160N15NS5#C459172Infineon · TDSON-8(5x6)	Infineon	TDSON-8(5x6)	4,771	₹163.92 · 4,771 in stock	View
SIR574DP-T1-RE3#C3289465VISHAY · PowerPAKSO-8	VISHAY	PowerPAKSO-8	12	₹145.38 · 12 in stock	View
HYG055N08NS1C2#C2900843HUAYI · PPAK5x6-8L	HUAYI	PPAK5x6-8L	4,732	₹68.20 · 4,732 in stock	View
