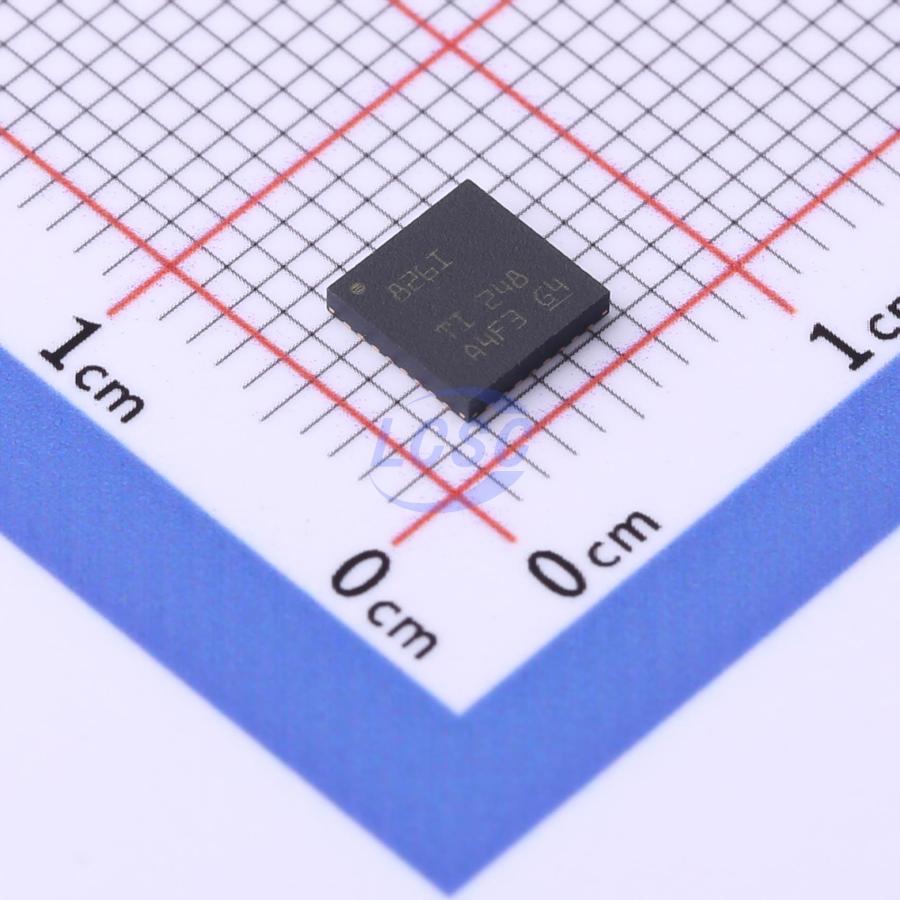

DP83826IRHBR
100Mbps VQFN-32-EP(5x5) Controllers RoHS
Deterministic, low-latency, low-power, 10/100Mbps industrial Ethernet PHY
- Manufacturer
- TI
- Manufacturer part #
- DP83826IRHBR
- Store part #
- C3225658
- Package / case
- VQFN-32-EP(5x5)
- Category
- Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
17,133 in stock
#C3225658
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹114.86 | ₹114.86 |
| 10+ | ₹93.37 | ₹933.70 |
| 30+ | ₹82.71 | ₹2,481.30 |
| 100+ | ₹69.17 | ₹6,917.00 |
| 500+ | ₹62.85 | ₹31,425.00 |
| 1,000+ | ₹59.60 | ₹59,600.00 |
1 × ₹114.86
₹114.86
excl. GST
₹135.53 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DP83826IRHBR
₹114.86 for 1 + GST
Specifications
- Features
- Wake-up function;Enable/shutdown function;Interrupt generation
- Voltage - Supply
- 3V~3.6V
- Operating Temperature
- -40℃~+85℃
- Data Rate
- 100Mbps
- Interface
- MII;RMII
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.149 g
Overview
The DP83826 can provide very low deterministic latency and low power consumption, and support the 10BASE-Te and 100BASE-TX Ethernet protocols, meeting the strict requirements of real-time industrial Ethernet systems. This device includes hardware autonegotiation for fast link establishment, a fast link loss detection mode, and a dedicated reference CLKOUT for clock synchronization of other modules on the system. There are two configurable modes: the BASIC standard Ethernet mode using the general Ethernet pin arrangement, and the ENHANCED Ethernet mode that supports the standard Ethernet mode and multiple industrial Ethernet fieldbus applications (through additional features and hardware autonegotiation configuration).
Applications
- Factory automation, robotics, and motion control
- Motor drivers
- Grid infrastructure
- Building automation
- Industrial Ethernet fieldbus
Key features
- Low deterministic latency – TX latency: 40ns, RX latency: 170ns
- Deterministic latency on power cycle < ±2ns
- Fixed-phase XI to TX_CLK relationship < ±2ns
- Integrated circuit for enhanced EMC
- IEC 61000-4-2 ESD: ±8kV contact, ±15kV air
- IEC 61000-4-4 EFT: ±4kV at 5kHz, 100kHz
- CISPR 22 conducted emissions Class B
- Compliant with CISPR 22 Class B radiated emissions limits
- Fast link drop < 10μs
- Cable length > 150 meters
- Voltage-mode line driver
- Integrated termination on MAC interface
- Voltage tolerance: ±10%
- Two selectable pin modes in a single device
- ENHANCED mode for additional functionality
- BASIC mode for general-purpose Ethernet pins
- Low power < 160mW
- MAC interface: MII, RMII
- Programmable power-saving modes
- Active sleep
- Deep power-down
- Energy Efficient Ethernet (EEE) IEEE 802.3az
- Wake-on-LAN (WoL)
- Diagnostic tools: cable diagnostics, BIST, loopback mode
- 3.3V single supply
- I/O voltage: 1.8V or 3.3V
- RMII back-to-back repeater mode
- DP83826E operating temperature range: -40°C to 105°C
- DP83826I operating temperature range: -40°C to 85°C
- Compliant with IEEE 802.3: 10BASE-Te, 100BASE-TX
- EtherCAT compliant
