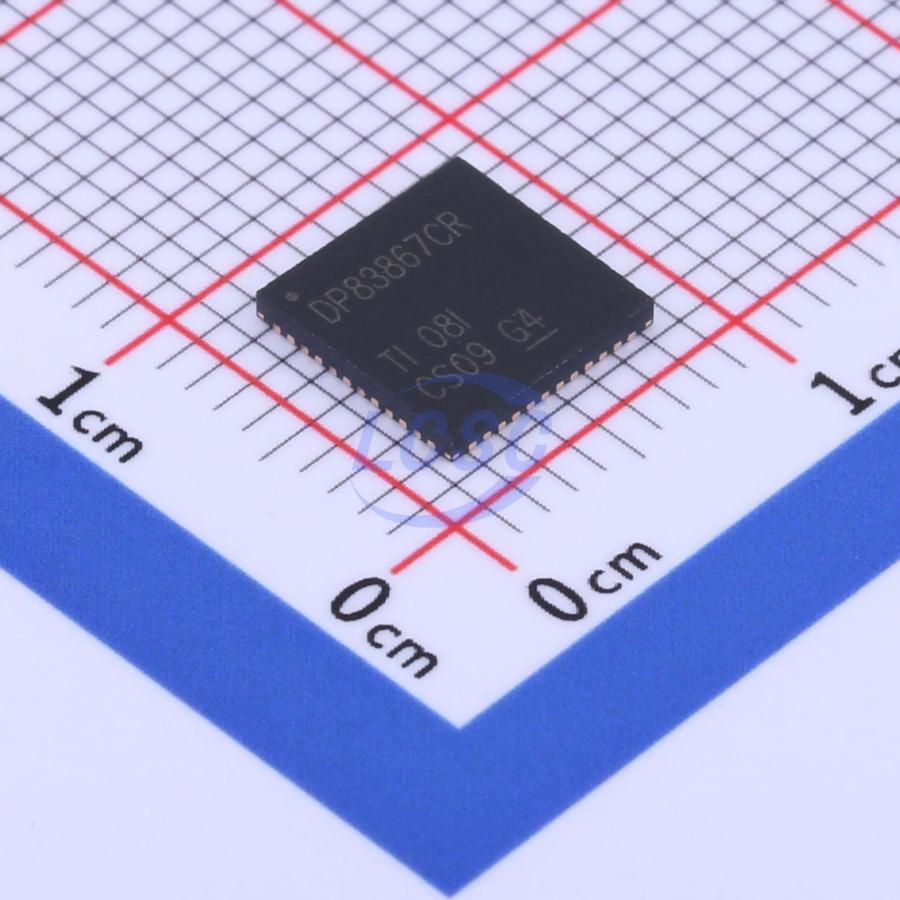

DP83867CRRGZR

VQFN-48-EP(7x7) Controllers RoHS

VQFN-48-EP(7x7)ROHS3 CompliantActive

Robust and highly immune Ethernet PHY transceiver

Manufacturer: TI
Manufacturer part #: DP83867CRRGZR
Store part #: C544766
Package / case: VQFN-48-EP(7x7)
Category: Controllers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,025 in stock

#C544766

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹352.57	₹352.57
10+	₹296.02	₹2,960.20
30+	₹260.35	₹7,810.50
100+	₹224.02	₹22,402.00
500+	₹207.71	₹1,03,855.00
1,000+	₹200.54	₹2,00,540.00

Quantity (min 1)

1 × ₹352.57

₹352.57

excl. GST

₹416.03 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

DP83867CRRGZR

₹352.57 for 1 + GST

Specifications

Features: Low-power mode;IEEE1588 timestamp;Cable diagnostics;Programmable LED indication;SupportSyncE
MAC Interface: RGMII;MII;GMII
Voltage - Supply: 1.8V;2.5V;3.3V
Operating Temperature: 0℃~+70℃
Type: Ethernet Transceiver
Ethernet Speed Standards: 10BASE-TE;100BASE-TX;1000BASE-T
Data Rate: 10Mbit/s;100Mbit/s;1Gbit/s

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.215 g

Overview

The DP83867 device is a robust, low-power, full-featured physical layer transceiver that integrates a PMD sublayer to support the 10BASE-Te, 100BASE-TX, and 1000BASE-T Ethernet protocols. The DP83867 is optimized to provide ESD protection that exceeds the 8kV IEC 61000-4-2 standard (direct contact). The DP83867 can easily implement 10/100/1000Mbps Ethernet LANs. It connects directly to twisted-pair media through an external transformer. The device connects directly to the MAC layer through the IEEE 802.3 standard Media Independent Interface (MII), the IEEE 802.3 Gigabit Media Independent Interface (GMII), or the Reduced GMII (RGMII). The QFP package supports MII/GMII/RGMII, while the QFN package supports RGMII. The DP83867 provides precise clock synchronization, including Synchronous Ethernet clock output. The device has low latency and provides IEEE 1588 frame start detection.

Applications

Motor drivers
Factory automation
Fieldbus support
Industrial embedded computing
Wired and wireless communication infrastructure
Test and measurement
Consumer electronics

Key features

Ultra-low RGMII latency: TX < 90ns, RX < 290ns
TSN compliant
Low power consumption: 457mW
IEC 61000-4-2 ESD protection up to 8000V
EN55011 Class B emissions compliant
16 programmable RGMII delay modes on RX/TX
Integrated MDI termination resistors
Programmable MII/GMII/RGMII termination impedance
WoL packet detection
25MHz or 125MHz synchronous clock output
IEEE 1588 timestamp start-of-frame detection
RJ45 loopback mode
Full compliance with IEEE 802.3 10BASE-Te, 100BASE-TX, and 1000BASE-T specifications
Cable diagnostics
MII, GMII, and RGMII MAC interface options
Configurable I/O voltage (3.3V, 2.5V, 1.8V)
Fast link-down mode
JTAG support
