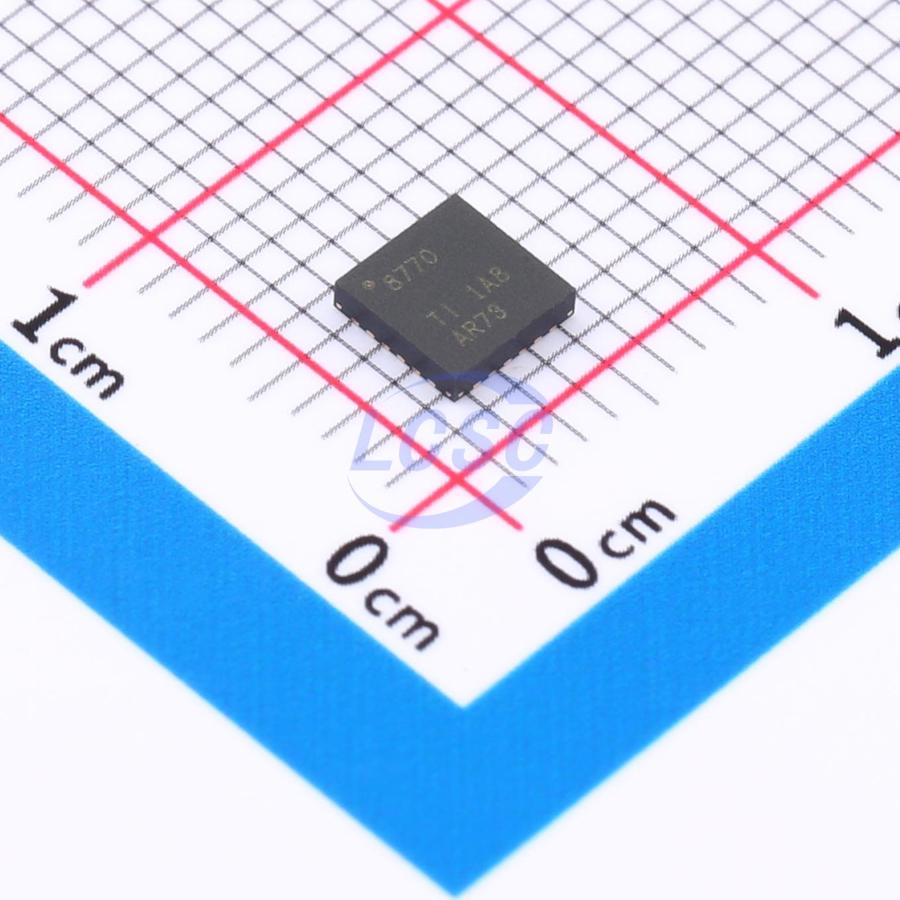

DRV8770RGER TI
TI

DRV8770RGER

Half-Bridge Gate Driver IC MOSFET VQFN-24(4x4)

VQFN-24(4x4)ROHS CompliantActive

100V brushed DC gate driver

Manufacturer
TI
Manufacturer part #
DRV8770RGER
Store part #
C3655708
Package / case
VQFN-24(4x4)
Category
Full, Half-Bridge (H Bridge) Drivers
Packaging
Tape & Reel (TR)
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,216 in stock

#C3655708

Stock & price checked 5 days ago

QuantityUnit pricePack price
1+₹291.77₹291.77
10+₹257.91₹2,579.10
30+₹234.03₹7,020.90
100+₹212.10₹21,210.00
500+₹201.90₹1,00,950.00
1,000+₹197.99₹1,97,990.00

1 × ₹291.77

₹291.77

excl. GST

₹344.29 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 7–10 working days
  • GST invoice with every order
  • Standard pack: 3,000 per reel

DRV8770RGER

₹291.77 for 1 + GST

Specifications

Quiescent Current(Iq)
800uA
Number of Drivers
2
Load Type
MOSFET
Current - Output High(IOH)
750mA
Rise Time
24ns
Fall Time
12ns
Driven Configuration
Half-Bridge
Current - Output Low(IOL)
1.5A
Operating Temperature
-40℃~+150℃
Features
Dead-time control;Interleaved conduction protection;Built-in bootstrap diode
Voltage - Supply
5V~20V

Packaging & compliance

RoHS
ROHS Compliant
Lifecycle
Active
ECCN
EAR99
Packaging
Tape & Reel (TR)
Standard pack
3,000 / Reel
Sold per
Piece
Minimum order
1
Unit weight
0.076 g
