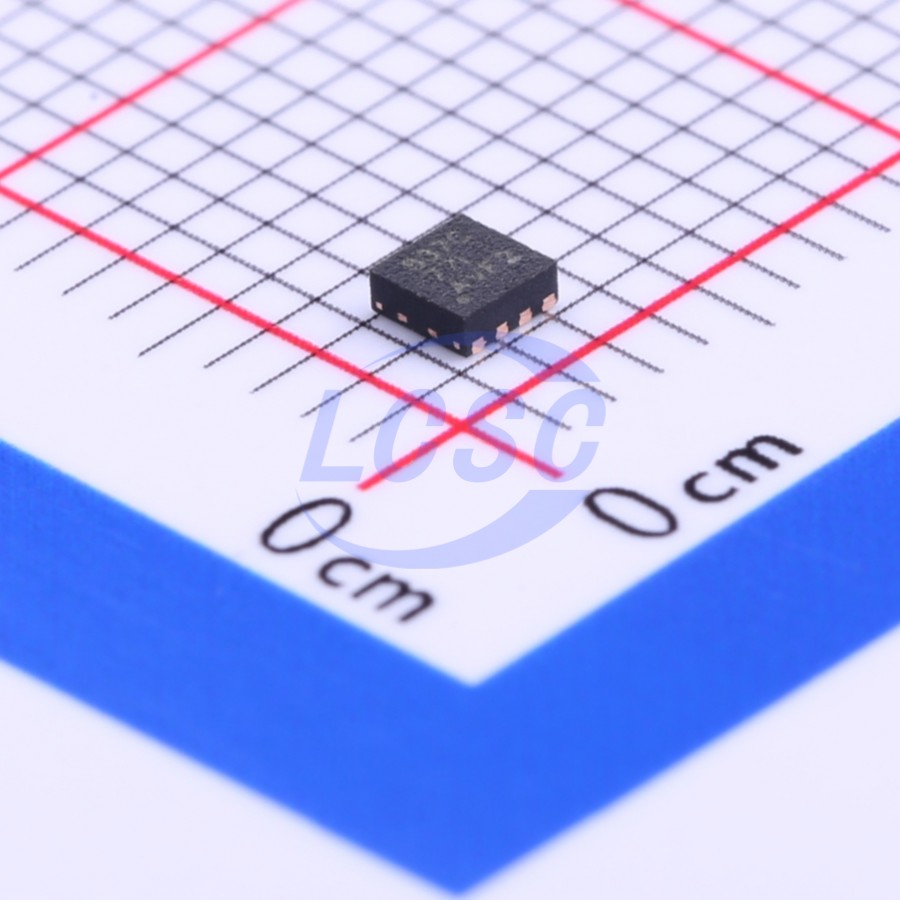

DRV8837CDSGR
1.8V~7V WSON-8-EP(2x2) Motor Drivers, Controllers RoHS
Low-voltage H-bridge driver
- Manufacturer
- TI
- Manufacturer part #
- DRV8837CDSGR
- Store part #
- C191000
- Package / case
- WSON-8-EP(2x2)
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
45,740 in stock
#C191000
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.73 | ₹153.65 |
| 50+ | ₹24.99 | ₹1,249.50 |
| 150+ | ₹22.52 | ₹3,378.00 |
| 500+ | ₹19.45 | ₹9,725.00 |
| 3,000+ | ₹18.07 | ₹54,210.00 |
| 6,000+ | ₹17.25 | ₹1,03,500.00 |
5 × ₹30.73
₹153.65
excl. GST
₹181.31 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DRV8837CDSGR
₹153.65 for 5 + GST
Specifications
- Number of H-bridges
- 1
- Features
- Current sensing/regulation function;Active braking function
- Technology
- Yes
- Voltage - Supply
- 1.8V~7V
- Operating Temperature
- -40℃~+85℃
- Peak Current
- 1A
- RDS(on)
- 1Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.087 g
Overview
The DRV8837C device provides an integrated motor driver solution for cameras, consumer products, toys, and other low- voltage or battery- powered motion control applications. The device can drive one DC motor or other devices like solenoids. The output driver block consists of N- channel power MOSFETs configured as an H- bridge to drive the motor winding. An internal charge pump generates needed gate drive voltages. The DRV8837C device can supply up to 1 A of output current. The device operates on a motor power supply voltage from 0 to 11 V, and control logic can operate on 1.8- V to 5- V rails. The DRV8837C device has a PWM (IN/IN) input interface. Internal shutdown functions are provided for overcurrent protection, short circuit protection, undervoltage lockout, and overtemperature.
Applications
- Cameras
- DSLR Lenses
- Consumer Products
- Toys
- Robotics
- Medical Devices
Key features
- H-Bridge Motor Driver
- Drives a DC Motor or Other Loads
- Low MOSFET On-Resistance: HS + LS 1 Ω
- 1-A Maximum Drive Current
- 0- to 11-V Operating Supply-Voltage Range
- Standard PWM interface (INT/IN2)
- Low-Power Sleep Mode With 120-nA Maximum Sleep Current
- nSLEEP pin
- Small Package and Footprint
- 8 WSON (With Thermal Pad)
- 2.0 × 2.0mm
- Protection Features
- VCC Undervoltage Lockout (UVLO)
- Overcurrent Protection (OCP)
- Thermal Shutdown (TSD)
