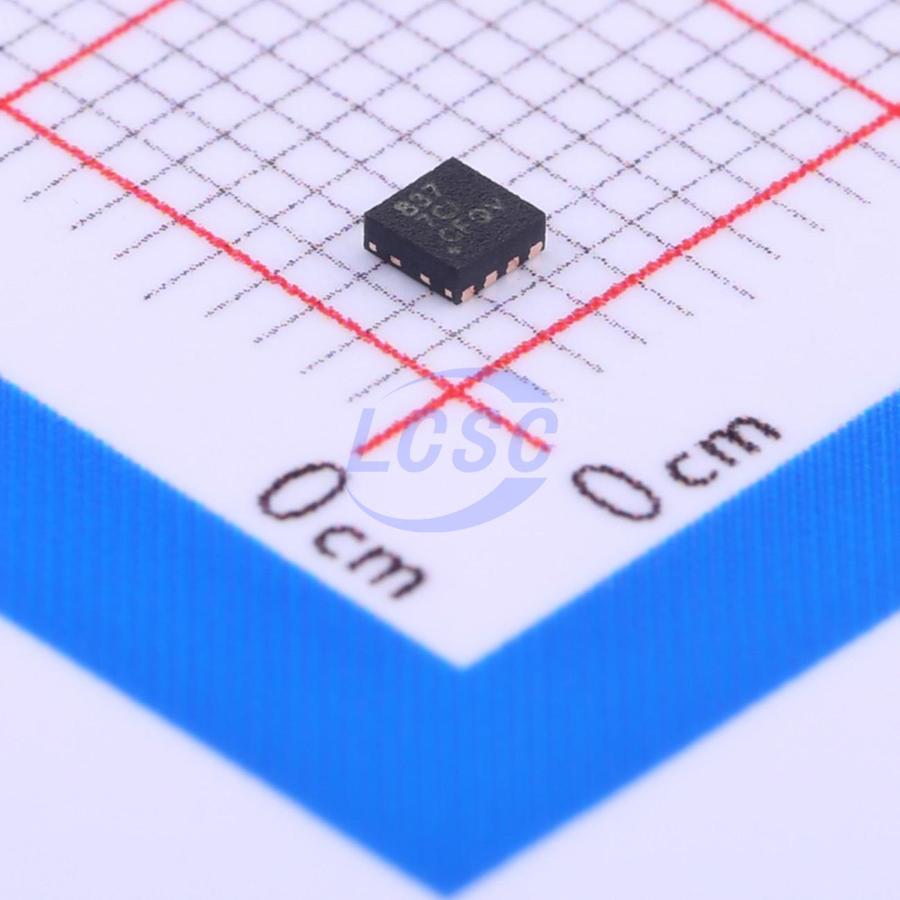

DRV8837DSGR
1.8V~7V WSON-8-EP(2x2) Motor Drivers, Controllers RoHS
Low-Voltage H-Bridge Driver
- Manufacturer
- TI
- Manufacturer part #
- DRV8837DSGR
- Store part #
- C39159
- Package / case
- WSON-8-EP(2x2)
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
69,785 in stock
#C39159
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.53 | ₹172.65 |
| 50+ | ₹26.78 | ₹1,339.00 |
| 150+ | ₹22.99 | ₹3,448.50 |
| 500+ | ₹19.61 | ₹9,805.00 |
| 3,000+ | ₹18.68 | ₹56,040.00 |
| 6,000+ | ₹18.13 | ₹1,08,780.00 |
5 × ₹34.53
₹172.65
excl. GST
₹203.73 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DRV8837DSGR
₹172.65 for 5 + GST
Specifications
- Features
- Current sensing/regulation function;Active braking function
- Technology
- Yes
- Voltage - Supply
- 1.8V~7V
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 120nA
- Peak Current
- 1.9A
- RDS(on)
- 280mΩ
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.041 g
Overview
The DRV883x provides an integrated motor driver solution for cameras, consumer products, toys, and other low-voltage or battery-powered motion control applications. The device can drive one DC motor or other devices like solenoids. The output driver block consists of N-channel power MOSFET’s configured as an H-bridge to drive the motor winding. An internal charge pump generates needed gate drive voltages. The DRV883x can supply up to 1.8 A of output current. It operates on a motor power supply voltage from 0 to 11 V, and a device power supply voltage of 1.8 V to 7.0 V. The DRV8837 has a PWM (IN/IN) input interface; the DRV8837 has a PH/EN input interface. Both interfaces are compatible with industry-standard devices. Internal shutdown functions are provided for overcurrent protection, short circuit protection, undervoltage lockout, and overtemperature.
Applications
- Cameras
- DSLR Lenses
- Consumer Products
- Toys
- Robotics
- Medical Devices
Key features
- H-Bridge Motor Driver Drives a DC Motor or Other Loads
- Low MOSFET On-resistance: HS + LS 280 mΩ
- 1.8-A Maximum Drive Current
- Separate Motor and Logic Supply Pins: Motor VM: 0 to 11 V Logic VCC: 1.8 to 7 V
- PWM or PH/EN Interface DRV8837: PWM, IN1/IN2 DRV8838: PH/EN
- Low-power Sleep Mode With 120-nA Maximum Sleep Current nSLEEP pin
- Small Package and Footprint 8 WSON (PowerPAD) 2.0×2.0 mm
- Protection Features VCC Undervoltage Lockout (UVLO) Overcurrent Protection (OCP) Thermal Shutdown (TSD)
