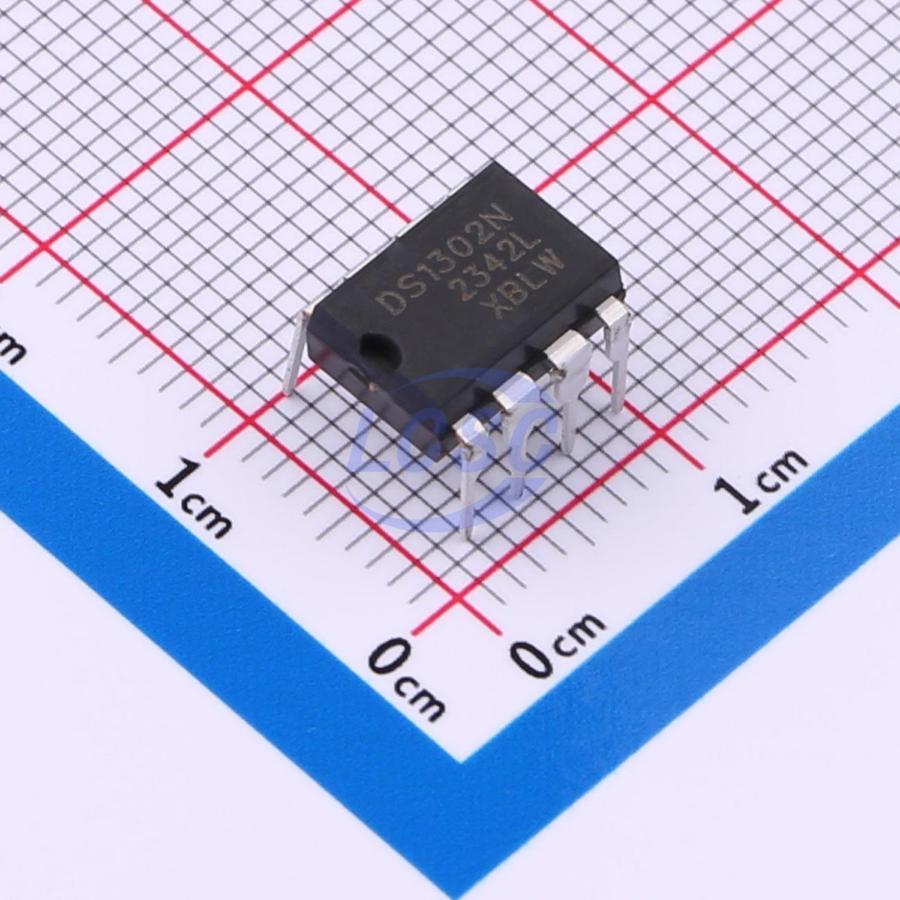

DS1302N(XBLW)

The DS1302 trickle-charge timekeeping chip contains a real-time clock/calendar and 31 bytes of static RAM. It communicates with a microprocessor via a simple serial interface. The real-time clock/calendar provides seconds, minutes, hours, day, date, month, and year information. The end of the month date is automatically adjusted for months with fewer than 31 days, including corrections for leap year. The clock operates in either the 24-hour or 12-hour format with an AM/ PM indicator. Interfacing the DS1302 with a microprocessor is simplified by using synchronous serial communication. Only three wires are required to communicate with the clock/RAM: CE, I/O (data line), and SCLK (serial clock). Data can be transferred to and from the clock/RAM 1 byte at a time or in a burst of up to 31 bytes. The DS1302 is designed to operate on very low power and retain data and clock information on less than 10μW.

Applications

• Multi-tariff electricity meter
• IC card water meter
• IC card gas meter
• Fax machine
• Portable instrument
• Mobile phone
• Perpetual clock

Key features

• Real-Time Clock Counts Seconds, Minutes, Hours, Date of the Month, Month, Day of the Week, and Year with Leap-Year Compensation Valid Up to 2100
• 31×8 Battery-Backed General-Purpose RAM
• Serial I/O for Minimum Pin Count
• 2.0V to 5.5V Full Operation
• Uses Less than 1uA at 2.0V
• Single-Byte or Multiple-Byte (Burst Mode) Data Transfer for Read or Write of Clock or RAM Data
• Simple 3-Wire Interface
• TTL-Compatible (VCC = 5V)
• Optional Industrial Temperature Range: -40°C to +85°C
