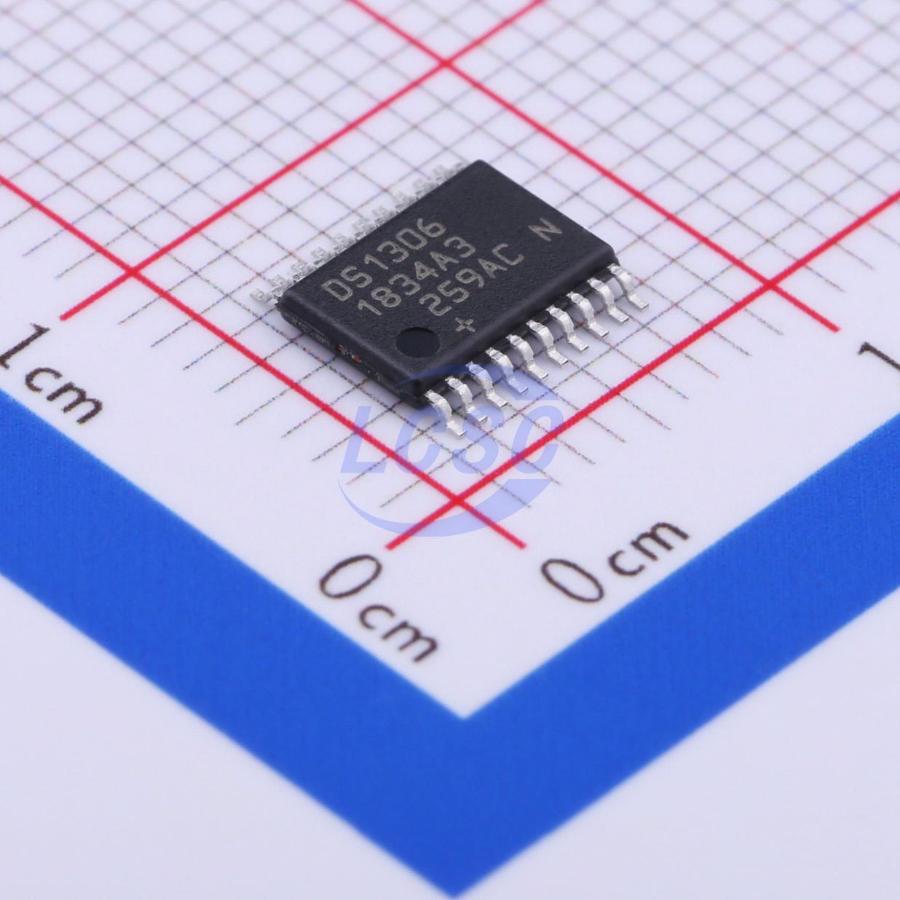

DS1306EN+T&R

The serial alarm real-time clock (RTC) provides a full binary coded decimal (BCD) clock calendar that is accessed by a simple serial interface. The clock/calendar provides seconds, minutes, hours, day, date, month, and year information. The end of the month date is automatically adjusted for months with fewer than 31 days, including corrections for leap year. The clock operates in either the 24 - hour or 12 - hour format with AM/PM indicator. In addition, 96 bytes of NV RAM are provided for data storage. An interface logic power - supply input pin (VCCIF) allows the device to drive SDO and 32kHz pins to a level that is compatible with the interface logic. This allows an easy interface to 3V logic in mixed supply systems. The device offers dual - power supplies as well as a battery - input pin. The dual - power supplies support a programmable trickle charge circuit that allows a rechargeable energy source (such as a super cap or rechargeable battery) to be used for a backup supply. The VBAT pin allows the device to be backed up by a non - rechargeable battery. The device is fully operational from 2.0V to 5.5V. Two programmable time - of - day alarms are provided. Each alarm can generate an interrupt on a programmable combination of seconds, minutes, hours, and day. “Don’t care” states can be inserted into one or more fields if it is desired for them to be ignored for the alarm condition. A 1Hz and a 32kHz clock output are also available. The device supports a direct interface to SPI serial data ports or standard 3 - wire interface. An easy - to - use address and data format is implemented in which data transfers can occur 1 byte at a time or in multiple - byte burst mode.

Key features

• Real-Time Clock (RTC) Counts Seconds, Minutes, Hours, Date of the Month, Month, Day of the Week, and Year with Leap-Year Compensation Valid Up to 2100
• 96-Byte, Battery-Backed NV RAM for Data Storage
• Two Time-of-Day Alarms, Programmable on Combination of Seconds, Minutes, Hours, and Day of the Week
• 1Hz and 32.768kHz Clock Outputs
• Supports Motorola SPI (Serial Peripheral Interface) Modes 1 and 3 or Standard 3-Wire Interface
• Burst Mode for Reading/Writing Successive Addresses in Clock/RAM
• Dual-Power Supply Pins for Primary and Backup Power Supplies
• Optional Trickle Charge Output to Backup Supply
• 2.0V to 5.5V Operation
• Optional Industrial Temperature Range: -40°C to +85°C
• Available in Space-Efficient, 20-Pin TSSOP Package
• Underwriters Laboratory (UL) Recognized
