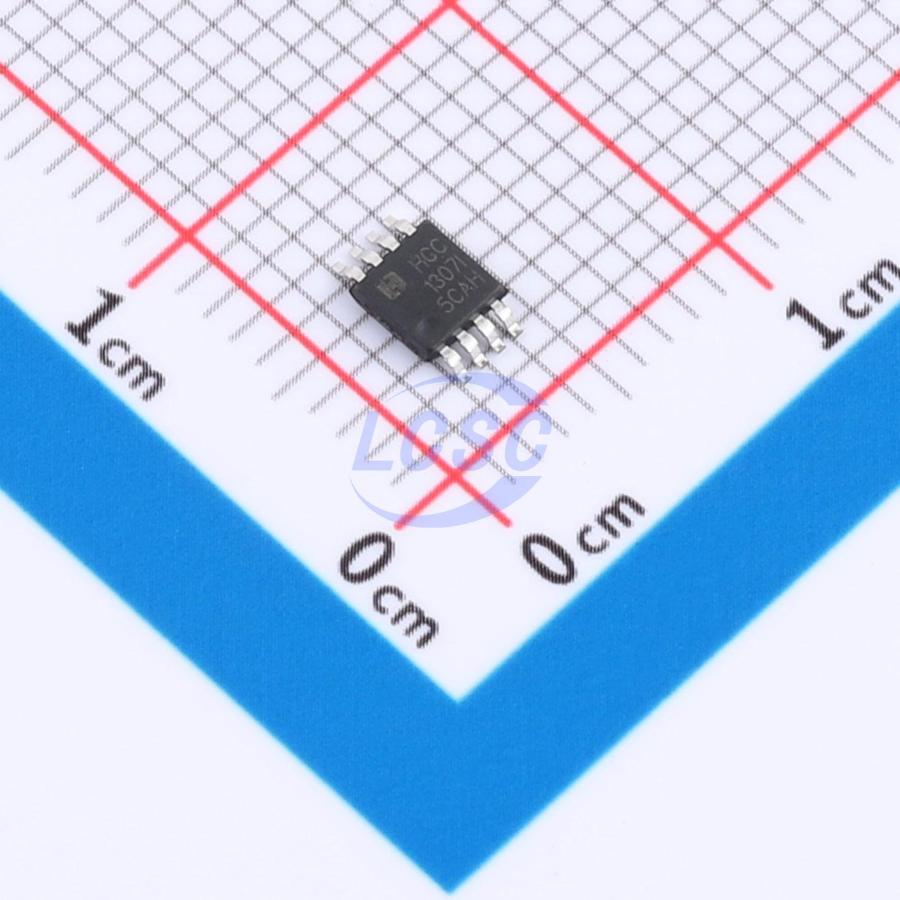

DS1307IDGKRG
External No MSOP-8 Real Time Clocks
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- DS1307IDGKRG
- Store part #
- C53241912
- Package / case
- MSOP-8
- Category
- Real Time Clocks
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,780 in stock
#C53241912
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.24 | ₹101.20 |
| 50+ | ₹15.97 | ₹798.50 |
| 150+ | ₹14.14 | ₹2,121.00 |
| 500+ | ₹11.85 | ₹5,925.00 |
| 3,000+ | ₹10.84 | ₹32,520.00 |
| 6,000+ | ₹10.23 | ₹61,380.00 |
5 × ₹20.24
₹101.20
excl. GST
₹119.42 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DS1307IDGKRG
₹101.20 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Voltage - Supply
- 4.5V~5.5V
- crystal oscillator
- External
- Alarm Output
- No
- Current - Supply
- 1.5mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.263 g
Overview
The DS1307 is a low-power, full binary-coded decimal clock/calendar with 56 bytes of non-volatile SRAM. Address and data are transferred serially via the I2C bus. The clock/calendar provides seconds, minutes, hours, day, date, month, and year information. End-of-month date adjustments are made automatically for months with fewer than 31 days, and leap year compensation is supported. The clock operates in either 24-hour or 12-hour format with an AM/PM indicator. The DS1307 integrates a power-sense circuit that detects power failures and automatically switches to the backup battery supply when the primary power source fails.
Applications
- Prepayment energy meters
- IC card water meters
- IC card gas meters
- Mobile phones
- Portable instruments
- Fax machines
- Battery-powered products
- Television sets
Key features
- Based on 32.768kHz quartz crystal; counts seconds, minutes, hours, days, months, day-of-week, and years with leap-year compensation
- 56-byte non-volatile RAM with backup battery
- I2C serial bus interface
- Programmable square-wave output
- Automatic power-fail detection and power-switching circuit
- Power consumption less than 500nA with battery backup and oscillator running
- Optional industrial temperature range: -40℃ to +85℃
- Available in DIP-8, SOP-8, and MSOP-8 packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DS1307CDGKRG#C53241911HANSCHIP semiconductor · MSOP-8 | HANSCHIP semiconductor | MSOP-8 | 2,900 | ₹17.23 · 2,900 in stock | View |
 | PCF8563DGKRG#C42396736HANSCHIP semiconductor · MSOP-8 | HANSCHIP semiconductor | MSOP-8 | 4,125 | ₹22.44 · 4,125 in stock | View |
