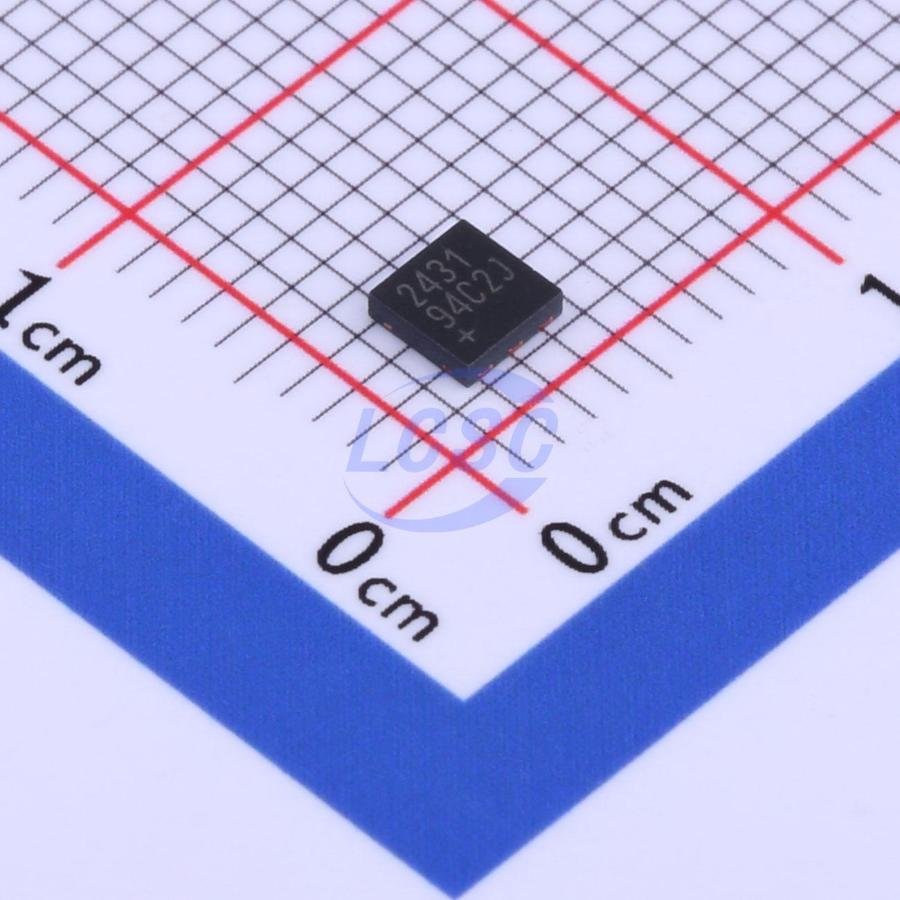

DS2431Q+T&R
1Kbit 2.8V~5.25V Single bus TDFN-6-EP(3x3) Memory RoHS
1024-Bit, 1-Wire EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,040 in stock
#C879661
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹477.62 | ₹477.62 |
| 10+ | ₹408.86 | ₹4,088.60 |
| 30+ | ₹367.95 | ₹11,038.50 |
| 100+ | ₹326.61 | ₹32,661.00 |
| 500+ | ₹307.47 | ₹1,53,735.00 |
| 1,000+ | ₹298.76 | ₹2,98,760.00 |
1 × ₹477.62
₹477.62
excl. GST
₹563.59 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DS2431Q+T&R
₹477.62 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Page write protection function;Noise suppression function
- Memory Size
- 1Kbit
- Voltage - Supply
- 2.8V~5.25V
- Data Retention - TDR (Year)
- 40 Years
- Write Cycle Time(tWC)
- 10ms
- Write Cycle Endurance
- 200,000 cycles
- Interface
- Single bus
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.063 g
Overview
The DS2431 is a 1024-bit, 1-Wire EEPROM chip organized as four memory pages of 256 bits each. Data is written to an 8-byte scratchpad, verified, and then copied to the EEPROM memory. As a special feature, the four memory pages can individually be write protected or put in EPROM-emulation mode, where bits can only be changed from a 1 to a 0 state. The DS2431 communicates over the single-conductor 1-Wire bus. The communication follows the standard 1-Wire protocol. Each device has its own unalterable and unique 64-bit ROM registration number that is factory lasered into the chip. The registration number is used to address the device in a multidrop, 1-Wire net environment.
Applications
- Accessory/PCB Identification
- Medical Sensor Calibration Data Storage
- Analog Sensor Calibration Including IEEE P1451.4 Smart Sensors
- Ink and Toner Print Cartridge Identification After-Market Management of Consumables
Key features
- 1024 Bits of EEPROM Memory Partitioned Into Four Pages of 256 Bits
- Individual Memory Pages Can Be Permanently Write Protected or Put in EPROM-Emulation Mode (Write to 0)
- Switchpoint Hysteresis and Filtering to Optimize Performance in the Presence of Noise
- IEC 1000-4-2 Level 4 ESD Protection (±8kV Contact, ±15kV Air, typ)
- Reads and Writes Over a Wide Voltage Range from 2.8V to 5.25V from -40℃ to +85℃
- Communicates to Host with a Single Digital Signal at 15.4kbps or 125kbps
