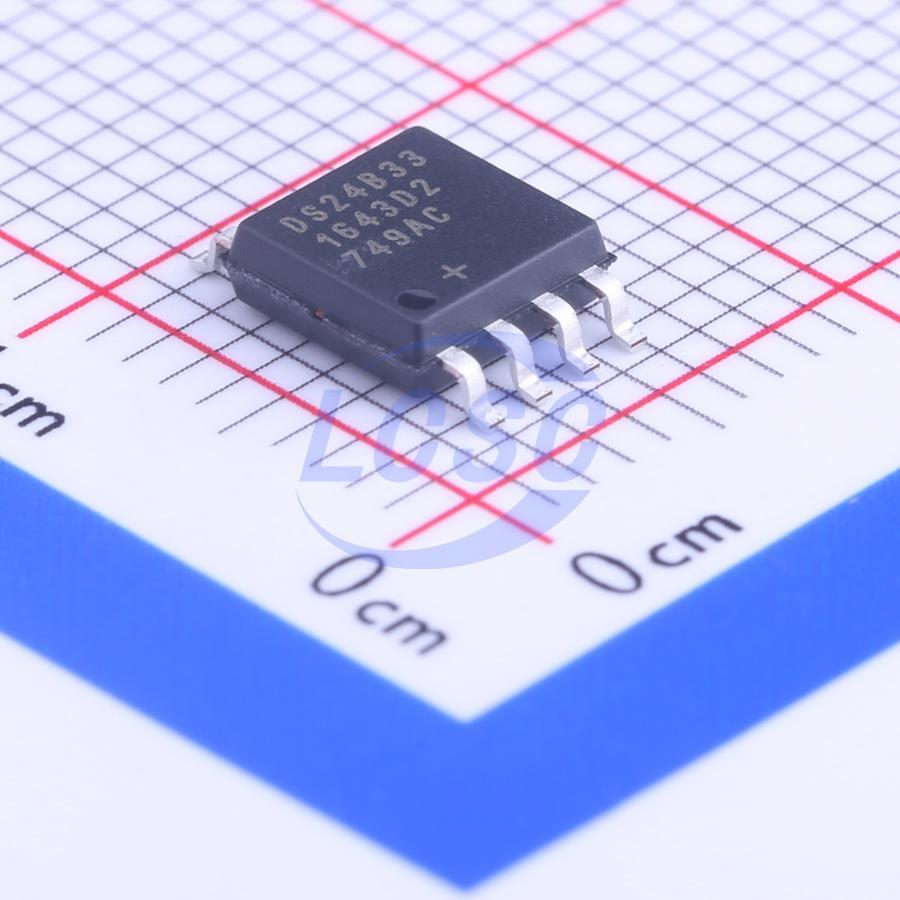

DS24B33S+T&R
4Kbit 2.88V~5.25V Single bus SOIC-8-208mil Memory RoHS
1-Wire 4Kb EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,472 in stock
#C117539
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹324.80 | ₹324.80 |
| 10+ | ₹275.30 | ₹2,753.00 |
| 30+ | ₹245.67 | ₹7,370.10 |
| 100+ | ₹216.05 | ₹21,605.00 |
| 500+ | ₹202.32 | ₹1,01,160.00 |
| 1,000+ | ₹196.00 | ₹1,96,000.00 |
1 × ₹324.80
₹324.80
excl. GST
₹383.26 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
DS24B33S+T&R
₹324.80 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Noise suppression function
- Memory Size
- 4Kbit
- Voltage - Supply
- 2.88V~5.25V
- Data Retention - TDR (Year)
- 40 Years
- Write Cycle Time(tWC)
- 2ms
- Write Cycle Endurance
- 200,000 cycles
- Interface
- Single bus
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.5 g
Overview
The DS24B33 is a 4096-bit, 1-Wire® EEPROM organized as 16 memory pages of 256 bits each. Data is written to a 32-byte scratchpad, verified, and then copied to the EEPROM memory. The DS24B33 communicates over a single-conductor 1-Wire bus. The communication follows the standard 1-Wire protocol. Each device has its own unalterable and unique 64-bit registration number that is factory programmed into the chip. The registration number is used to address the device in a multidrop 1-Wire net environment. The DS24B33 is software compatible to the DS2433.
Applications
- Storage of Calibration Constants
- Board Identification
- Storage of Product Revision Status
Key features
- 4096 Bits of Nonvolatile EEPROM Partitioned Into Sixteen 256-Bit Pages
- Read and Write Access is Highly Backward Compatible to the DS2433
- 256-Bit Scratchpad with Strict Read/Write Protocols Ensures Integrity of Data Transfer
- Unique, Factory-Programmed, 64-Bit Registration Number Ensures Error-Free Device Selection and Absolute Part Identity
- Switchpoint Hysteresis to Optimize Performance in the Presence of Noise
- Communicates to Host at 15.4kbps or 125kbps Using 1-Wire Protocol
- Low-Cost Through-Hole and SMD Packages
- Operating Range: +2.88 to +5.25V, -40℃ to +85℃
- IEC 1000-4-2 Level 4 ESD Protection (±8kV Contact, ±15kV Air, Typical) for IO Pin
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| DS24B33S+#C1523883MAXIM · SOIC-8-208mil | MAXIM | SOIC-8-208mil | On request | Price on request | Quote | |
