DSTECHDatasheet (PDF)

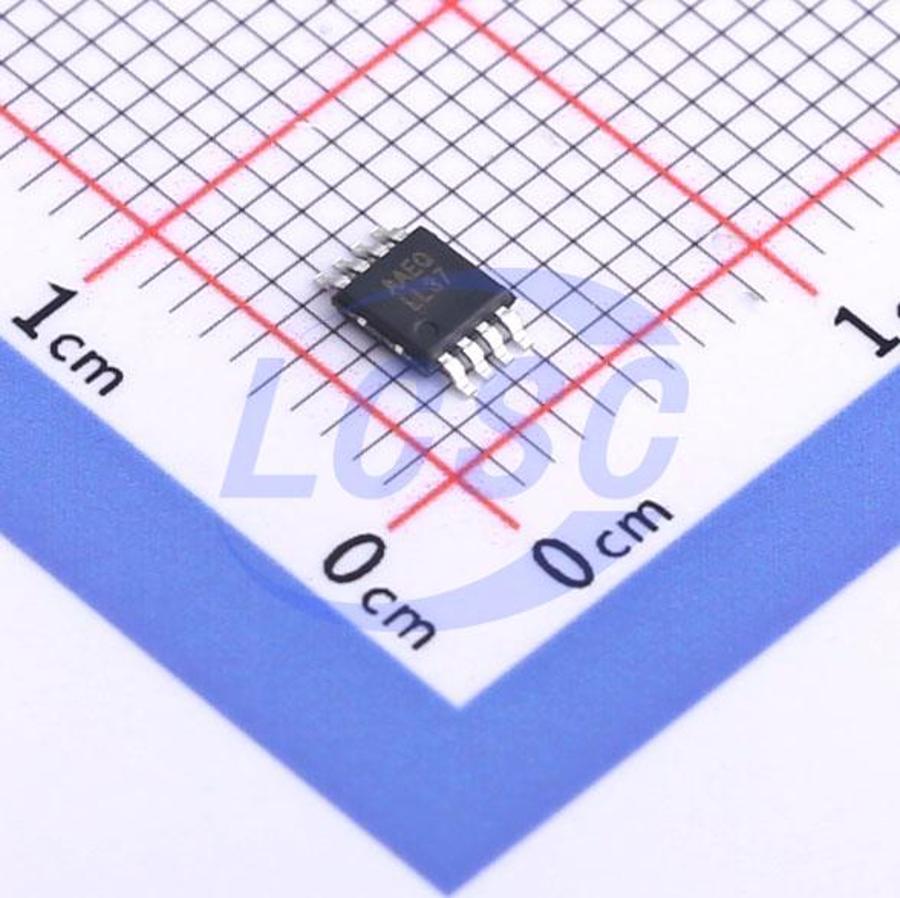

DS8201-50B8
Linear Voltage Regulator IC Positive Adjustable 1 Output 80mA EMSOP-8
EMSOP-8RoHSActive
Ultra-high Voltage Linear Step-down Converter
- Manufacturer
- DSTECH
- Manufacturer part #
- DS8201-50B8
- Store part #
- C5795648
- Package / case
- EMSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,951 in stock
#C5795648
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹142.46 | ₹142.46 |
| 10+ | ₹116.61 | ₹1,166.10 |
| 30+ | ₹102.51 | ₹3,075.30 |
| 100+ | ₹86.43 | ₹8,643.00 |
| 500+ | ₹79.26 | ₹39,630.00 |
| 1,000+ | ₹76.01 | ₹76,010.00 |
1 × ₹142.46
₹142.46
excl. GST
₹168.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DS8201-50B8
₹142.46 for 1 + GST
Specifications
- Output Voltage
- 5V~15V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Ta)
- Supply Current (Iq)
- 3uA
- Output Configuration
- Positive
- Output Current
- 80mA
- Operating Voltage
- 110V
- Features
- Enable control;Over Current Protection;Short Circuit Protection;Thermal shutdown
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.14 g
Overview
The DS8201 series is a family of ultra-high operating voltage linear regulator ICs featuring high thermal dissipation packaging, supporting input voltages up to 125V DC or transient. The ultra-low quiescent current of as low as 3μA makes it particularly suitable for battery-powered and long-duration standby system applications, helping reduce standby power consumption while effectively extending standby time and battery life. Pulling the EN pin low enables shutdown mode, in which quiescent current drops to as low as 100nA (typical). The DS8201 series supports ceramic output capacitors and operates stably across a wide input voltage range of 3V to 125V and throughout the full output load current range of 0mA to 80mA.
Applications
- Low-power microprocessors
- Wireless communication devices
- In-vehicle navigation systems
- Industrial machinery
- BMS systems
- Energy storage devices
- PV inverters
- New energy vehicles
Key features
- 3μA quiescent current (no load)
- ±1% output voltage accuracy
- 80mA output current capability
- 100nA shutdown current (optional version)
- Wide input voltage range: 3V to 125V
- Low dropout: 0.5V (at V₀ = 5V / I₀ = 50mA)
- Fixed output voltage options: 1.8V, 3.3V, 5V, 9V, 12V
- Adjustable output voltage: 1.8V – 24V
- Compatible with ceramic or tantalum capacitors
- Current limiting protection
- Over-temperature protection
- Available in SOT-23-5, SOT-89-3, ESOP-8, and MSOP-8 packages
