DSTECHDatasheet (PDF)

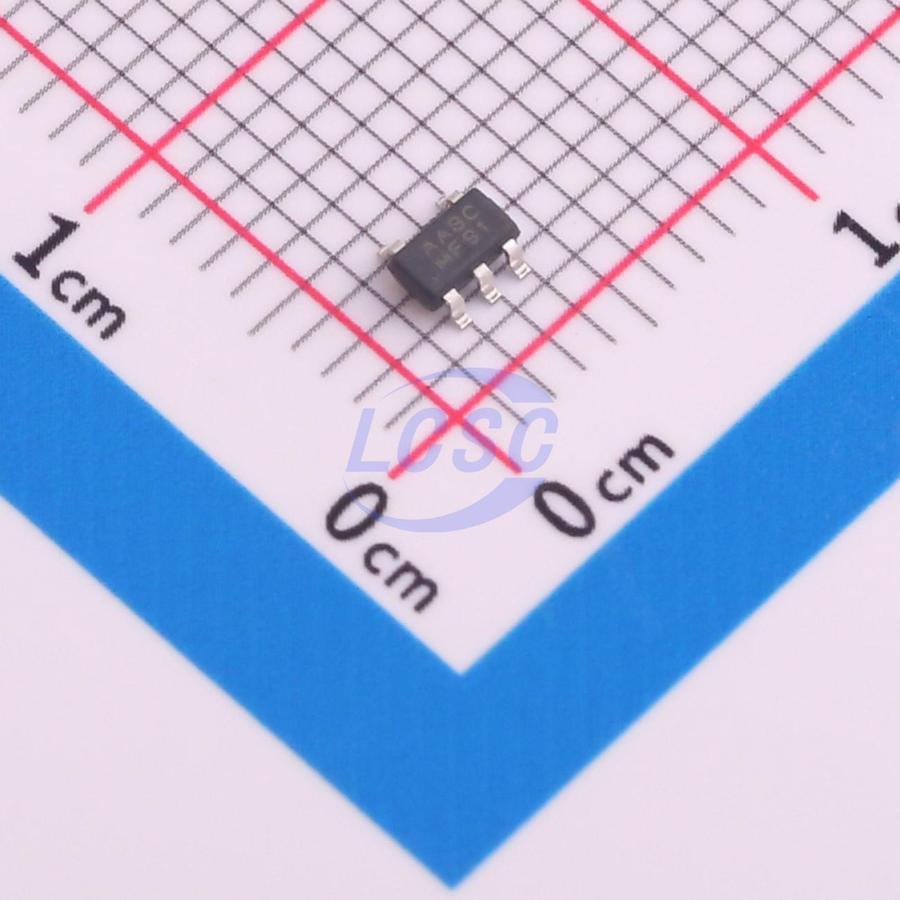

DS8301A-12S5
Positive SOT23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT23-5RoHSActive
30V, 400mA Low Dropout Voltage Linear Regulator
- Manufacturer
- DSTECH
- Manufacturer part #
- DS8301A-12S5
- Store part #
- C5884148
- Package / case
- SOT23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13,700 in stock
#C5884148
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.58 | ₹112.90 |
| 50+ | ₹17.60 | ₹880.00 |
| 150+ | ₹15.45 | ₹2,317.50 |
| 500+ | ₹12.78 | ₹6,390.00 |
| 3,000+ | ₹11.59 | ₹34,770.00 |
| 6,000+ | ₹10.88 | ₹65,280.00 |
5 × ₹22.58
₹112.90
excl. GST
₹133.22 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DS8301A-12S5
₹112.90 for 5 + GST
Specifications
- Output Voltage
- 1.2V;1.2V~12V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 2.2uA
- Output Configuration
- Positive
- Operating Voltage
- 30V
- Output Current
- 400mA
- Features
- Enable control;Over Current Protection;Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed;Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.053 g
Overview
The DS8301A series are a group of low-dropout (LDO) voltage regulators offering the benefits of wide input voltage range, low dropout voltage, low power consumption, and miniaturized packaging. Quiescent current of only 2.2μA makes these devices ideal for powering the battery-powered, always-on systems that require very little idle-state power dissipation to a longer service life. There is a shutdown mode by pulling the EN pin low. The shutdown current in this mode goes down to only 10nA (typical). The DS8301A series of linear regulators are stable with the ceramic output capacitor over its wide input range from 2V to 30V and the entire range of output load current (0mA to 400mA).
Applications
- Portable, Battery Powered Equipment
- Low Power Microcontrollers
- Laptop, Palmtops and PDAs
- Wireless Communication Equipment
- Audio/Video Equipment
- Car Navigation Systems
- Industrial Controls
- Weighting Scales
- Meters
- Home Automation
Key features
- 2.2μA Ground Current at no Load
- ±2% Output Accuracy
- 400mA Output Current
- 10nA Disable Current
- Wide Operating Input Voltage Range: 2V to 30V
- Dropout Voltage: 0.15V at 100mA / VOUT 5V
- Support Fixed Output Voltage 1.2V, 1.8V, 3.3V, 5V, 9V, 12V
- Adjustable Output Voltage Available by Specific Application
- Stable with Ceramic or Tantalum Capacitor
- Current Limit Protection
- Over-Temperature Protection
- SOT-23-5 Package Available
