DSTECHDatasheet (PDF)

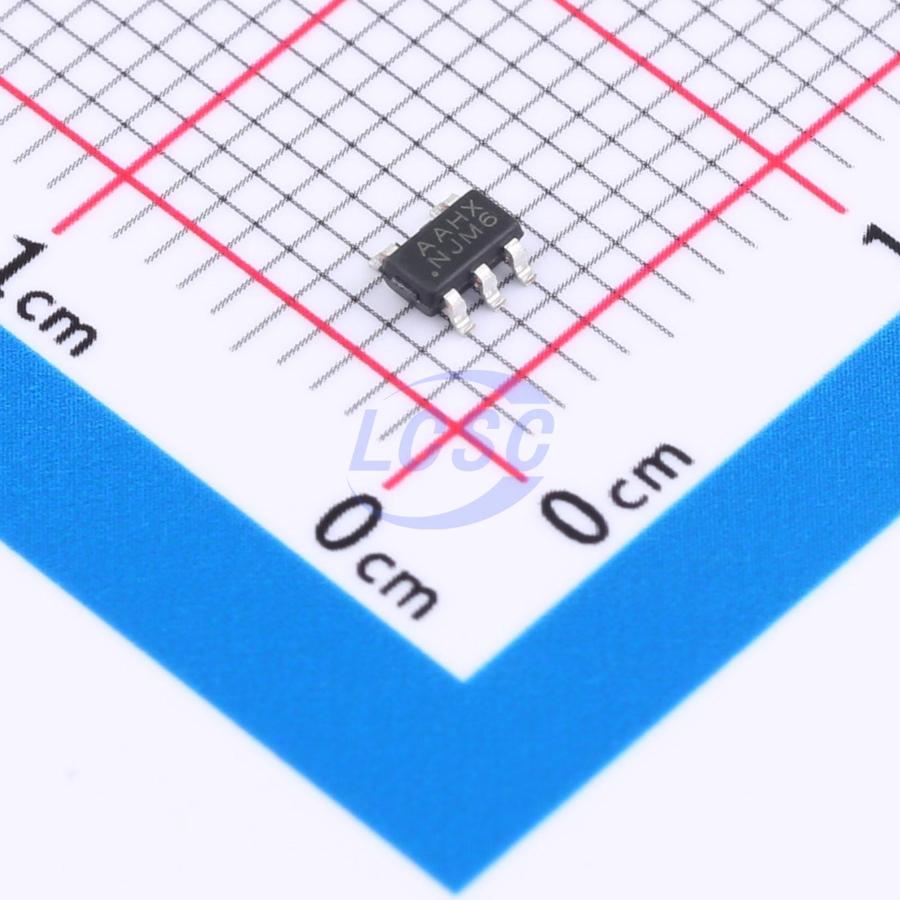

DS8403-33S5
Linear Voltage Regulator IC Positive Fixed 1 Output 500mA SOT-23-5
SOT-23-5RoHSActive
40V, 500mA Low Dropout Voltage Linear Regulator
- Manufacturer
- DSTECH
- Manufacturer part #
- DS8403-33S5
- Store part #
- C48533058
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,395 in stock
#C48533058
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.13 | ₹50.65 |
| 50+ | ₹8.02 | ₹401.00 |
| 150+ | ₹6.96 | ₹1,044.00 |
| 500+ | ₹6.17 | ₹3,085.00 |
| 3,000+ | ₹5.52 | ₹16,560.00 |
| 6,000+ | ₹5.20 | ₹31,200.00 |
5 × ₹10.13
₹50.65
excl. GST
₹59.77 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DS8403-33S5
₹50.65 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 36V
- Features
- Enable control;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.034 g
Overview
The DS8403 series are low-dropout (LDO) voltage regulators featuring a wide input voltage range, low dropout voltage, low power consumption, and compact packaging. With a quiescent current of only 2µA, they are ideal for powering battery-operated always-on systems that require extremely low idle-state power consumption for extended battery life. Pulling the EN pin low activates shutdown mode, in which the typical shutdown current is only 100nA. This series of linear regulators remains stable with ceramic output capacitors across a wide input voltage range of 2.5V to 40V and an output load current range of 0mA to 500mA.
Applications
- Portable battery-powered devices
- Low-power microcontrollers
- Laptops, handheld PCs, and PDAs
- Wireless communication devices
- Audio/video devices
Key features
- Ground current 2μA at no load
- Output accuracy ±1%
- Peak output current 500mA
- Shutdown current 100nA
- Wide input voltage range: 2.5V to 40V
- Dropout voltage: 0.35V at 100mA output current, 5V output voltage
- Fixed output voltages: 1.8V, 3.3V, 5V
- Adjustable output voltage available for specific applications
- Stable with ceramic or tantalum capacitors
- Current limiting protection
- Over-temperature protection
- Available in SOT-23-5 and DFN2x2-6L packages
