DSTECHDatasheet (PDF)

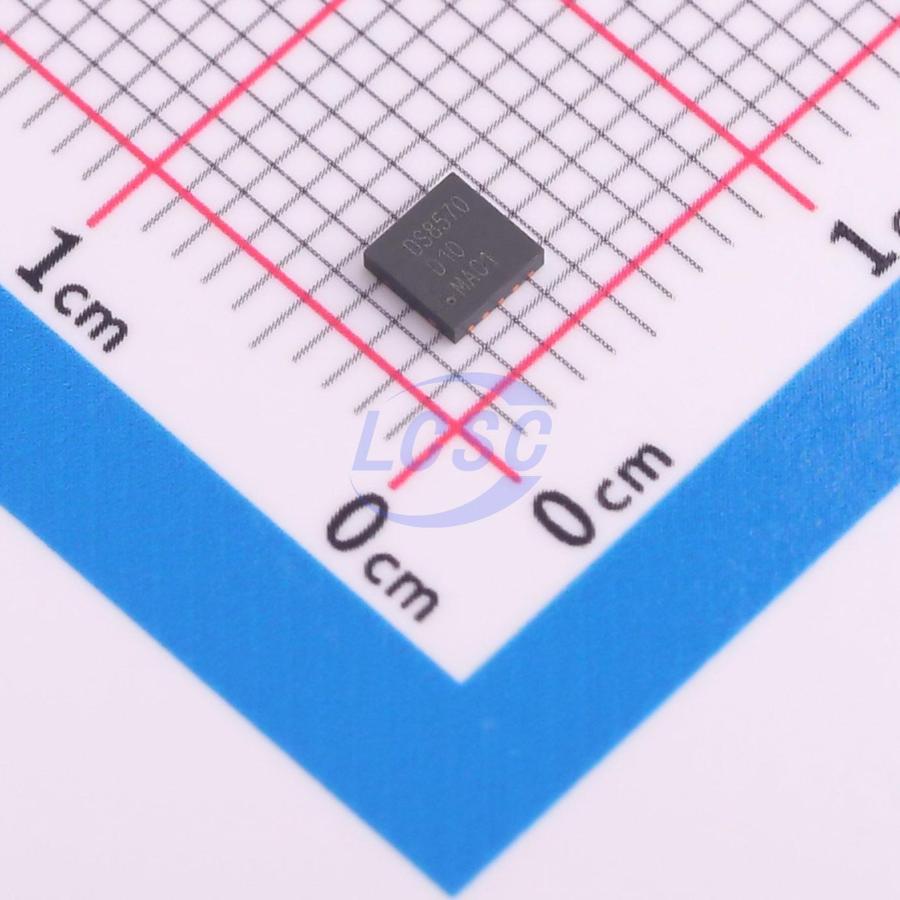

DS8570D10
800mV~5.5V Positive Adjustable DFN3x3-10L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
DFN3x3-10LRoHSActive
3A, Ultra-Low Dropout Voltage Regulator
- Manufacturer
- DSTECH
- Manufacturer part #
- DS8570D10
- Store part #
- C5884246
- Package / case
- DFN3x3-10L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,575 in stock
#C5884246
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.35 | ₹116.75 |
| 50+ | ₹18.10 | ₹905.00 |
| 150+ | ₹15.85 | ₹2,377.50 |
| 500+ | ₹13.04 | ₹6,520.00 |
| 3,000+ | ₹11.80 | ₹35,400.00 |
| 6,000+ | ₹11.05 | ₹66,300.00 |
5 × ₹23.35
₹116.75
excl. GST
₹137.76 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DS8570D10
₹116.75 for 5 + GST
Specifications
- Output Voltage
- 800mV~5.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 1.2mA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 3A
- Features
- Enable control;Operating status indication;Over Current Protection;Short Circuit Protection;Thermal shutdown
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.209 g
Overview
The DS8570 is a high performance positive voltage regulator designed for use in applications requiring very low input voltage and very low dropout voltage at up to 3A. It operates with a VIN as low as 1V and VDD voltage 3V with programmable output voltage as low as 0.8V. The DS8570 features ultra low dropout, ideal for applications where VOUT is very close to VIN. Additionally, it has an enable pin to further reduce power dissipation while shutdown. The DS8570 provides excellent regulation over variations in line, load and temperature. The DS8570 provides a power good signal to indicate if the voltage level of VO reaches 90% of its rating value.
Applications
- Notebook PC Applications
- Motherboard Applications
- Graphics Cards Applications
Key features
- Output Current up to 3A
- High Accuracy ADJ Voltage 1.5%
- Dropout Voltage 350mV @ 3A Typically
- VOUT Power Good Signal
- VOUT Pull Low Resistance when Disable
- Current Limiting Protection
- Thermal Shutdown Protection
- DFN3x3-10L & ESOP-8 Package Available
