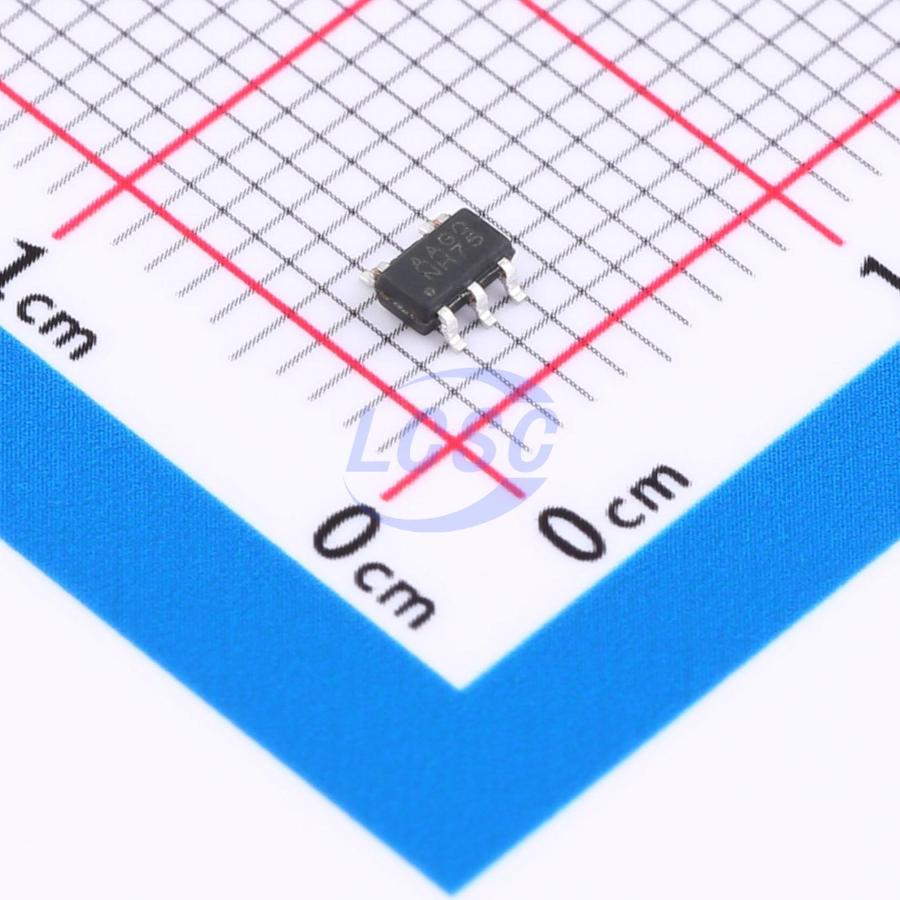

DSTECH

DS8572-12S5

Linear Voltage Regulator IC Positive Fixed 1 Output 600mA SOT-23-5

SOT-23-5RoHSActive

600mA Low Dropout Voltage Linear Regulator

Manufacturer: DSTECH
Manufacturer part #: DS8572-12S5
Store part #: C48533028
Package / case: SOT-23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,760 in stock

#C48533028

Stock & price checked 32 h ago

Quantity	Unit price	Pack price
20+	₹4.11	₹82.20
200+	₹3.20	₹640.00
600+	₹2.70	₹1,620.00
3,000+	₹2.39	₹7,170.00
9,000+	₹2.13	₹19,170.00
21,000+	₹2.00	₹42,000.00

Quantity (min 20, multiples of 20)

20 × ₹4.11

₹82.20

excl. GST

₹97.00 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

DS8572-12S5

₹82.20 for 20 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 1.2V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 30uA
Output Configuration: Positive
Operating Voltage: 6V
Output Current: 600mA
Features: Enable control;Over Current Protection;Short Circuit Protection;Thermal shutdown
Output Type: Fixed

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 20 (multiples of 20)
Unit weight: 0.056 g

Overview

This series is a family of low-dropout voltage regulators featuring a wide input voltage range, low dropout voltage, low power consumption, and compact packaging. With fast transient response, they are well suited for applications requiring rapid instantaneous load transitions. By selecting a model with an enable pin and pulling it low, shutdown mode can be activated, with a typical shutdown current of only 100nA. These linear regulators maintain stability with ceramic output capacitors across a wide input voltage range and the full output load current range.

Applications

Portable battery-powered equipment
Low-power microcontrollers
Laptops, handheld PCs, and PDAs
Wireless communication devices
Audio/video equipment

Key features

Fast transient response
±2% output accuracy
600mA output current
100nA shutdown current (optional)
Wide input voltage range: 2.3V to 6V
Dropout voltage: 0.06V at 100mA output current, 3.3V output voltage
Fixed output voltage options: 0.5V, 0.8V, 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V
Stable with ceramic or tantalum capacitors
Current limiting protection
Over-temperature protection
Available in SOT-23-3, SOT-23-5, DFN1x1-4L, and DFN2x2-6L packages
