DSTECH

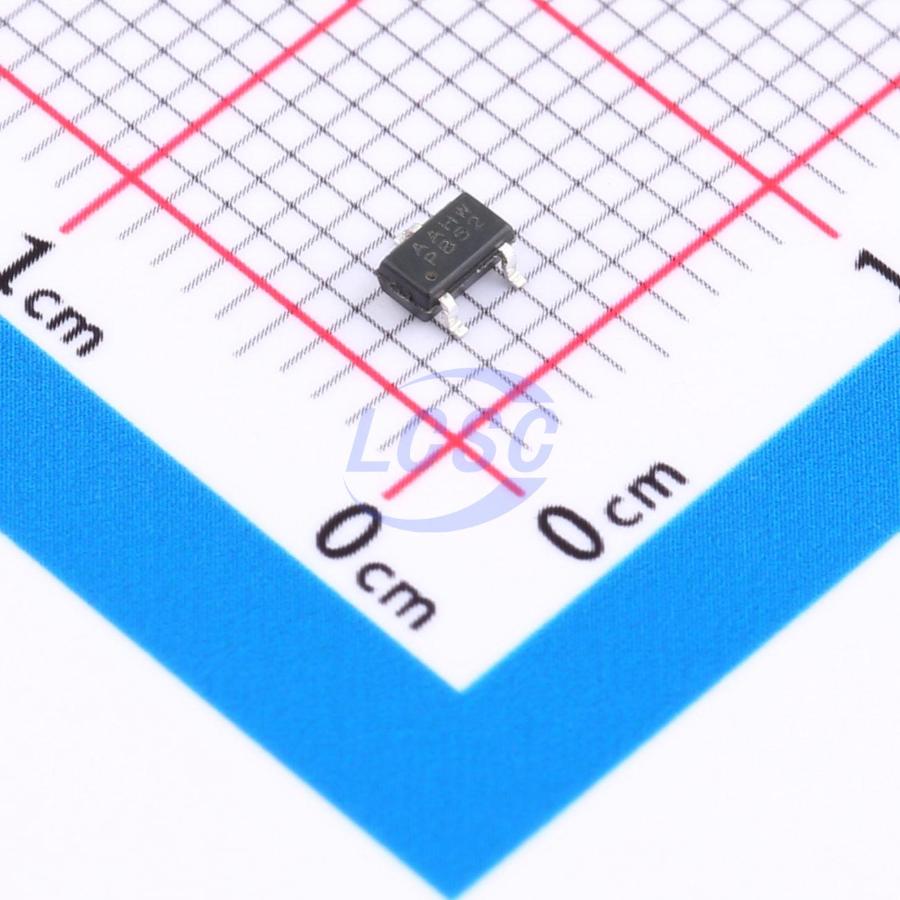

DS8575-33S3

Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-3

SOT-23-3RoHSActive

Low Dropout Voltage Linear Regulator

Manufacturer: DSTECH
Manufacturer part #: DS8575-33S3
Store part #: C48533045
Package / case: SOT-23-3
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,230 in stock

#C48533045

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
10+	₹5.93	₹59.30
100+	₹4.68	₹468.00
300+	₹4.06	₹1,218.00
3,000+	₹3.60	₹10,800.00
6,000+	₹3.23	₹19,380.00
9,000+	₹3.04	₹27,360.00

Quantity (min 10, multiples of 10)

10 × ₹5.93

₹59.30

excl. GST

₹69.97 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

DS8575-33S3

₹59.30 for 10 + GST

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 250nA
Output Configuration: Positive
Operating Voltage: 5.5V
Output Current: 300mA
Features: Enable control;Over Current Protection;Thermal shutdown;Short Circuit Protection
Output Type: Fixed

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.035 g

Overview

The DS8575 series is a family of low-dropout linear regulators featuring a wide input voltage range (1.2V to 5.5V), low dropout voltage, low power consumption, and compact packaging. With a quiescent current of only 0.25µA, these devices are ideal for powering battery-operated, always-on systems that require extremely low idle-state power dissipation to extend battery life. A shutdown mode is available by selecting a variant with an EN pin and pulling it low. In this mode, the shutdown current can be as low as 10nA typical. The series maintains stability with ceramic output capacitors across the full input voltage range (1.2V to 5.5V) and entire output load current range (0mA to 300mA).

Applications

Portable battery-powered devices
Low-power microcontrollers
Laptops, handheld PCs, and PDAs
Wireless communication devices
Audio/video equipment
In-vehicle navigation systems

Key features

Quiescent ground current: 0.25μA (no load)
Output accuracy: ±1%
Output current: 300mA
Shutdown current: 10nA (optional)
Wide input voltage range: 1.2V to 5.5V
Dropout voltage: 0.12V at 100mA output, VOUT = 3.3V
Fixed output voltage options: 1.05V, 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V
Stable with ceramic or tantalum capacitors
Current limiting protection
Over-temperature protection
Available in SSOT-23, SOT-23-3, SOT-23-5, SC-70-5, DFN1x1-4L, and DFN2x2-6L packages
