DSTECHDatasheet (PDF)

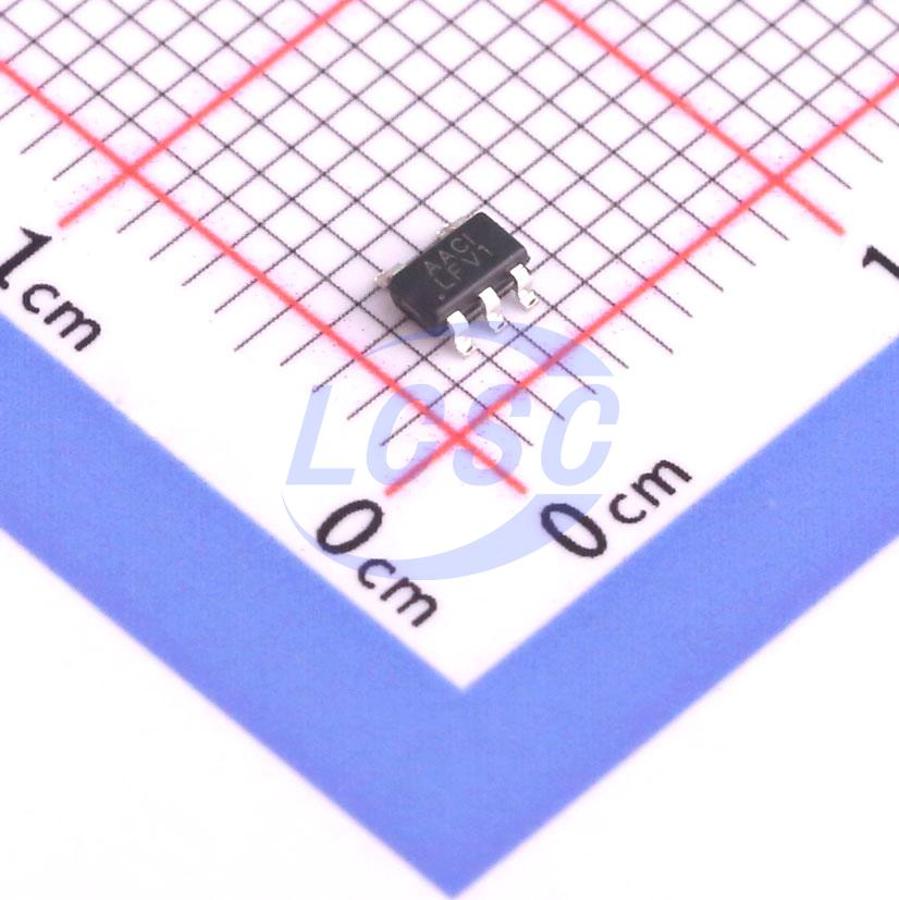

DS8601-33S5
Linear Voltage Regulator IC Positive 1 Output 200mA SOT23-5
SOT23-5RoHSActive
Low Dropout (LDO) Linear Step-Down Converter
- Manufacturer
- DSTECH
- Manufacturer part #
- DS8601-33S5
- Store part #
- C5795656
- Package / case
- SOT23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,120 in stock
#C5795656
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.17 | ₹110.85 |
| 50+ | ₹17.24 | ₹862.00 |
| 150+ | ₹15.14 | ₹2,271.00 |
| 500+ | ₹12.50 | ₹6,250.00 |
| 3,000+ | ₹11.32 | ₹33,960.00 |
| 6,000+ | ₹10.62 | ₹63,720.00 |
5 × ₹22.17
₹110.85
excl. GST
₹130.80 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DS8601-33S5
₹110.85 for 5 + GST
Specifications
- Output Voltage
- 3.3V;1.8V~12V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 2.2uA
- Output Configuration
- Positive
- Operating Voltage
- 55V
- Output Current
- 200mA
- Features
- Enable control;Over Current Protection;Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed;Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.02 g
Overview
The DS8601 series is a family of low-dropout (LDO) regulators featuring a wide input voltage range of 2V to 55V, low dropout voltage, low power consumption, and compact packaging. The DS8601's quiescent current as low as 2.2μA makes it particularly suitable for battery-powered and long-term standby applications, helping reduce system standby power consumption and effectively extending standby time and battery life. The DS8601 features an EN enable function — pulling the EN pin low enters shutdown mode, in which quiescent current drops to as low as 10nA (typical). The DS8601 series supports ceramic output capacitors and operates stably across the full 2V to 55V input voltage range and output load current range of 0mA to 200mA.
Applications
- Handheld, battery-powered devices
- Low-power microprocessors
- Laptop, palmtop, and PDA wireless communication devices
- Audio/video equipment
- In-vehicle navigation systems
- Industrial control
- Smart meters
- Smart home
Key features
- 2.2μA quiescent current (no load)
- ±1% output voltage accuracy
- 200mA output current capability
- 10nA shutdown current
- Wide input voltage range: 2V to 55V
- Low dropout: 0.66V (at ΔVO = 5V / IO = 100mA)
- Fixed output voltage options: 1.8V, 3.3V, 5V, 9V, 12V
- Adjustable output voltage support
- Compatible with ceramic or tantalum capacitors
- Current limiting protection
- Over-temperature protection
- Available in SOT-23-5 and SOT-89-3 packages
