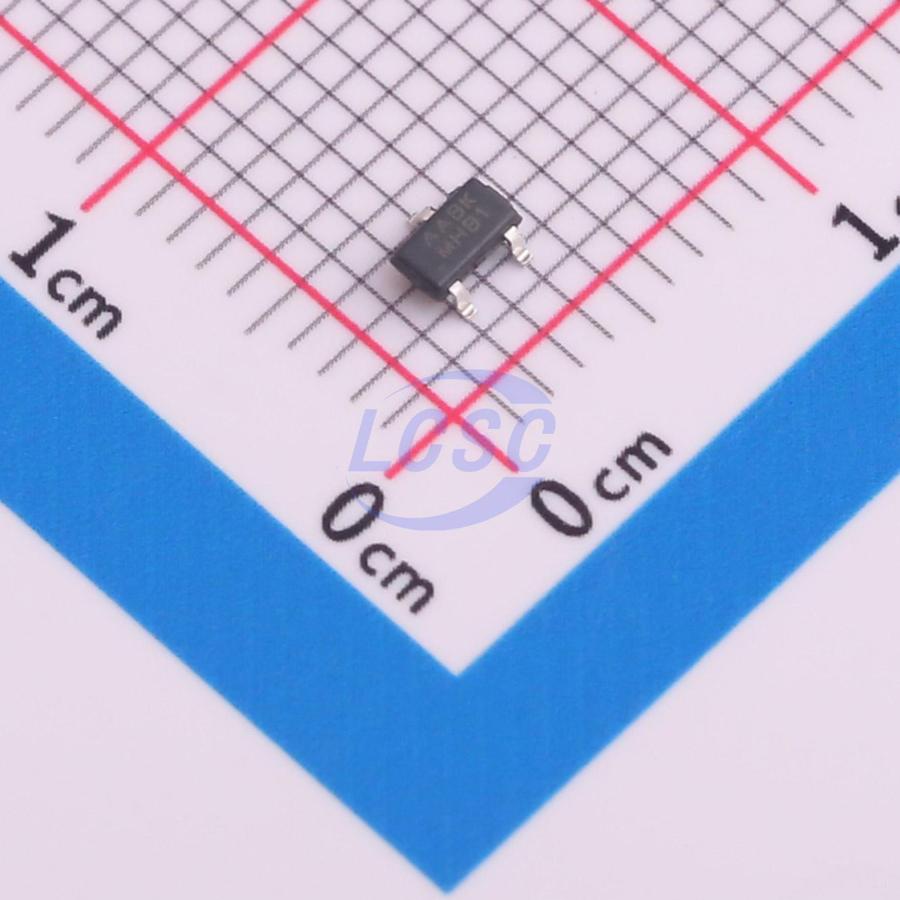

DS8604-33S3
Linear Voltage Regulator IC Positive Fixed 1 Output 200mA SOT-23-3
SOT-23-3RoHSActive
55V/200mA Low Dropout (LDO) Linear Step-Down Converter
- Manufacturer
- DSTECH
- Manufacturer part #
- DS8604-33S3
- Store part #
- C5884200
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,995 in stock
#C5884200
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.44 | ₹77.20 |
| 50+ | ₹12.20 | ₹610.00 |
| 150+ | ₹10.58 | ₹1,587.00 |
| 500+ | ₹9.38 | ₹4,690.00 |
| 3,000+ | ₹8.40 | ₹25,200.00 |
| 6,000+ | ₹7.92 | ₹47,520.00 |
5 × ₹15.44
₹77.20
excl. GST
₹91.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DS8604-33S3
₹77.20 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2.2uA
- Output Configuration
- Positive
- Operating Voltage
- 55V
- Output Current
- 200mA
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.052 g
Overview
The DS8604 series is a family of low dropout (LDO) regulators featuring a wide input voltage range of 2V to 55V, low dropout voltage, low power consumption, and compact packaging. With a quiescent current as low as 2.2µA, the DS8604 is particularly well-suited for battery-powered and long-term standby applications, helping to reduce system standby power consumption and effectively extend standby time and battery life. The DS8604 series supports ceramic output capacitors and operates stably across the full 2V to 55V input voltage range and output load current range of 0mA to 200mA.
Applications
- Handheld, battery-powered devices
- Low-power microprocessors
- Laptops, palmtop computers, and PDAs
- Wireless communication devices
- Audio/video equipment
- In-vehicle navigation systems
- Industrial control
- Smart meters
- Smart home
Key features
- 2.2µA quiescent current (no load)
- ±1% output voltage accuracy
- 200mA output current capability
- Wide input voltage range: 2V to 55V
- Low dropout: 0.66V (at ΔVO = 5V / IO = 100mA)
- Fixed output voltages: 1.8V, 3.3V, 5V, 9V, 12V
- Compatible with ceramic or tantalum capacitors
- Current limiting protection
- Over-temperature protection
- Available in SOT-23-3, SOT-23-5, SOT-89-3 packages
