DSTECHDatasheet (PDF)

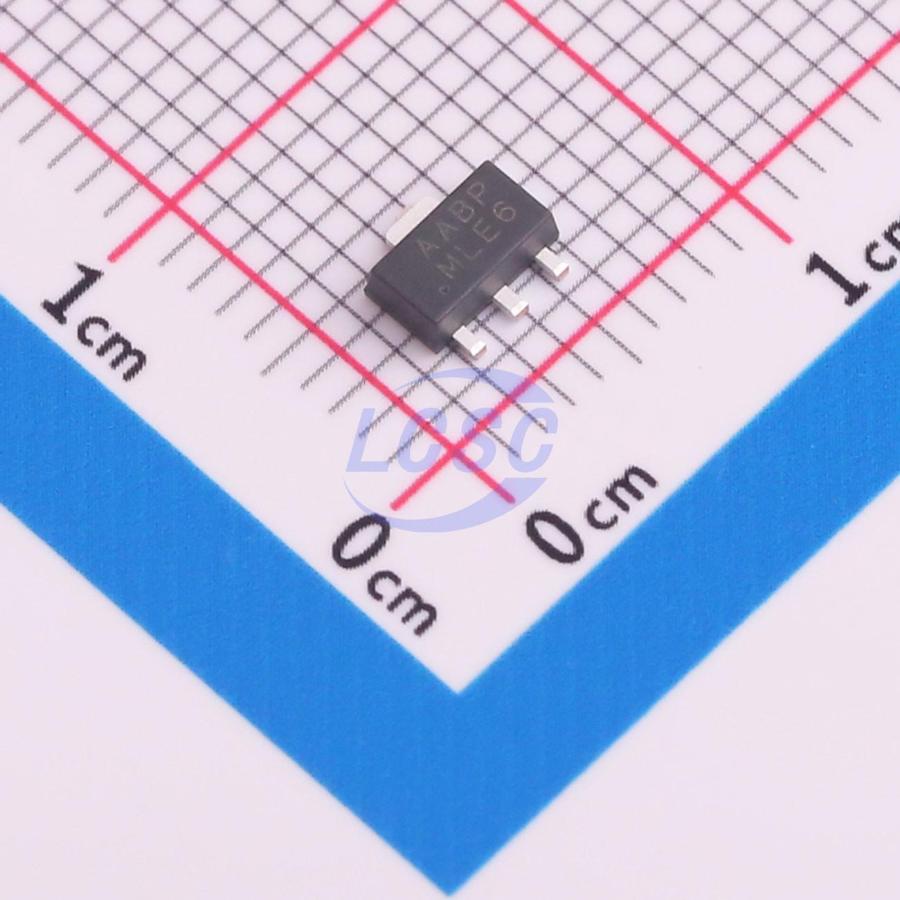

DS8606-A1A3
Linear Voltage Regulator IC Positive Fixed 1 Output 200mA SOT-89-3
SOT-89-3RoHSActive
IC REG LINEAR 12V 200mA SOT-89-3
- Manufacturer
- DSTECH
- Manufacturer part #
- DS8606-A1A3
- Store part #
- C5884214
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,965 in stock
#C5884214
Stock & price checked 29 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.48 | ₹87.40 |
| 50+ | ₹13.67 | ₹683.50 |
| 150+ | ₹11.77 | ₹1,765.50 |
| 1,000+ | ₹10.35 | ₹10,350.00 |
| 2,000+ | ₹9.21 | ₹18,420.00 |
| 5,000+ | ₹8.64 | ₹43,200.00 |
5 × ₹17.48
₹87.40
excl. GST
₹103.13 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
DS8606-A1A3
₹87.40 for 5 + GST
Specifications
- Output Voltage
- 12V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 4.2uA
- Output Configuration
- Positive
- Operating Voltage
- 55V
- Output Current
- 200mA
- Features
- Over Current Protection;Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.172 g
Overview
The DS8606 series is a family of low-dropout (LDO) regulators featuring a wide input voltage range of 2V to 55V, low dropout voltage, low quiescent current, and compact packaging. With a quiescent current as low as 2.2μA, the DS8606 is particularly well-suited for battery-powered systems requiring extended standby operation, helping to reduce system standby power consumption and effectively prolong both standby time and battery life. The DS8606 series supports ceramic output capacitors and operates stably across the full 2V to 55V input voltage range and throughout the entire output load current range of 0mA to 200mA.
Applications
- Handheld, battery-powered devices
- Low-power microprocessors
- Laptops, palmtops, and PDAs
- Wireless communication devices
- Audio/video devices
Key features
- 2.2μA quiescent current (no load)
- ±1% output voltage accuracy
- 200mA output current capability
- Wide input voltage range: 2V to 55V
- Low dropout: 0.66V (Vo = 5V / Io = 100mA)
- Fixed output voltage options: 1.8V, 3.3V, 5V, 9V, 12V
- Compatible with ceramic or tantalum capacitors
- Current limiting protection
- Over-temperature protection
- Available in SOT-89-3 package
