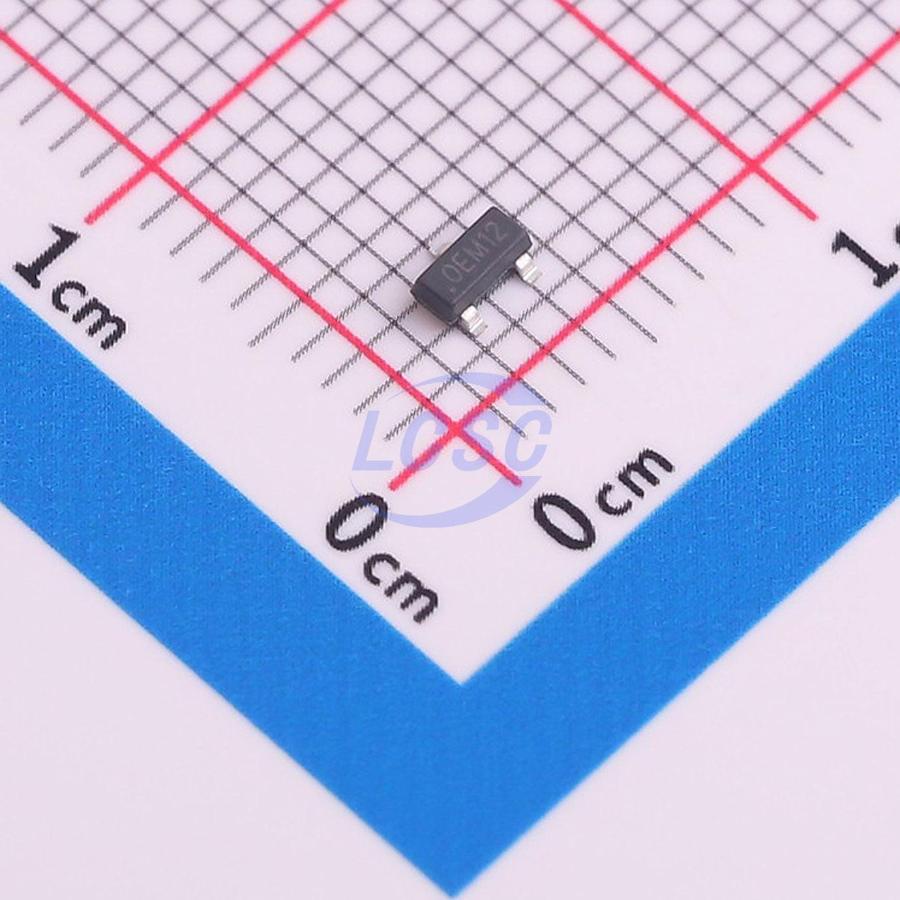

DSTECHDatasheet (PDF)
DS9809PRSS3
Supervisor Open Drain 1 Channel SSOT-23
SSOT-23RoHSActive
Low quiescent current and high-precision voltage detector
- Manufacturer
- DSTECH
- Manufacturer part #
- DS9809PRSS3
- Store part #
- C5884226
- Package / case
- SSOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,100 in stock
#C5884226
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.96 | ₹99.20 |
| 200+ | ₹3.86 | ₹772.00 |
| 600+ | ₹3.25 | ₹1,950.00 |
| 3,000+ | ₹2.90 | ₹8,700.00 |
| 9,000+ | ₹2.58 | ₹23,220.00 |
| 21,000+ | ₹2.41 | ₹50,610.00 |
20 × ₹4.96
₹99.20
excl. GST
₹117.06 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DS9809PRSS3
₹99.20 for 20 + GST
Specifications
- Reset Timeout
- 210ms
- output type
- Push-pull
- Operating Temperature
- -40℃~+105℃@(TA)
- Reset Active Level
- Active Low
- standby current
- 1.5uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage Detector
- Threshold Voltage
- 2.93V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.048 g
Overview
The DS9809 series are high-precision voltage detectors developed using CMOS technology. The detection voltage is internally fixed with ±1.5% accuracy. Two output types are available — open-drain and push-pull — both with active-low output. Ultra-low power consumption and compact packaging meet the requirements of portable device applications.
Applications
- Battery checker
- Power failure detector
- Portable equipment
- Power monitor for cameras, video equipment, and communication devices
- CPU reset detection for micro calculators
Key features
- Ultra-low quiescent current down to 1.5μA
- High-accuracy detection voltage ±1.5%
- Open-Drain and Push-Pull output options
- Reset guaranteed down to VCC = 1.0V
- Available in SOT-23-3 and SSOT-23 packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DS9809PSSS3#C5884228DSTECH · SSOT-23 | DSTECH | SSOT-23 | 1,640 | ₹4.96 · 1,640 in stock | View |
