LittelfuseDatasheet (PDF)

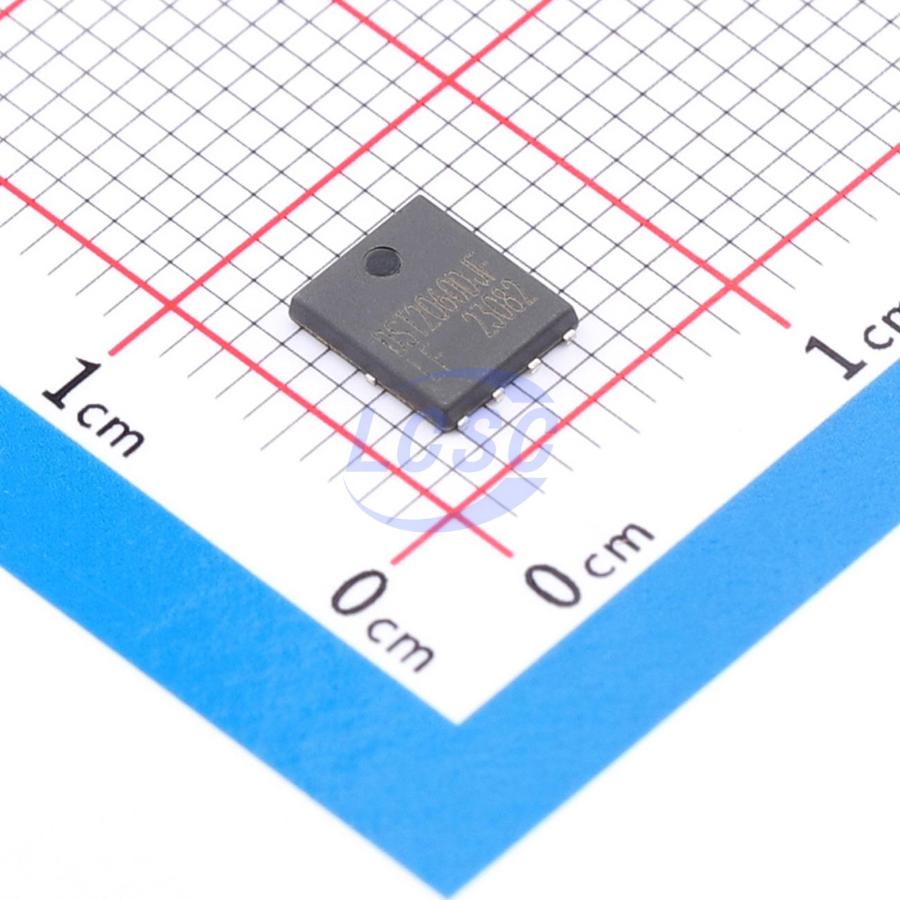

DST2060DJF
1 Independent 60V 750mV@20A 20A PDFN-8(5x6) Single Diodes RoHS
PDFN-8(5x6)ROHS3 CompliantActive
- Manufacturer
- Littelfuse
- Manufacturer part #
- DST2060DJF
- Store part #
- C6934339
- Package / case
- PDFN-8(5x6)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C6934339
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹509.13 | ₹509.13 |
| 10+ | ₹439.16 | ₹4,391.60 |
| 30+ | ₹397.44 | ₹11,923.20 |
| 100+ | ₹355.50 | ₹35,550.00 |
| 500+ | ₹335.95 | ₹1,67,975.00 |
| 1,000+ | ₹327.26 | ₹3,27,260.00 |
1 × ₹509.13
₹509.13
excl. GST
₹600.77 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DST2060DJF
₹509.13 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 60V
- Voltage - Forward(Vf@If)
- 750mV@20A
- Reverse Leakage Current (Ir)
- 1mA@60V
- Non-Repetitive Peak Forward Surge Current
- 150A
- Current - Rectified
- 20A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.085 g
Overview
Littelfuse DST series ultra-low VF Schottky barrier rectifiers are designed to meet the general requirements of commercial and industrial applications by offering high-temperature, low-leakage, and lower VF characteristics. Suitable for high-frequency switching mode power supplies, freewheeling diodes, and polarity protection diodes.
Applications
- Switch-mode power supplies
- DC/DC converters
- Freewheeling diodes
- Polarity protection diodes
Key features
- Ultra-low forward voltage drop
- High-frequency operation
- High junction temperature capability
- Guard ring for enhanced durability and long-term reliability
- PDFNWB5x6 - 8L single-chip package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | V30KM120-M3/H#C20039083VISHAY · FlatPAK5x6-8L | VISHAY | FlatPAK5x6-8L | 31 | ₹124.96 · 31 in stock | View |
 | STPS30M60DJF-TR#C154533ST · PowerFLAT(5x6) | ST | PowerFLAT(5x6) | 13 | ₹175.55 · 13 in stock | View |
 | STPS30H100DJF-TR#C2969851ST · PowerFLAT5x6-8 | ST | PowerFLAT5x6-8 | 1,495 | ₹173.67 · 1,495 in stock | View |
 | SBDA20100#C5295510JSCJ · PDFNWB-8L(5x6) | JSCJ | PDFNWB-8L(5x6) | 2,525 | ₹31.26 · 2,525 in stock | View |
 | HBR20200P5#C7428008NH · PDFN5x6-8L | NH | PDFN5x6-8L | 170 | ₹30.73 · 170 in stock | View |
