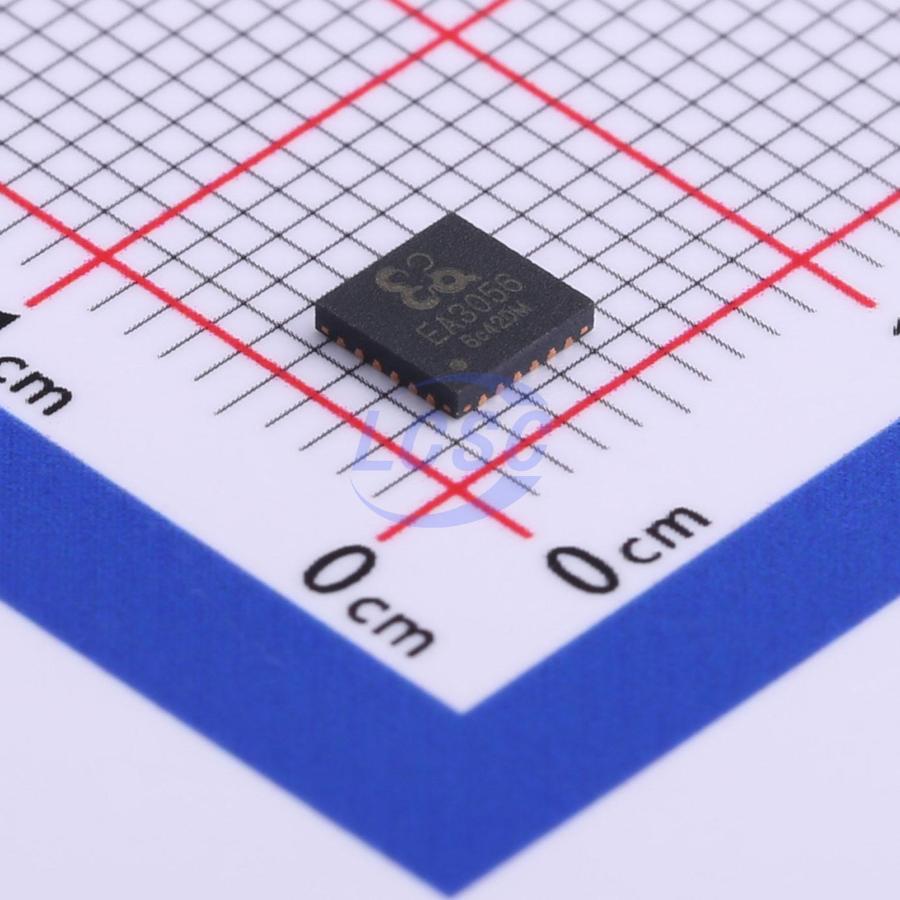

Everanalog IC design

EA3056QDR

I2C QFN-24-EP(4x4) Power Management - Specialized RoHS

QFN-24-EP(4x4)ROHS CompliantActive

3CH DC/DC + 1CH LDO PMIC

Manufacturer: Everanalog IC design
Manufacturer part #: EA3056QDR
Store part #: C575411
Package / case: QFN-24-EP(4x4)
Category: Power Management - Specialized
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,778 in stock

#C575411

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
3+	₹75.97	₹227.91
30+	₹60.99	₹1,829.70
90+	₹53.61	₹4,824.90
300+	₹45.80	₹13,740.00
1,500+	₹41.46	₹62,190.00
3,000+	₹39.07	₹1,17,210.00

Quantity (min 3, multiples of 3)

3 × ₹75.97

₹227.91

excl. GST

₹268.93 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

EA3056QDR

₹227.91 for 3 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Cycle-by-cycle current limiting;Hiccup current limiting;Dynamic voltage scaling
Operating Temperature: -40℃~+125℃
Interface: I2C
Voltage - Supply: 2.7V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 3 (multiples of 3)
Unit weight: 0.143 g

Overview

The EA3056 is a 4-CH power management IC for applications powered by one Li-Ion battery or a DC 5V adapter. It integrates three synchronous buck regulators and one N-MOS LDO in a single chip. The internal compensation architecture simplifies the application circuit design. Besides, the independent enable control makes the designer have the greatest flexibility to optimize timing for power sequencing purposes. The EA3056 is available in a 24 pin QFN 4x4 package.
