Everanalog IC designDatasheet (PDF)

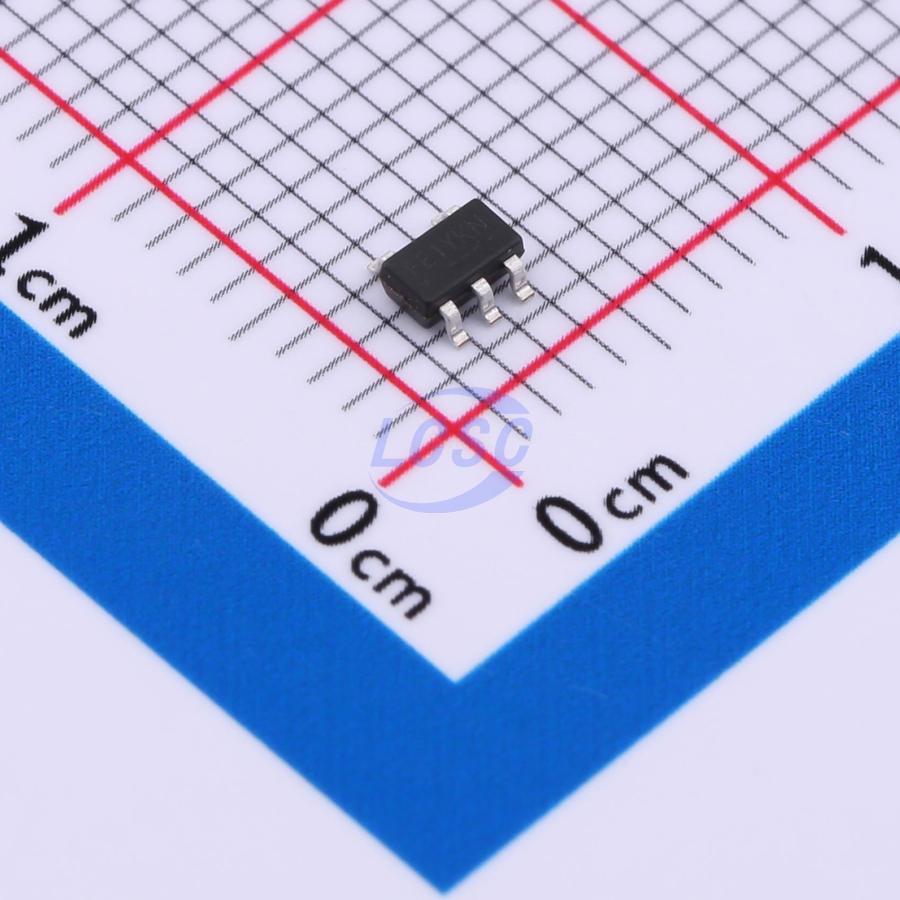

EA910418T5R
1.8V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS CompliantActive
300mA, Ultra-low noise, Ultra-Fast CMOS LDO Regulator
- Manufacturer
- Everanalog IC design
- Manufacturer part #
- EA910418T5R
- Store part #
- C5213771
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C5213771
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.60 | ₹86.00 |
| 100+ | ₹6.88 | ₹688.00 |
| 300+ | ₹6.02 | ₹1,806.00 |
| 3,000+ | ₹5.16 | ₹15,480.00 |
| 6,000+ | ₹4.64 | ₹27,840.00 |
| 9,000+ | ₹4.38 | ₹39,420.00 |
10 × ₹8.60
₹86.00
excl. GST
₹101.48 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
EA910418T5R
₹86.00 for 10 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 130uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 5.5V
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection;Thermal shutdown;Output discharge
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.04 g
Overview
The EA9104 is designed for portable RF and wireless applications with demanding performance and space requirements. The EA9104 performance is optimized for battery-powered systems to deliver ultra low noise and low quiescent current. Regulator ground current increases only slightly in dropout, further prolonging the battery life. The EA9104 also works with low-ESR ceramic capacitors, reducing the amount of board space necessary for power applications, critical in hand-held wireless devices. The EA9104 consumes less than 0.1uA in shutdown mode and has fast turn-on time less than 50us. The other features include ultra low dropout voltage, high output accuracy, current limiting protection and high ripple rejection ratio. The EA9104 is available in the 5-lead of SOT23-5 package.
Applications
- Portable Media Players/MP3 players
- Cellular and Smart Mobile Phone
- LCD TVs and Flat TVs
- Wireless System
Key features
- Ultra-Low-Noise for RF Application
- 2V to 5.5V Input Voltage Range
- Low Dropout: 210mV@300mA
- 300mA Output Current, 550mA Peak Current
- High PSRR: -70dB at 1KHz
- < 0.1uA Standby Current When Shutdown
- TTL-Logic-Controlled Shutdown Input
- Ultra-Fast Response in Line/Load transient
- Current Limiting and Thermal Shutdown Protection
- Quick Start-up (typically 50us)
- Available in SOT-23-5 Package
