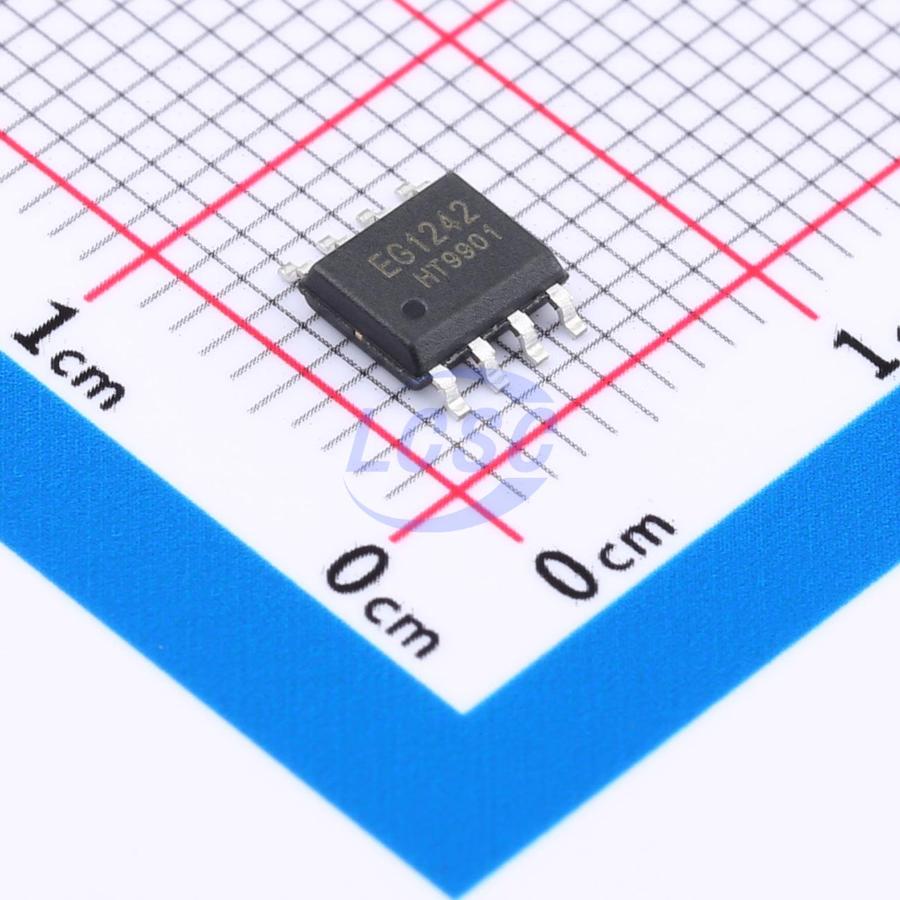

EG1242
Converter Offline Flyback Topology 48kHz~63kHz SOP-8
SOP-8ROHS CompliantActive
High-performance current-mode PWM controller
- Manufacturer
- EG Micro
- Manufacturer part #
- EG1242
- Store part #
- C5346622
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,765 in stock
#C5346622
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.72 | ₹108.60 |
| 50+ | ₹17.03 | ₹851.50 |
| 150+ | ₹15.02 | ₹2,253.00 |
| 500+ | ₹12.52 | ₹6,260.00 |
| 2,500+ | ₹11.39 | ₹28,475.00 |
| 4,000+ | ₹10.72 | ₹42,880.00 |
5 × ₹21.72
₹108.60
excl. GST
₹128.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
EG1242
₹108.60 for 5 + GST
Specifications
- Operating Temperature
- -45℃~+125℃
- Frequency - Switching
- 48kHz~63kHz
- Voltage - Supply
- 10.5V~28.2V
- Topology
- Flyback
- Features
- EMI optimization (spread spectrum);Light load efficient mode;Hiccup current limiting;Slope compensation;Under-voltage lockout;Over Voltage Protection;Under Voltage Protection;Overtemperature protection (OTP);Over Current Protection;Soft-start
- Duty Cycle(Max)
- 80%
- Working Mode
- PWM Modulation
- Feedback System
- Secondary-Side Feedback
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.42 g
Overview
EG1242 is a cost-effective current-mode PWM controller designed for small to medium power flyback power supply applications. The EG1242 features built-in frequency jittering for excellent EMI performance. The chip employs green energy-saving mode and hiccup mode to control light-load and no-load conditions. The EG1242 incorporates comprehensive protection features: VCC undervoltage lockout (UVLO), VCC overvoltage protection (OVP), cycle-by-cycle current limiting, overload protection, over-temperature protection, and soft-start.
Applications
- Lead-acid battery charger
- Lithium battery charger
- LED display
- Adapter motor drive power supply
Key features
- Excellent EMI characteristics
- Minimal external components
- External NTC temperature protection
- Optocoupler open-circuit protection
- Maximum duty cycle 80%
- Current mode control
- PWM frequency set via external resistor
- Green mode and hiccup mode control
- Cycle-by-cycle current limiting
- Built-in slope compensation
- Low startup current
- SOP8, DIP8 packages
