EG MicroDatasheet (PDF)

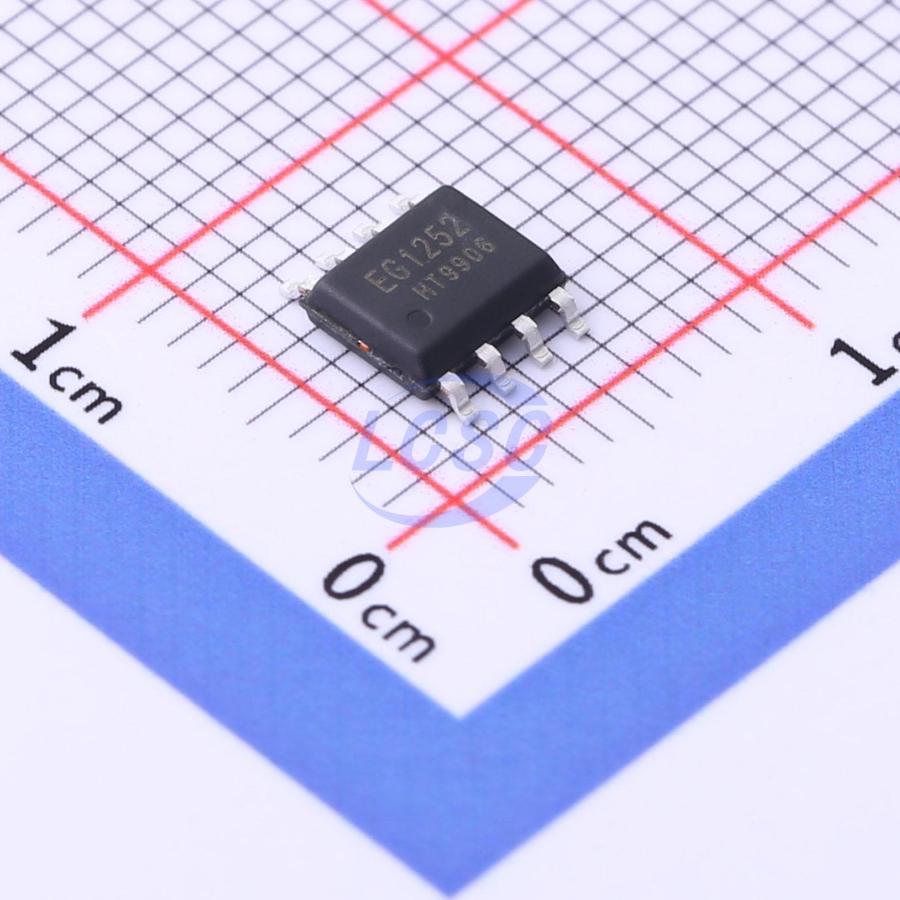

EG1252
Converter Offline Flyback Forward Topology 60kHz~70kHz SOP-8
SOP-8ROHS CompliantActive
High-performance current-mode PWM controller
- Manufacturer
- EG Micro
- Manufacturer part #
- EG1252
- Store part #
- C2929085
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,900 in stock
#C2929085
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.00 | ₹120.00 |
| 50+ | ₹18.76 | ₹938.00 |
| 150+ | ₹16.51 | ₹2,476.50 |
| 500+ | ₹13.71 | ₹6,855.00 |
| 2,500+ | ₹12.73 | ₹31,825.00 |
| 4,000+ | ₹11.97 | ₹47,880.00 |
5 × ₹24.00
₹120.00
excl. GST
₹141.60 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
EG1252
₹120.00 for 5 + GST
Specifications
- Operating Temperature
- -45℃~+125℃
- Frequency - Switching
- 60kHz~70kHz
- Voltage - Supply
- 9.5V~17V
- Topology
- Flyback;Forward
- Features
- Light load efficient mode;EMI optimization (spread spectrum);Leading edge blanking;Slope compensation;Hiccup current limiting;Under-voltage lockout;Over Voltage Protection;Under Voltage Protection;Overtemperature protection (OTP);Over Current Protection
- Duty Cycle(Max)
- 50%
- Working Mode
- PWM Modulation
- Feedback System
- Secondary-Side Feedback
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.176 g
Overview
EG1252 is a cost-effective current-mode PWM controller suitable for medium and high power flyback and forward converter applications. The EG1252 features built-in frequency jittering for excellent EMI performance. The chip employs green energy-saving mode and hiccup mode to control light-load and no-load conditions. The EG1252 integrates comprehensive protection features: VCC under-voltage lockout (UVLO), VCC over-voltage protection (OVP), cycle-by-cycle current limiting, input under-voltage protection, overload protection, over-temperature protection, and soft-start.
Applications
- LED display
- Li-ion battery charger
- Lead-acid battery charger
- Adapter motor drive power supply
Key features
- Excellent EMI performance
- Minimal external components
- External NTC thermal protection
- Input undervoltage protection
- Optocoupler open-circuit protection
- Maximum duty cycle 50%
- Current mode control
- PWM frequency set by external resistor
- Green mode and hiccup mode control
- Cycle-by-cycle current limiting
- Built-in leading edge blanking
- Built-in slope compensation
- Low startup current
- Available in SOP8, DIP8 packages
