EG Micro

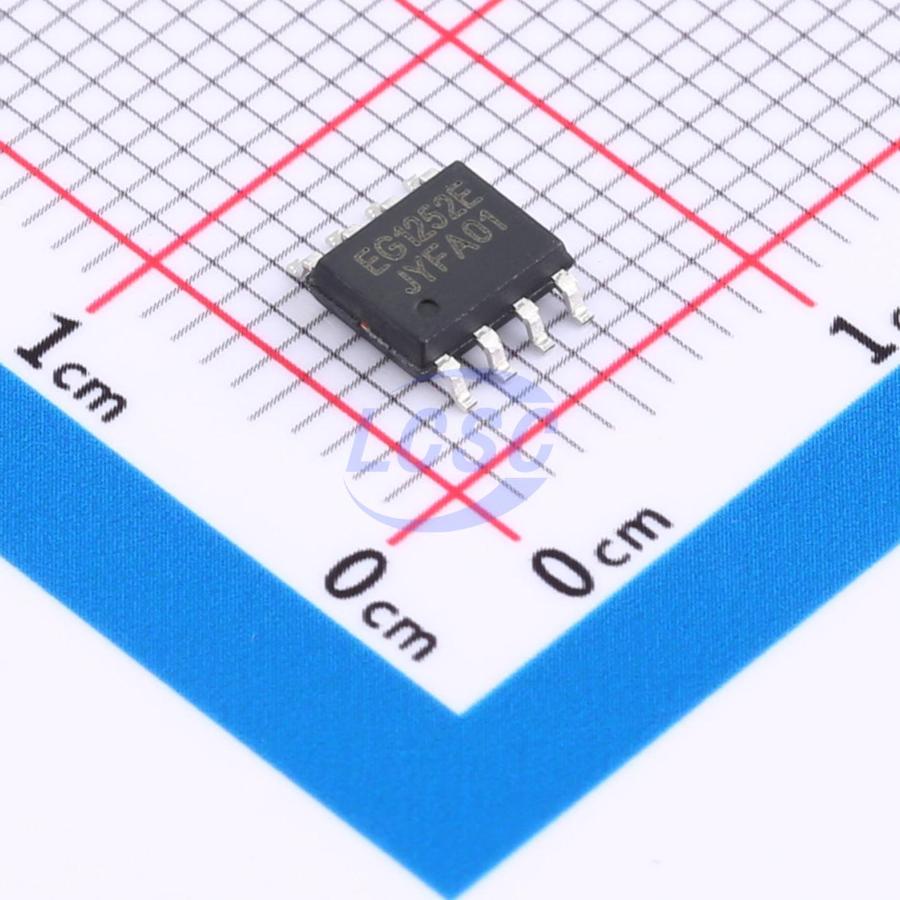

EG1252E

800mA 100kHz SOP-8 AC DC Converters, Offline Switchers RoHS

SOP-8ROHS CompliantActive

Current mode controller

Manufacturer: EG Micro
Manufacturer part #: EG1252E
Store part #: C48580023
Package / case: SOP-8
Category: AC DC Converters, Offline Switchers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,855 in stock

#C48580023

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹16.99	₹84.95
50+	₹13.34	₹667.00
150+	₹11.51	₹1,726.50
500+	₹10.15	₹5,075.00
2,500+	₹9.05	₹22,625.00
4,000+	₹8.51	₹34,040.00

Quantity (min 5, multiples of 5)

5 × ₹16.99

₹84.95

excl. GST

₹100.24 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

EG1252E

₹84.95 for 5 + GST

Specifications

Operating Temperature: -45℃~+125℃
Output Current: 800mA
Frequency - Switching: 100kHz
Features: Adjustable soft-start;EMI optimization (spread spectrum);Leading edge blanking;Under-voltage lockout;Brown-in/Brown-out detection;Over Current Protection;Under Voltage Protection
Topology: Forward;Flyback
Duty Cycle(Max): 49%
Working Mode: PWM Modulation
Feedback System: Secondary-Side Feedback

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.177 g

Overview

EG1252E is a cost-effective current-mode PWM controller designed for medium- and high-power forward converter applications as well as flyback converter applications. The device incorporates a built-in frequency dithering function, offering excellent EMI characteristics. It integrates comprehensive protection features, including VCC undervoltage lockout, VCC overvoltage protection, cycle-by-cycle current limiting, input undervoltage protection, overload protection, and soft-start.
