EG MicroDatasheet (PDF)

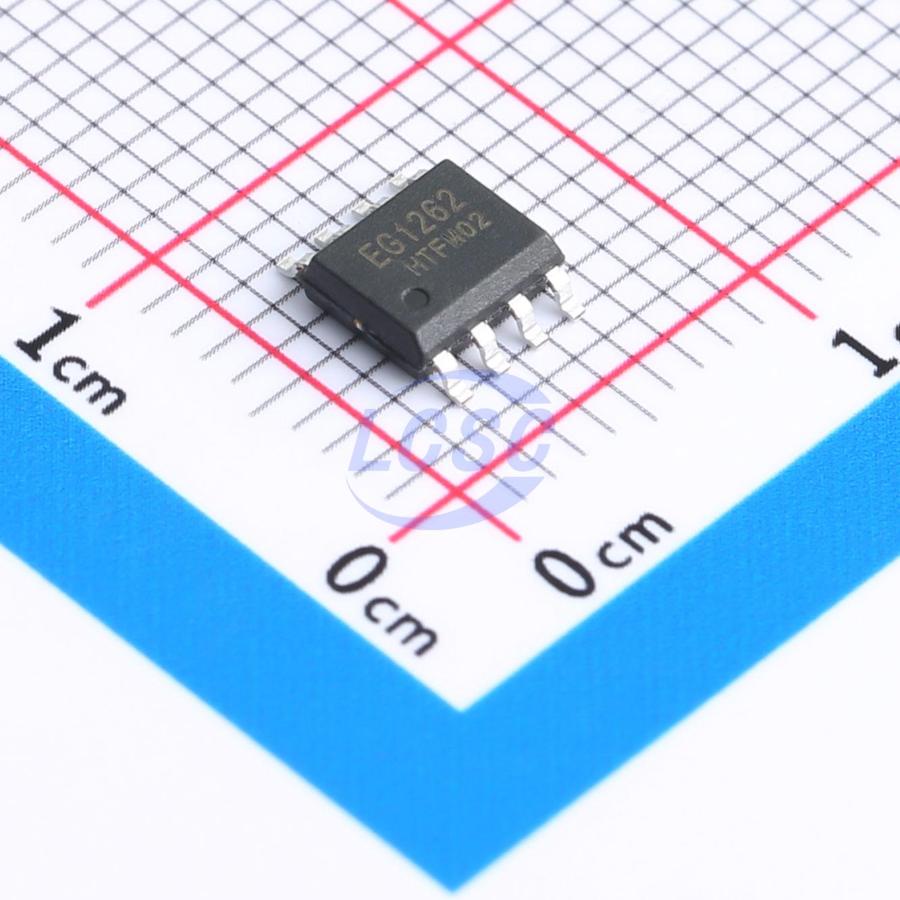

EG1262
Converter Offline Flyback Forward Topology 68kHz~83kHz SOP-8
SOP-8ROHS CompliantActive
Wide voltage range current mode forward controller
- Manufacturer
- EG Micro
- Manufacturer part #
- EG1262
- Store part #
- C20416231
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,855 in stock
#C20416231
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.87 | ₹79.35 |
| 50+ | ₹13.88 | ₹694.00 |
| 150+ | ₹13.02 | ₹1,953.00 |
| 500+ | ₹11.96 | ₹5,980.00 |
| 2,500+ | ₹11.48 | ₹28,700.00 |
| 4,000+ | ₹11.20 | ₹44,800.00 |
5 × ₹15.87
₹79.35
excl. GST
₹93.63 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
EG1262
₹79.35 for 5 + GST
Specifications
- Operating Temperature
- -45℃~+125℃
- Frequency - Switching
- 68kHz~83kHz
- Voltage - Supply
- 10.5V~16V
- Topology
- Forward;Flyback
- Features
- EMI optimization (spread spectrum);Leading edge blanking;Adjustable current limiting;Under-voltage lockout;Over Voltage Protection;Overtemperature protection (OTP);Soft-start;Over Current Protection;Under Voltage Protection
- Duty Cycle(Max)
- 50%
- Working Mode
- PWM Modulation
- Feedback System
- Secondary-Side Feedback
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.164 g
Overview
Cost-effective current-mode PWM controller suitable for medium- and high-power forward converter and flyback converter designs. EG1262 features built-in frequency dithering for excellent EMI performance. EG1262 incorporates comprehensive protection functions: VCC undervoltage lockout (UVLO), VCC overvoltage protection (OVP), cycle-by-cycle current limiting, input undervoltage protection, overload protection, over-temperature protection, and soft-start.
Applications
- LED display
- Lithium battery charger
- Lead-acid battery charger
- Adapter motor drive power supply
Key features
- Wide voltage range up to 38V
- Excellent EMI characteristics
- Minimal external components
- External NTC thermal protection
- Input undervoltage protection
- Optocoupler open-circuit protection
- Maximum duty cycle 50%
- Current mode control
- PWM frequency set via external resistor
- Cycle-by-cycle current limiting
- Built-in leading edge blanking
- Low startup current
- SOP8 package
