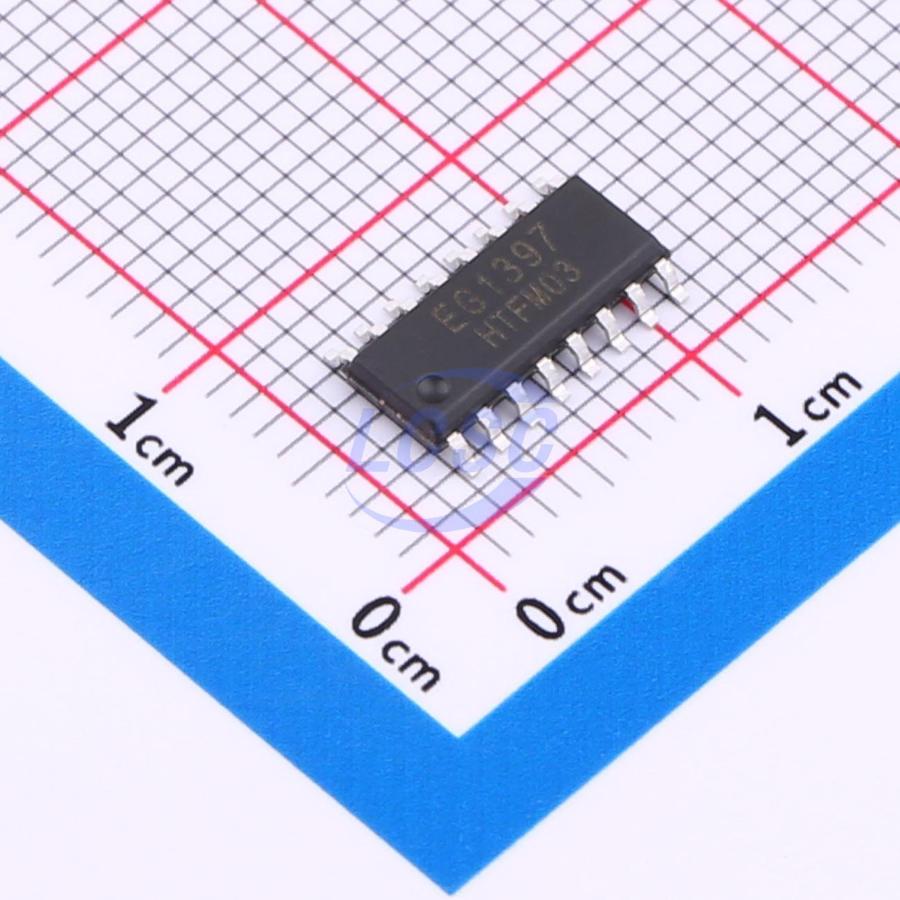

EG1397
Converter Offline Half-Bridge Topology 60kHz~500kHz SOP-16
SOP-16ROHS CompliantActive
High-voltage LLC resonant controller
- Manufacturer
- EG Micro
- Manufacturer part #
- EG1397
- Store part #
- C20416232
- Package / case
- SOP-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,019 in stock
#C20416232
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹63.38 | ₹63.38 |
| 10+ | ₹50.85 | ₹508.50 |
| 30+ | ₹44.58 | ₹1,337.40 |
| 100+ | ₹38.32 | ₹3,832.00 |
| 500+ | ₹36.53 | ₹18,265.00 |
| 1,000+ | ₹34.56 | ₹34,560.00 |
1 × ₹63.38
₹63.38
excl. GST
₹74.79 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
EG1397
₹63.38 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Output Current
- 800mA;1.3A
- Frequency - Switching
- 60kHz~500kHz
- Voltage - Supply
- 9V~20V
- Voltage - Breakdown
- 650V
- Topology
- Half-Bridge
- Features
- Adjustable soft-start;Brown-in/Brown-out detection;Light load efficient mode;Hiccup current limiting;Under-voltage lockout;Overtemperature protection (OTP);Over Current Protection;Under Voltage Protection
- Duty Cycle(Max)
- 50%
- Feedback System
- Secondary-Side Feedback
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.278 g
Overview
EG1397 is a high-performance controller for half-bridge topologies, including series resonant, parallel resonant, and LLC resonant controllers. It integrates a 650V half-bridge driver with minimal external components, simplifying PCB layout. EG1397 adopts a unique architecture featuring a up to 500kHz voltage-controlled oscillator with flexible control modes, enabling reliable and stable resonant-mode power supplies. EG1397 offers comprehensive protection features with configurable settings to accommodate a wide range of applications. These include: auto-recovery overcurrent protection, undervoltage protection, soft-start, and optocoupler open/short-circuit protection. Configurable dead time prevents simultaneous conduction of the high-side and low-side MOSFETs, making it suitable for various power levels.
Applications
- Monitor power supplies
- AC-DC adapters
- Battery chargers
- Computer and communication power supplies
- Industrial and medical power equipment
Key features
- Integrated 650V half-bridge driver
- High-precision oscillator, operating frequency up to 500kHz
- Configurable minimum switching frequency
- Configurable dead time from 100nS to 2uS
- Configurable soft start
- VCC supply voltage up to 20V
- Low startup current 300uA
- Built-in temperature protection
- Overcurrent auto-recovery
- Half-bridge driver output current capability I0+/- 0.8/1.3A
- Lead-free, halogen-free, RoHS-compliant package: SOP16L
