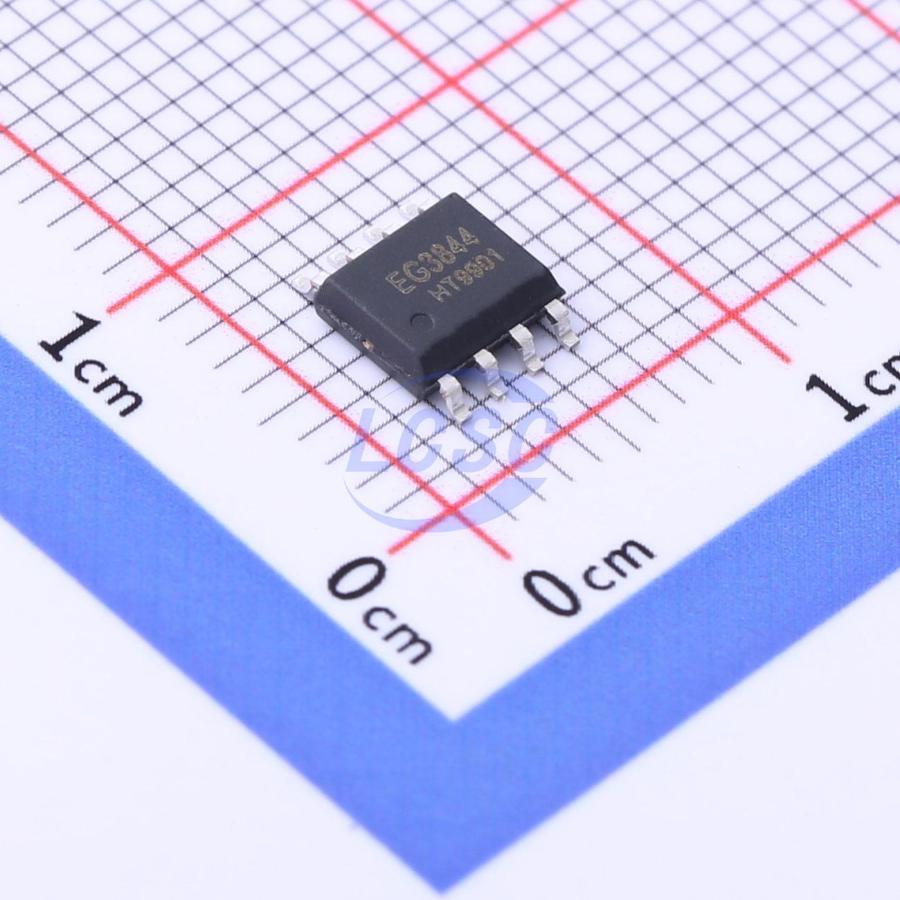

EG Micro

EG3844

Converter Offline Flyback Forward Topology 60kHz~70kHz SOP-8

SOP-8ROHS CompliantActive

High-performance current mode PWM controller

Manufacturer: EG Micro
Manufacturer part #: EG3844
Store part #: C2929099
Package / case: SOP-8
Category: AC DC Converters, Offline Switchers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,590 in stock

#C2929099

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
5+	₹23.42	₹117.10
50+	₹18.60	₹930.00
150+	₹15.43	₹2,314.50
500+	₹12.85	₹6,425.00
2,500+	₹11.70	₹29,250.00
4,000+	₹11.01	₹44,040.00

Quantity (min 5, multiples of 5)

5 × ₹23.42

₹117.10

excl. GST

₹138.18 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

EG3844

₹117.10 for 5 + GST

Specifications

Operating Temperature: -45℃~+125℃
Frequency - Switching: 60kHz~70kHz
Topology: Flyback;Forward
Features: Over Voltage Protection;Under Voltage Protection;Over Current Protection;Overtemperature protection (OTP);Soft-start
Duty Cycle(Max): 50%
Feedback System: Secondary-Side Feedback
Working Mode: PWM Modulation

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.18 g

Overview

EG3844 is a cost-effective current-mode PWM controller suitable for medium- and high-power flyback and forward converter power supply designs. The EG3844 features built-in frequency dithering for excellent EMI performance. The chip employs green energy-saving mode and hiccup mode to control light-load and no-load conditions. The EG3844 incorporates comprehensive protection features: VCC undervoltage lockout (UVLO), VCC overvoltage protection (OVP), cycle-by-cycle current limiting, overload protection, over-temperature protection, and soft-start.
