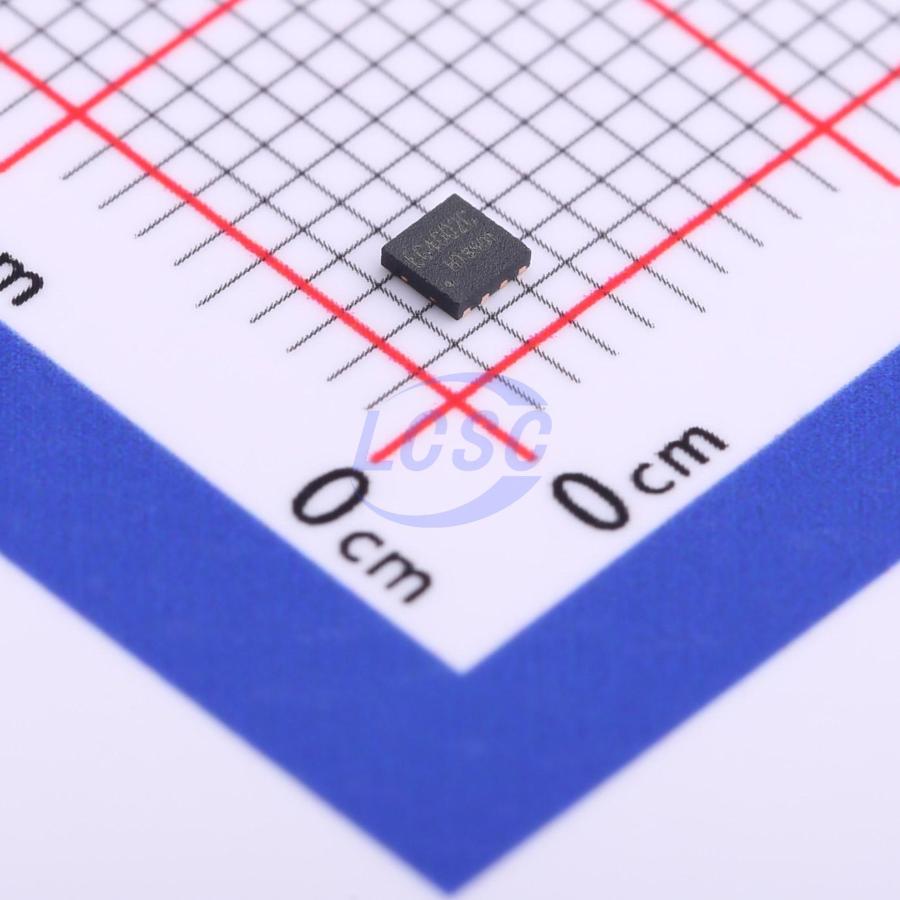

EG4002C

EG4002 is a mixed-signal ASIC designed for microwave and infrared signal amplification and processing output. It integrates an operational amplifier, dual-threshold voltage comparator, reference voltage source, delay timer, blocking timer, and state controller, making it suitable for burglar alarm systems, human body-activated door control devices, lighting control switches, and similar applications. The EG4002 operates at a supply voltage of +3V~+6V, implemented using CMOS mixed-signal IC technology in an 8-pin package. This design reduces peripheral component count and overall cost while saving PCB board space.

Applications

• Microwave and infrared sensor lights
• Automatic hand dryers
• Voice greeting systems
• Infrared alarm systems
• Automatic lighting systems
• Automatic door control systems

Key features

• 8-pin dedicated microwave/infrared sensing IC, simple peripheral circuitry, low cost
• Low static power consumption: <45μA at 3V supply, <75μA at 5V supply — ideal for battery-powered applications
• High input impedance op-amp, compatible with various sensors for signal processing
• Bidirectional amplitude discriminator for effective interference suppression
• Built-in reference voltage for internal comparator and op-amp reference
• Integrated delay timer and inhibit timer; timing delay set by adjusting oscillator frequency
• Minimal external components — only requires first-stage op-amp gain setting and oscillator RC components for reliable operation
• Supply voltage: +3V~+6V
• Package: SOP8, DFN8, DIP8
