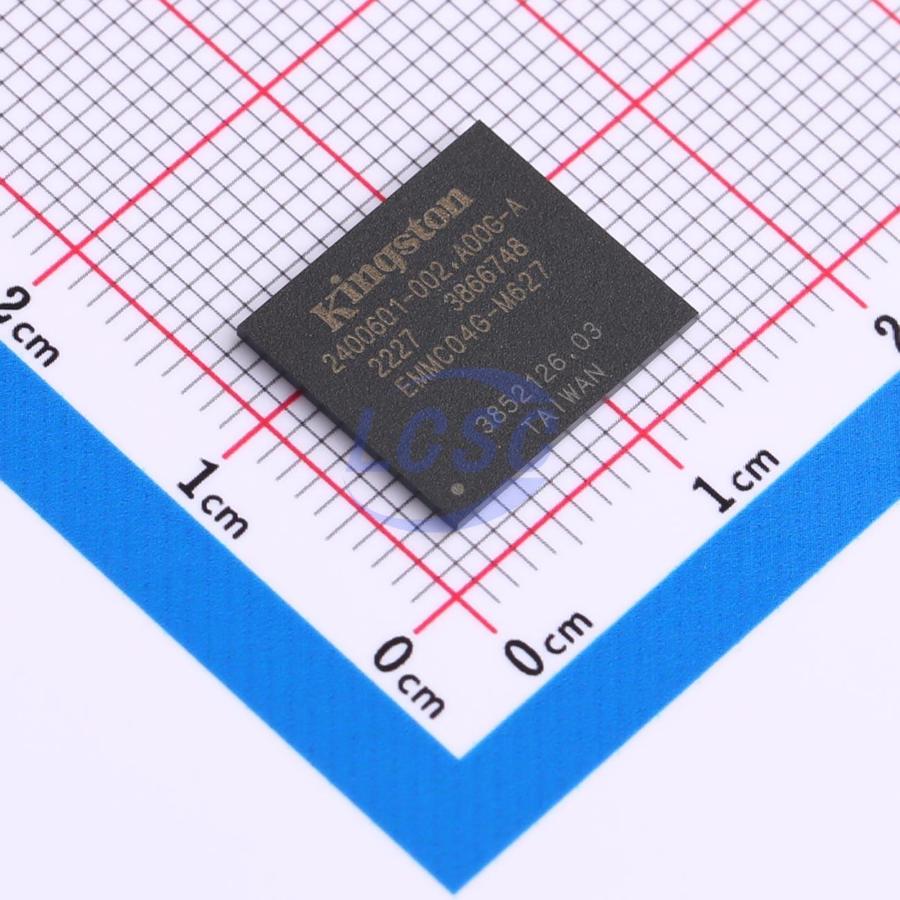

EMMC04G-M627-Y02U
4GB MLC eMMC 5.1 FBGA-153 Memory RoHS
Flash Storage e·MMC 5.1
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,460 in stock
#C43168982
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹4,306.85 | ₹43,068.50 |
| 300+ | ₹4,078.65 | ₹12,23,595.00 |
10 × ₹4,306.85
₹43,068.50
excl. GST
₹50,820.83 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 152 per tray
EMMC04G-M627-Y02U
₹43,068.50 for 10 + GST
Specifications
- Operating Temperature
- -25℃~+85℃
- Features
- Built-in wear leveling function;ECC error correction function;Power-down data protection function;Hardware reset function;Secure erase function;Enhanced write protection function;Secure write protection function
- Memory Size
- 4GB
- Reading Speed in Sequence
- 250MB/S
- Writing Speed in Sequence
- 25MB/S
- NAND Flash Type
- MLC
- NAND Operating Voltage (VCCF)
- 2.7V~3.6V
- Interface
- eMMC 5.1
- Controller Operating Voltage (VCCQ)
- 1.7V~1.95V;2.7V~3.6V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tray
- Standard pack
- 152 / Tray
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.26 g
Overview
Kingston e•MMC™ products follow the JEDEC e•MMC™ 5.1 standard. It is an ideal universal storage solution for many electronic devices, including smartphones, tablets, PDAs, eBook readers, digital cameras, recorders, MP3, MP4 players, electronic learning products, digital TVs and set - top boxes. E•MMC™ encloses the MLC NAND and e•MMC™ controller inside as one JEDEC standard package, providing a standard interface to the host. The e•MMC™ controller directly manages NAND flash, including ECC, wear - leveling, IOPS optimization and read sensing.
Applications
- smartphones
- tablets
- PDAs
- eBook readers
- digital cameras
- recorders
- MP3
- MP4 players
- electronic learning products
- digital TVs
- set - top boxes
Key features
- Packaged NAND flash memory with e•MMC™ 5.1 interface
- Compliant with e•MMC™ Specification Ver.4.4, 4.41,4.5,5.0 & 5.1
- Bus mode High - speed e•MMC™ protocol Clock frequency : 0 - 200MHz. Ten - wire bus (clock, 1 bit command, 8 bit data bus) and a hardware reset.
- Supports three different data bus widths : 1 bit(default), 4 bits, 8 bits Data transfer rate: up to 52Mbyte/s (using 8 parallel data lines at 52 MHz) Single data rate : up to 200Mbyte/s @ 200MHz Dual data rate : up to 400Mbyte/s @ 200MHz
- Operating voltage range : VCCQ = 1.8 V/3.3 V VCC = 3.3 V
- Error free memory access Internal error correction code (ECC) to protect data communication Internal enhanced data management algorithm Solid protection of sudden power failure safe - update operations for data content
- Security Support secure bad block erase commands Enhanced write Protection with permanent and partial protection options
- Quality RoHS compliant (for detailed RoHS declaration, please contact your KSI representative.)
- Supports Field Firmware Update(FFU)
- Enhanced Device Life time
- Support Pre EOL information
- Optimal Size
- Supports Production State Awareness
- Supports Power Off Notification for Sleep
- Supports HS400
- Supports CMD queuing
- Supports Cache barrier
- Supports Cache Flushing report
- RPMB throughput improve
- Supports BKOP control
- Supports HCI for CMD queuing
- Supports Enhanced strobe
- Supports secure write protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | EMMC04G-M627-A01#C577446Kingston · FBGA-153 | Kingston | FBGA-153 | 33 | ₹5,067.16 · 33 in stock | View |
| EMMC04G-WT32-01I10#C41844758Kingston · FBGA-153 | Kingston | FBGA-153 | On request | Price on request | Quote | |
