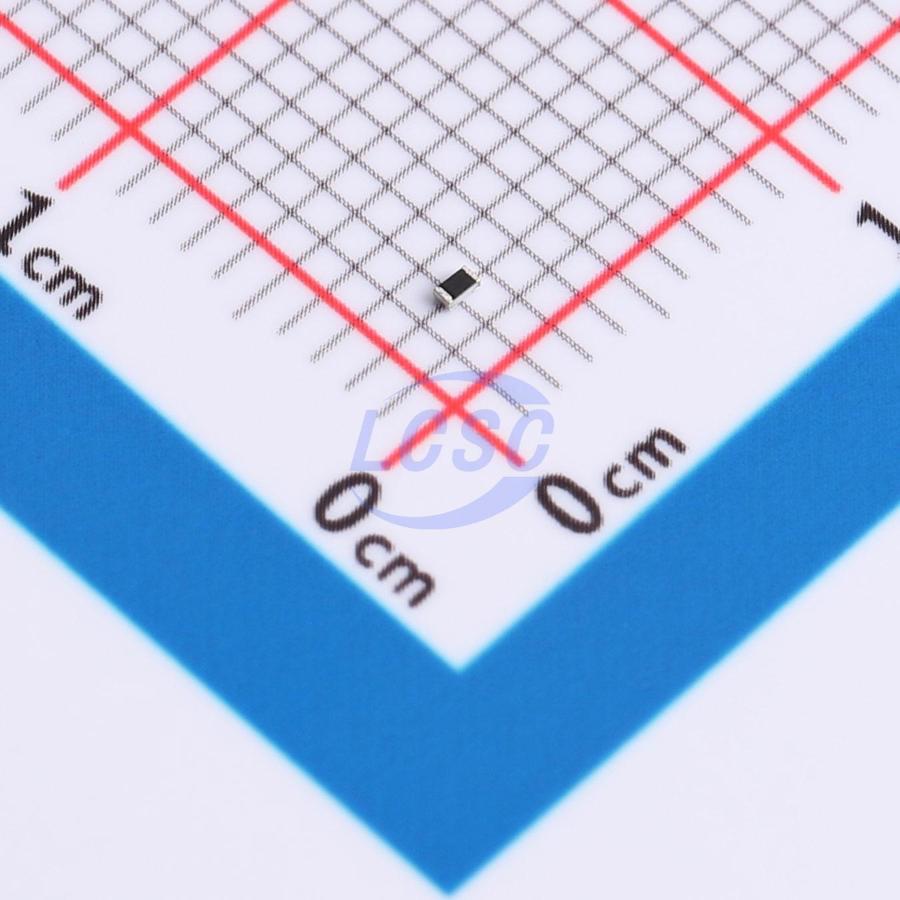

PANASONICDatasheet (PDF)
ERA-2AEB1472X
14.7kΩ 63mW Thin Film Resistor ±25ppm/℃ ±0.1% 0402 Chip Resistor - Surface Mount RoHS
0402ROHS3 CompliantActive
RES 14700Ω ±0.1% 0.063W 0402
- Manufacturer
- PANASONIC
- Manufacturer part #
- ERA-2AEB1472X
- Store part #
- C7273210
- Package / case
- 0402
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C7273210
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.79 | ₹58.95 |
| 50+ | ₹11.56 | ₹578.00 |
| 150+ | ₹11.40 | ₹1,710.00 |
| 500+ | ₹11.25 | ₹5,625.00 |
5 × ₹11.79
₹58.95
excl. GST
₹69.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
ERA-2AEB1472X
₹58.95 for 5 + GST
Specifications
- Resistance
- 14.7kΩ
- Power(Watts)
- 63mW
- Operating Temperature
- -55℃~+155℃
- Type
- Thin Film Resistor
- Temperature Coefficient
- ±25ppm/℃
- Tolerance
- ±0.1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.011 g
Overview
Key features
- High reliability: stable performance in high-temperature and high-humidity environments (85°C, 65% RH rated load, operating temperature range: -55°C ~ +155°C)
- High accuracy: low resistance tolerance and TCR
- High performance: low current noise, excellent linearity
- Reference standards: IEC 60115-8, JIS C 5201-8, JEITA RC-2133C
- AEC-Q200 compliant (except ERA1A)
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RT0402BRD0714K7L#C281774YAGEO · 0402 | YAGEO | 0402 | 9,680 | ₹3.59 · 9,680 in stock | View |
 | PTFR0402B14K7P9#C2693066RESI · 0402 | RESI | 0402 | 5,665 | ₹14.02 · 5,665 in stock | View |
 | PTFR0402B14K7N9#C2693067RESI · 0402 | RESI | 0402 | 4,995 | ₹22.27 · 4,995 in stock | View |
| CPF0402B14K7E1#C2092786TE Connectivity · 0402 | TE Connectivity | 0402 | On request | Price on request | Quote | |
| CRT0402-BY-1472GLF#C6888374BOURNS · 0402 | BOURNS | 0402 | On request | Price on request | Quote | |
