PANASONICDatasheet (PDF)

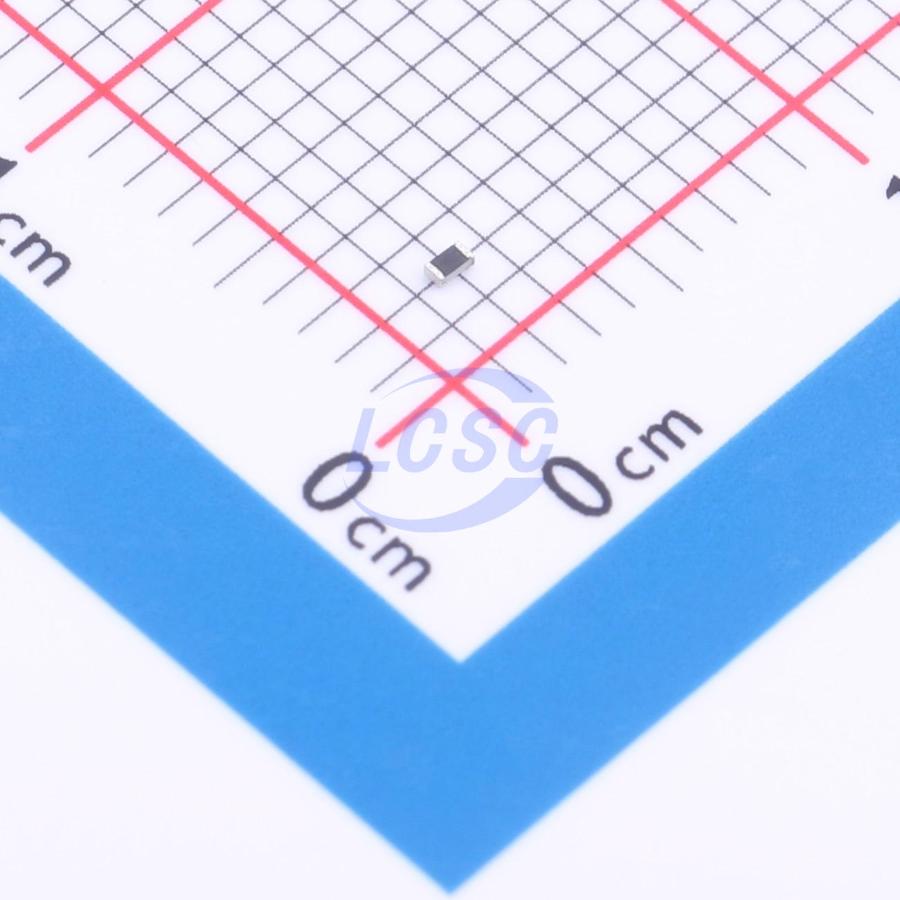

ERA-2APB102X
1kΩ ±0.1% 63mW 0402 Thin Film Resistor AEC-Q200
0402ROHS3 CompliantActive
RES 1kΩ ±0.1% 63mW 0402
- Manufacturer
- PANASONIC
- Manufacturer part #
- ERA-2APB102X
- Store part #
- C3999563
- Package / case
- 0402
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
169 in stock
#C3999563
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹133.13 | ₹133.13 |
| 10+ | ₹106.46 | ₹1,064.60 |
| 30+ | ₹93.02 | ₹2,790.60 |
| 100+ | ₹79.79 | ₹7,979.00 |
| 500+ | ₹71.98 | ₹35,990.00 |
| 1,000+ | ₹67.87 | ₹67,870.00 |
1 × ₹133.13
₹133.13
excl. GST
₹157.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
ERA-2APB102X
₹133.13 for 1 + GST
Specifications
- Power(Watts)
- 63mW
- Resistance
- 1kΩ
- Voltage Rating
- 50V
- Operating Temperature
- -55℃~+155℃
- Type
- Thin Film Resistor
- Tolerance
- ±0.1%
- Temperature Coefficient
- ±15ppm/℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.155 g
Overview
Key features
- High reliability: stable performance in high-temperature and high-humidity environments (85°C, 65% RH rated load, operating temperature range: -55°C ~ +155°C)
- High accuracy: low resistance tolerance and TCR
- High performance: low current noise, excellent linearity
- Reference standards: IEC 60115-8, JIS C 5201-8, JEITA RC-2133C
- AEC-Q200 compliant (except ERA1A)
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP0402B1K00Q1010Z#C5184075EVER OHMS · 0402 | EVER OHMS | 0402 | 10 | ₹36.37 · 10 in stock | View |
 | TNPW04021K00BYED#C1717054VISHAY · 0402 | VISHAY | 0402 | 15 | ₹144.34 · 15 in stock | View |
 | TNPW04021K00BYEP#C2094057VISHAY · 0402 | VISHAY | 0402 | 50 | ₹146.79 · 50 in stock | View |
 | RT0402BRB071KL#C852354YAGEO · 0402 | YAGEO | 0402 | 37,600 | ₹25.31 · 37,600 in stock | View |
 | TC02G1001BT#C20616246FH · 0402 | FH | 0402 | 13,450 | ₹3.90 · 13,450 in stock | View |
