PANASONICDatasheet (PDF)

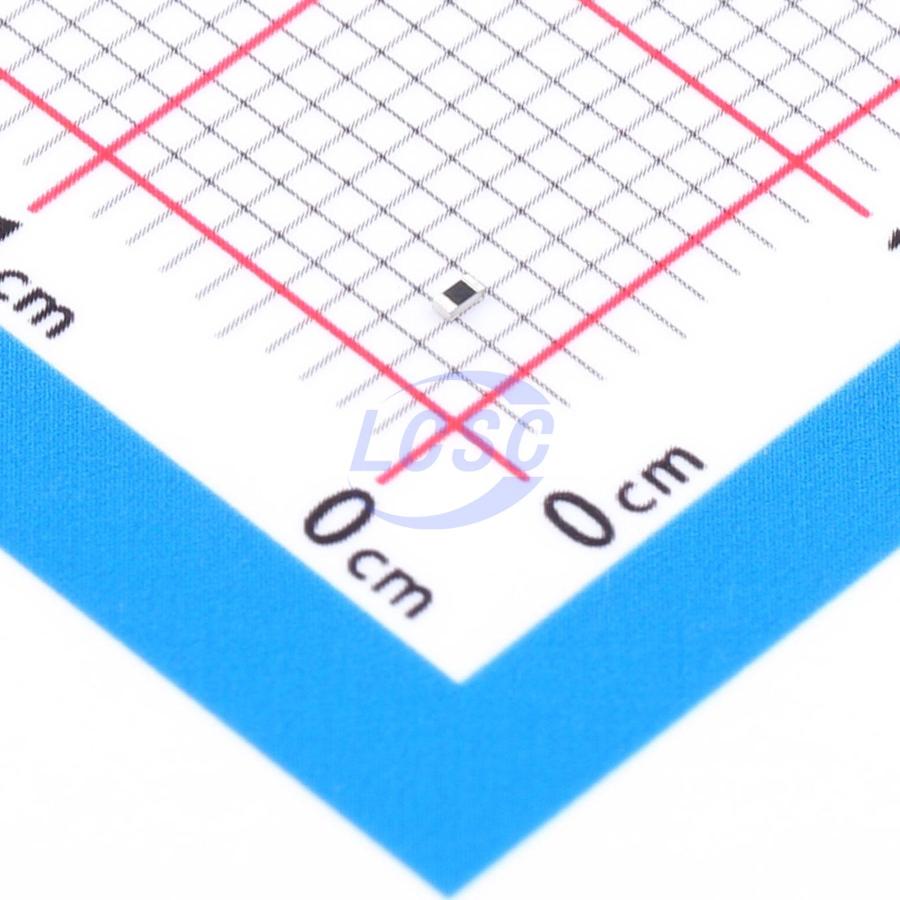

ERA-2VEB2201X
2.2kΩ 100mW Thin Film Resistor ±25ppm/℃ ±0.1% 0402 Chip Resistor - Surface Mount RoHS
0402ROHS3 CompliantActive
RES 2200Ω ±0.1% 0.1W 0402
- Manufacturer
- PANASONIC
- Manufacturer part #
- ERA-2VEB2201X
- Store part #
- C6549338
- Package / case
- 0402
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,735 in stock
#C6549338
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.59 | ₹102.95 |
| 50+ | ₹16.06 | ₹803.00 |
| 150+ | ₹14.12 | ₹2,118.00 |
| 500+ | ₹11.68 | ₹5,840.00 |
| 2,500+ | ₹10.61 | ₹26,525.00 |
| 5,000+ | ₹9.96 | ₹49,800.00 |
5 × ₹20.59
₹102.95
excl. GST
₹121.48 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
ERA-2VEB2201X
₹102.95 for 5 + GST
Specifications
- Resistance
- 2.2kΩ
- Power(Watts)
- 100mW
- Operating Temperature
- -55℃~+155℃
- Type
- Thin Film Resistor
- Temperature Coefficient
- ±25ppm/℃
- Tolerance
- ±0.1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.259 g
Overview
Key features
- High power: higher rated power, limiting element voltage, and maximum overload voltage than existing products
- High reliability: stable performance in high-temperature and high-humidity environments (85°C, 85% RH rated load, operating temperature range: -55°C ~ +155°C)
- High precision: low resistance tolerance and TCR
- High performance: low current noise, excellent linearity
- ESD protection: high ESD performance achieved through unique structure (AEC-Q200-002 Human Body Model Class 1c or higher)
- Sulfuration resistance: anti-sulfuration performance achieved through unique structure
- Reference standards: IEC 60115-6, JIS C 5201-8, JEITA RC-2133C
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| ERA-2VRB2201X#C4315234PANASONIC · 0402 | PANASONIC | 0402 | 9,789 | ₹67.54 · 9,789 in stock | View | |
 | RS73F1ETTP2201B#C45328245KOA · 0402 | KOA | 0402 | 8,555 | ₹10.52 · 8,555 in stock | View |
| TNPW04022K20BEED#C2088575VISHAY · 0402 | VISHAY | 0402 | On request | Price on request | Quote | |
| ERA-2VPB2201X#C1863211PANASONIC · 0402 | PANASONIC | 0402 | On request | Price on request | Quote | |
| TNPW04022K20BYED#C1716896VISHAY · 0402 | VISHAY | 0402 | On request | Price on request | Quote | |
