PANASONICDatasheet (PDF)

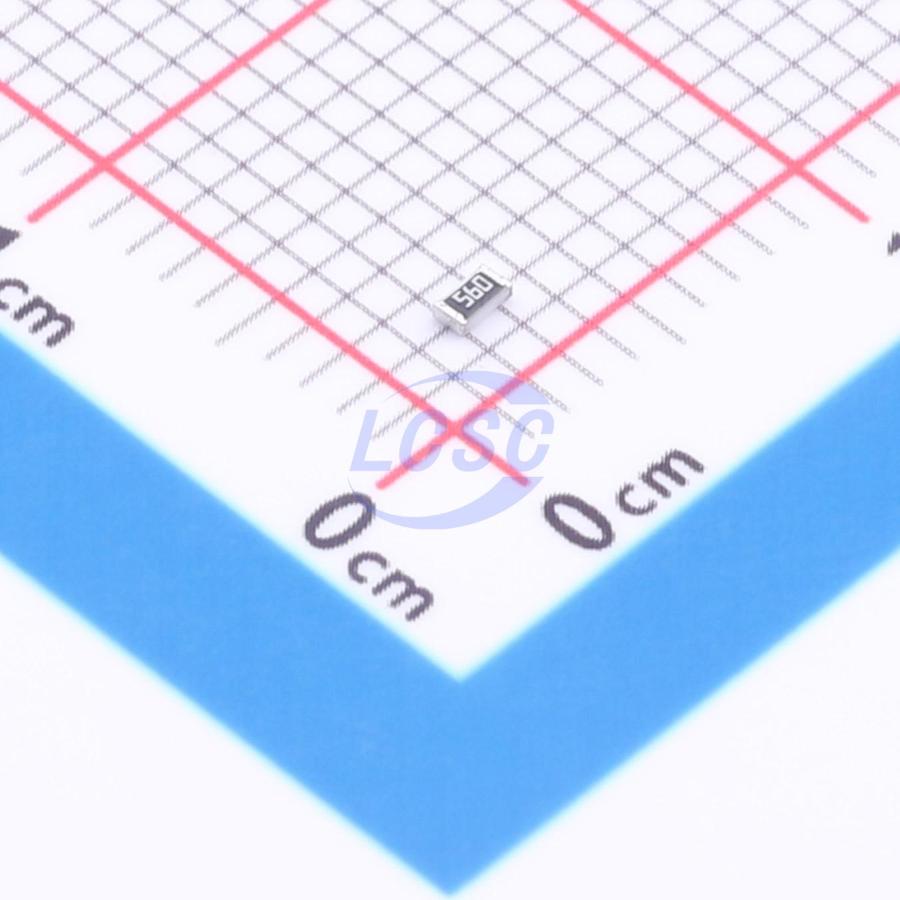

ERA-3AED560V
56Ω ±0.5% 100mW 0603 Thin Film Resistor AEC-Q200
0603ROHS3 CompliantActive
RES 56Ω ±0.5% 100mW 0603
- Manufacturer
- PANASONIC
- Manufacturer part #
- ERA-3AED560V
- Store part #
- C4259343
- Package / case
- 0603
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
585 in stock
#C4259343
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.48 | ₹62.40 |
| 50+ | ₹12.21 | ₹610.50 |
| 150+ | ₹12.04 | ₹1,806.00 |
| 500+ | ₹11.87 | ₹5,935.00 |
5 × ₹12.48
₹62.40
excl. GST
₹73.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
ERA-3AED560V
₹62.40 for 5 + GST
Specifications
- Resistance
- 56Ω
- Power(Watts)
- 100mW
- Voltage Rating
- 75V
- Operating Temperature
- -55℃~+155℃
- Type
- Thin Film Resistor
- Tolerance
- ±0.5%
- Temperature Coefficient
- ±25ppm/℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.024 g
Overview
Key features
- High reliability: stable performance in high-temperature and high-humidity environments (85°C, 65% RH rated load, operating temperature range: -55°C ~ +155°C)
- High accuracy: low resistance tolerance and TCR
- High performance: low current noise, excellent linearity
- Reference standards: IEC 60115-8, JIS C 5201-8, JEITA RC-2133C
- AEC-Q200 compliant (except ERA1A)
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AR03BTCX0560#C2828633Viking · 0603 | Viking | 0603 | 16,980 | ₹4.37 · 16,980 in stock | View |
 | ERA3AEB560V#C445622PANASONIC · 0603 | PANASONIC | 0603 | 14,905 | ₹11.85 · 14,905 in stock | View |
 | RT0603BRD0756RL#C861474YAGEO · 0603 | YAGEO | 0603 | 14,840 | ₹6.15 · 14,840 in stock | View |
 | RT0603BRB0756RL#C860447YAGEO · 0603 | YAGEO | 0603 | 4,950 | ₹25.36 · 4,950 in stock | View |
 | RT0603BRE0756RL#C849815YAGEO · 0603 | YAGEO | 0603 | 620 | ₹3.72 · 620 in stock | View |
