PANASONICDatasheet (PDF)

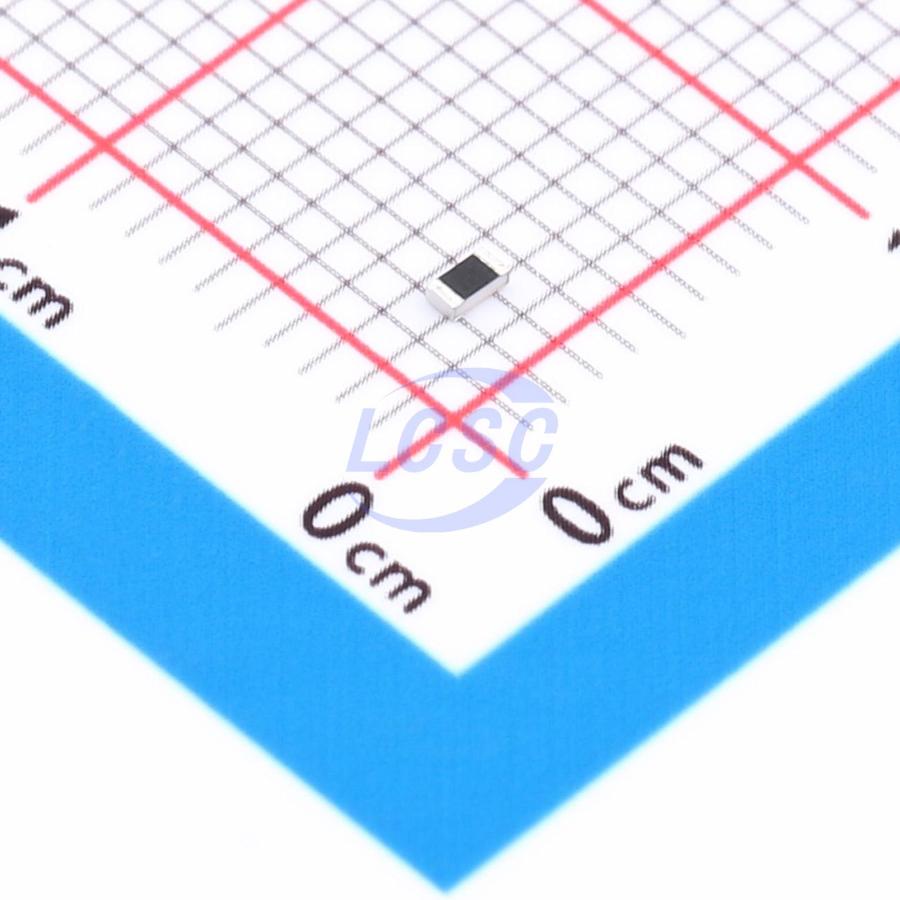

ERA-3VEB5100V
125mW 510Ω 100V Thin Film Resistor ±0.1% ±25ppm/℃ 0603 Chip Resistor - Surface Mount RoHS
0603ROHS3 CompliantActive
RES 510Ω ±0.1% 0.125W 0603
- Manufacturer
- PANASONIC
- Manufacturer part #
- ERA-3VEB5100V
- Store part #
- C1861552
- Package / case
- 0603
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
53 in stock
#C1861552
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹31.94 | ₹31.94 |
| 10+ | ₹31.12 | ₹311.20 |
| 30+ | ₹30.71 | ₹921.30 |
| 100+ | ₹30.30 | ₹3,030.00 |
1 × ₹31.94
₹31.94
excl. GST
₹37.69 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
ERA-3VEB5100V
₹31.94 for 1 + GST
Specifications
- Power(Watts)
- 125mW
- Resistance
- 510Ω
- Voltage Rating
- 100V
- Operating Temperature
- -55℃~+155℃
- Type
- Thin Film Resistor
- Tolerance
- ±0.1%
- Temperature Coefficient
- ±25ppm/℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.03 g
Overview
Key features
- High power: higher rated power, limiting element voltage, and maximum overload voltage than existing products
- High reliability: stable performance in high-temperature and high-humidity environments (85°C, 85% RH rated load, operating temperature range: -55°C ~ +155°C)
- High precision: low resistance tolerance and TCR
- High performance: low current noise, excellent linearity
- ESD protection: high ESD performance achieved through unique structure (AEC-Q200-002 Human Body Model Class 1c or higher)
- Sulfuration resistance: anti-sulfuration performance achieved through unique structure
- Reference standards: IEC 60115-6, JIS C 5201-8, JEITA RC-2133C
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ERJPB3B5100V#C413744PANASONIC · 0603 | PANASONIC | 0603 | 1,240 | ₹18.28 · 1,240 in stock | View |
| TNPW0603510RBEEN#C1725964VISHAY · 0603 | VISHAY | 0603 | On request | Price on request | Quote | |
| RS73F1JTTD5100B#C4176089KOA · 0603 | KOA | 0603 | On request | Price on request | Quote | |
| RS73F1JRTTD5100B#C6784804KOA · 0603 | KOA | 0603 | On request | Price on request | Quote | |
| RS73G1JTTD5100B#C5895428KOA · 0603 | KOA | 0603 | On request | Price on request | Quote | |
