PANASONICDatasheet (PDF)
ERA-6ARB1402V

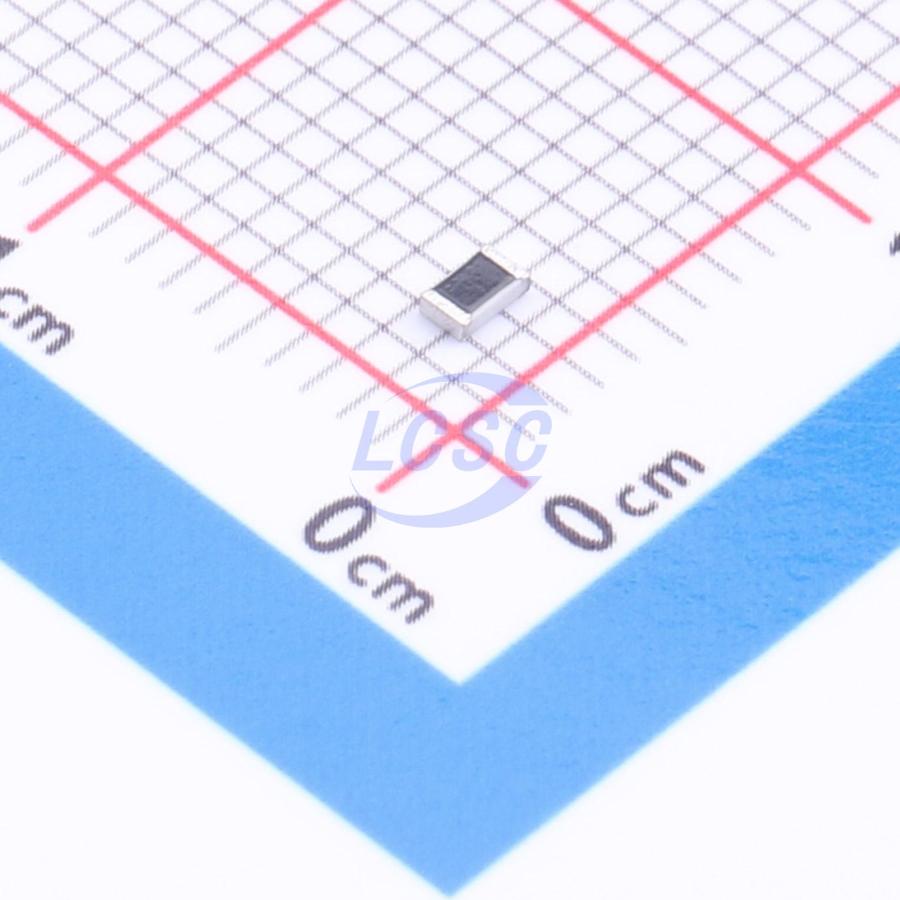

14kΩ 125mW Thin Film Resistor ±0.1% ±10ppm/℃ 0805 Chip Resistor - Surface Mount RoHS
0805ROHS3 CompliantActive
RES 14kΩ ±0.1% 0.125W 0805
- Manufacturer
- PANASONIC
- Manufacturer part #
- ERA-6ARB1402V
- Store part #
- C20016374
- Package / case
- 0805
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
28 in stock
#C20016374
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹93.26 | ₹93.26 |
| 10+ | ₹76.61 | ₹766.10 |
| 30+ | ₹68.08 | ₹2,042.40 |
| 100+ | ₹59.97 | ₹5,997.00 |
| 500+ | ₹55.06 | ₹27,530.00 |
| 1,000+ | ₹52.50 | ₹52,500.00 |
1 × ₹93.26
₹93.26
excl. GST
₹110.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
ERA-6ARB1402V
₹93.26 for 1 + GST
Specifications
- Resistance
- 14kΩ
- Power(Watts)
- 125mW
- Operating Temperature
- -55℃~+155℃
- Type
- Thin Film Resistor
- Tolerance
- ±0.1%
- Temperature Coefficient
- ±10ppm/℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.174 g
Overview
Key features
- High reliability: stable performance in high-temperature and high-humidity environments (85°C, 65% RH rated load, operating temperature range: -55°C ~ +155°C)
- High accuracy: low resistance tolerance and TCR
- High performance: low current noise, excellent linearity
- Reference standards: IEC 60115-8, JIS C 5201-8, JEITA RC-2133C
- AEC-Q200 compliant (except ERA1A)
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PTFR0805B14K0N9#C2692774RESI · 0805 | RESI | 0805 | 5,915 | ₹26.57 · 5,915 in stock | View |
 | ERA-6AEB1402V#C2074662PANASONIC · 0805 | PANASONIC | 0805 | 1,015 | ₹21.06 · 1,015 in stock | View |
| RG2012N-1402-B-T5#C1712504SUSUMU · 0805 | SUSUMU | 0805 | On request | Price on request | Quote | |
| RNCF0805BTT14K0#C2555188SEI(Stackpole Electronics Inc.) · 0805 | SEI(Stackpole Electronics Inc.) | 0805 | On request | Price on request | Quote | |
| RN73R2ATTD1402B10#C2569935KOA · 0805 | KOA | 0805 | On request | Price on request | Quote | |
