PANASONICDatasheet (PDF)
ERA-8AEB8870V

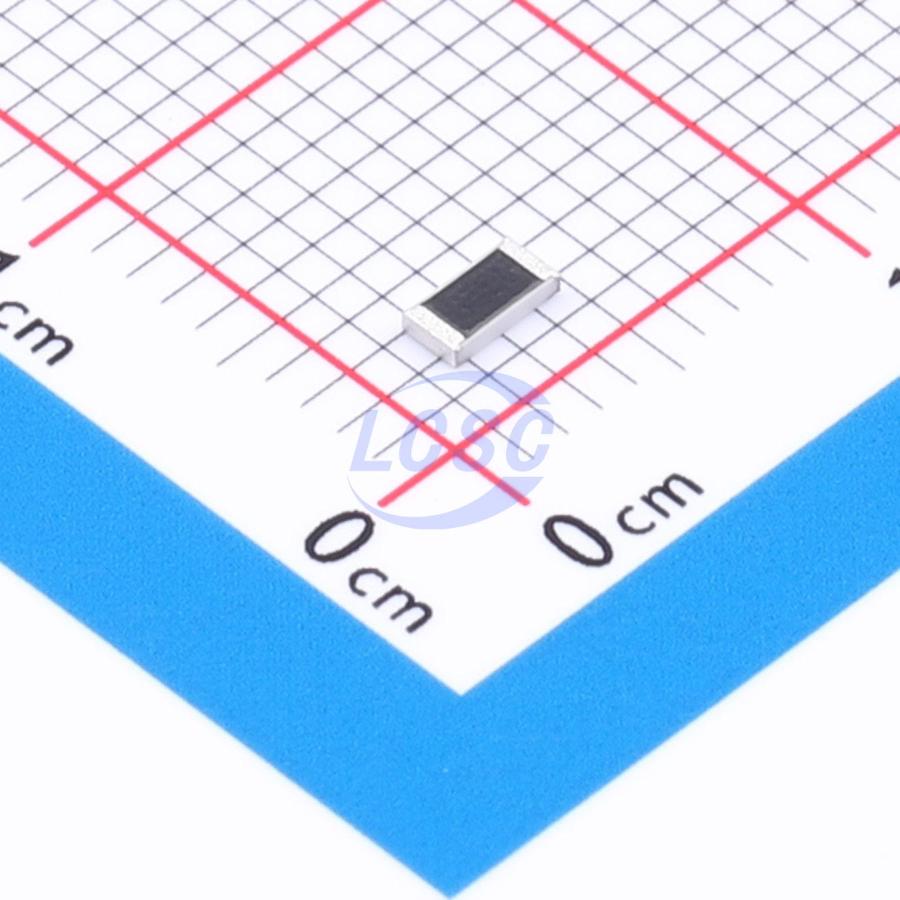

887Ω 250mW Thin Film Resistor ±25ppm/℃ ±0.1% 1206 Chip Resistor - Surface Mount RoHS
1206ROHS3 CompliantActive
RES 887Ω ±0.1% 0.25W 1206
- Manufacturer
- PANASONIC
- Manufacturer part #
- ERA-8AEB8870V
- Store part #
- C4005411
- Package / case
- 1206
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
275 in stock
#C4005411
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹73.94 | ₹73.94 |
| 10+ | ₹58.98 | ₹589.80 |
| 30+ | ₹52.70 | ₹1,581.00 |
| 100+ | ₹44.66 | ₹4,466.00 |
| 500+ | ₹40.99 | ₹20,495.00 |
| 1,000+ | ₹38.82 | ₹38,820.00 |
1 × ₹73.94
₹73.94
excl. GST
₹87.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
ERA-8AEB8870V
₹73.94 for 1 + GST
Specifications
- Resistance
- 887Ω
- Power(Watts)
- 250mW
- Type
- Thin Film Resistor
- Temperature Coefficient
- ±25ppm/℃
- Tolerance
- ±0.1%
- Operating Temperature
- -55℃~+155℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.025 g
Overview
Key features
- High reliability: stable performance in high-temperature and high-humidity environments (85°C, 65% RH rated load, operating temperature range: -55°C ~ +155°C)
- High accuracy: low resistance tolerance and TCR
- High performance: low current noise, excellent linearity
- Reference standards: IEC 60115-8, JIS C 5201-8, JEITA RC-2133C
- AEC-Q200 compliant (except ERA1A)
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| RG3216P-8870-B-T5#C1694739SUSUMU · 1206 | SUSUMU | 1206 | On request | Price on request | Quote | |
| RG3216P-8870-B-T1#C1695795SUSUMU · 1206 | SUSUMU | 1206 | On request | Price on request | Quote | |
| BLU1206-8870-BT25W#C17649571RCD Components, Inc. · 1206 | RCD Components, Inc. | 1206 | On request | ₹23.88 · 0 in stock | View | |
| RN73R2BTTD8870B25#C2548869KOA · 1206 | KOA | 1206 | On request | Price on request | Quote | |
| ERA-8VEB8870V#C7273596PANASONIC · 1206 | PANASONIC | 1206 | On request | Price on request | Quote | |
