PANASONICDatasheet (PDF)

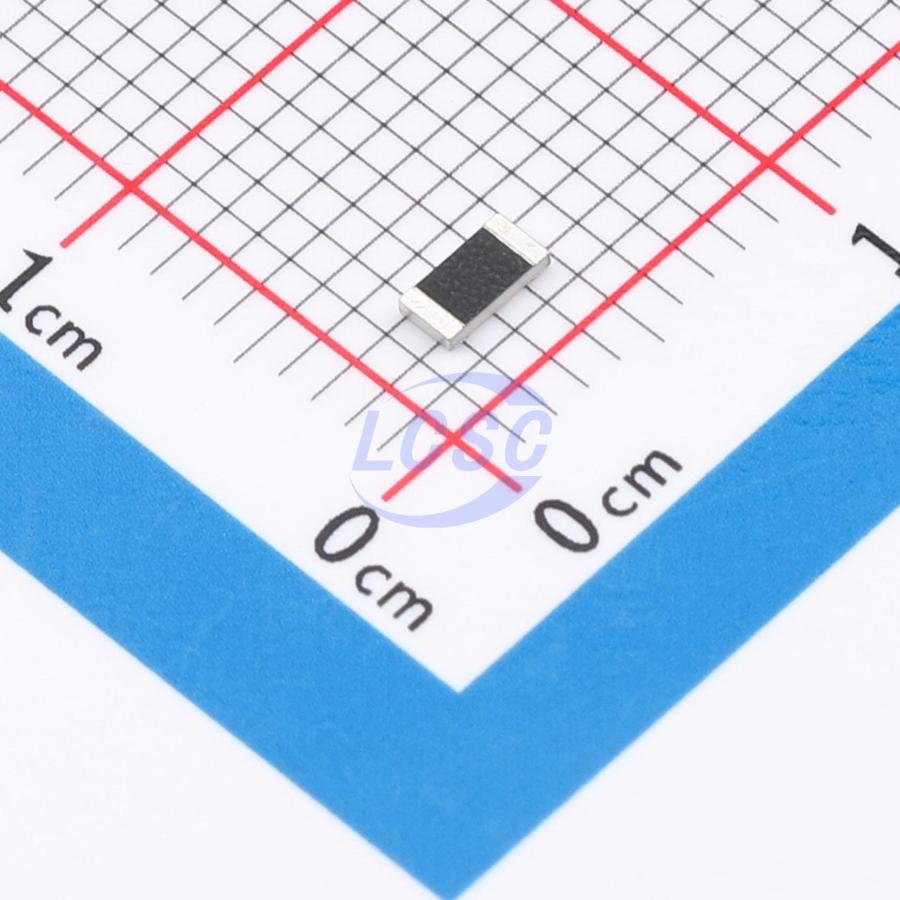

ERA-8PEB1004V
250mW 1MΩ Thin Film Resistor ±25ppm/℃ ±0.1% 1206 Chip Resistor - Surface Mount RoHS
1206ROHS3 CompliantActive
RES 1000000Ω ±0.1% 0.25W 1206
- Manufacturer
- PANASONIC
- Manufacturer part #
- ERA-8PEB1004V
- Store part #
- C6844506
- Package / case
- 1206
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
103 in stock
#C6844506
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹263.49 | ₹263.49 |
| 10+ | ₹226.50 | ₹2,265.00 |
| 30+ | ₹203.44 | ₹6,103.20 |
| 100+ | ₹179.95 | ₹17,995.00 |
| 500+ | ₹169.15 | ₹84,575.00 |
| 1,000+ | ₹164.58 | ₹1,64,580.00 |
1 × ₹263.49
₹263.49
excl. GST
₹310.92 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
ERA-8PEB1004V
₹263.49 for 1 + GST
Specifications
- Power(Watts)
- 250mW
- Resistance
- 1MΩ
- Type
- Thin Film Resistor
- Temperature Coefficient
- ±25ppm/℃
- Tolerance
- ±0.1%
- Operating Temperature
- -55℃~+155℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.025 g
Overview
Key features
- High voltage: unique design achieving high component limiting voltage (500V @ 1MΩ)
- High reliability: stable performance under rated load in high-temperature and high-humidity conditions (85℃, 85%); operating temperature range -55℃ to +155℃
- High precision: low resistance tolerance and low TCR
- High performance: low current noise, excellent linearity
- ESD protection: unique structure achieving high ESD performance (4kV guaranteed per AEC-Q200-002 HBM)
- Anti-sulfuration: unique structure with sulfuration resistance
- Reference standards: IEC 60115-8, JIS C 5201-8, JEITA RC-2133C
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| ERA-8AEB105V#C2073477PANASONIC · 1206 | PANASONIC | 1206 | 2 | ₹67.54 · 2 in stock | View | |
 | CRT1206-BY-1004ELF#C2088601BOURNS · 1206 | BOURNS | 1206 | 5 | ₹33.75 · 5 in stock | View |
 | ARG06BTC1004#C2984499Viking · 1206 | Viking | 1206 | 19,380 | ₹8.22 · 19,380 in stock | View |
 | TC0625B1004T5J#C2989128UNI-ROYAL · 1206 | UNI-ROYAL | 1206 | 55 | ₹16.64 · 55 in stock | View |
 | RT1206BRD071ML#C309662YAGEO · 1206 | YAGEO | 1206 | 88,200 | ₹15.96 · 88,200 in stock | View |
