PANASONICDatasheet (PDF)

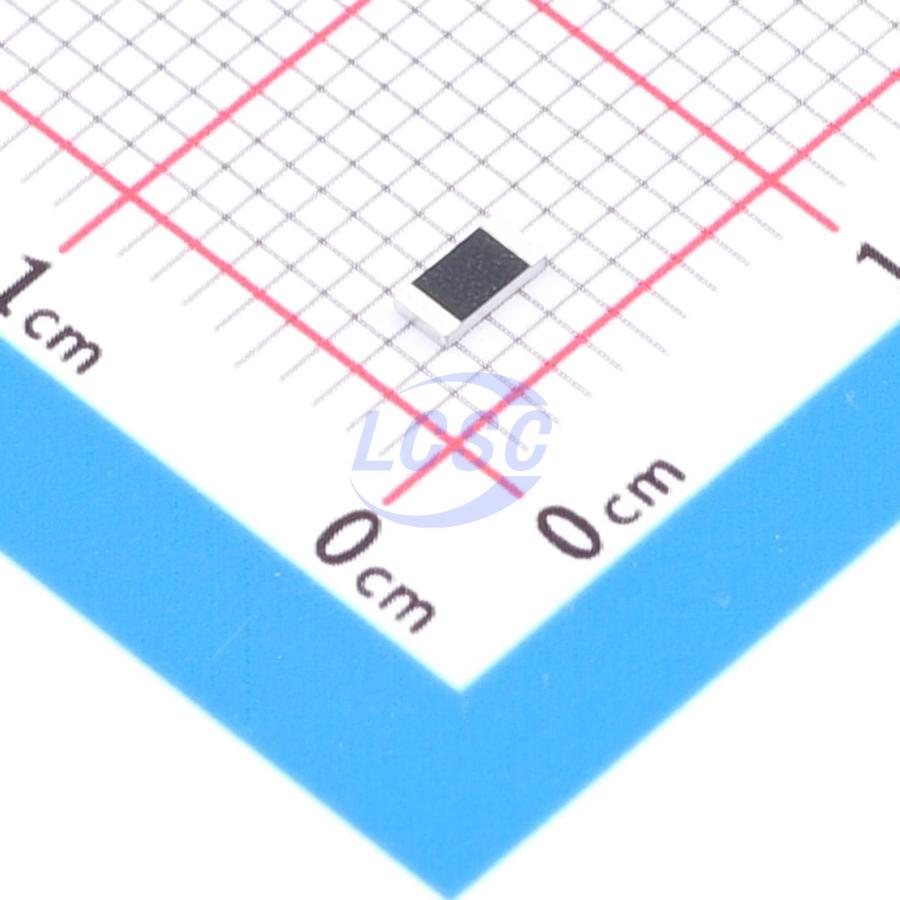

ERA-8VEB4700V
250mW 470Ω Thin Film Resistor ±25ppm/℃ ±0.1% 1206 Chip Resistor - Surface Mount RoHS
1206ROHS3 CompliantActive
RES 470Ω ±0.1% 0.25W 1206
- Manufacturer
- PANASONIC
- Manufacturer part #
- ERA-8VEB4700V
- Store part #
- C5730025
- Package / case
- 1206
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C5730025
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹67.59 | ₹67.59 |
| 10+ | ₹66.15 | ₹661.50 |
| 30+ | ₹65.33 | ₹1,959.90 |
| 100+ | ₹64.30 | ₹6,430.00 |
1 × ₹67.59
₹67.59
excl. GST
₹79.76 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
ERA-8VEB4700V
₹67.59 for 1 + GST
Specifications
- Power(Watts)
- 250mW
- Resistance
- 470Ω
- Operating Temperature
- -55℃~+155℃
- Type
- Thin Film Resistor
- Temperature Coefficient
- ±25ppm/℃
- Tolerance
- ±0.1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.042 g
Overview
Key features
- High power: higher rated power, limiting element voltage, and maximum overload voltage than existing products
- High reliability: stable performance in high-temperature and high-humidity environments (85°C, 85% RH rated load, operating temperature range: -55°C ~ +155°C)
- High precision: low resistance tolerance and TCR
- High performance: low current noise, excellent linearity
- ESD protection: high ESD performance achieved through unique structure (AEC-Q200-002 Human Body Model Class 1c or higher)
- Sulfuration resistance: anti-sulfuration performance achieved through unique structure
- Reference standards: IEC 60115-6, JIS C 5201-8, JEITA RC-2133C
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ERA-8AEB471V#C4102536PANASONIC · 1206 | PANASONIC | 1206 | 95 | ₹37.97 · 95 in stock | View |
 | RT1206BRD07470RL#C870754YAGEO · 1206 | YAGEO | 1206 | 4,680 | ₹9.72 · 4,680 in stock | View |
| TNPW1206470RBEEA#C1712568VISHAY · 1206 | VISHAY | 1206 | 170 | ₹140.46 · 170 in stock | View | |
 | PTFR1206B470RP9#C351466RESI · 1206 | RESI | 1206 | 2,100 | ₹33.90 · 2,100 in stock | View |
 | CRF1206Q471BN#C54974052SIE · 1206 | SIE | 1206 | 4,970 | ₹7.04 · 4,970 in stock | View |
